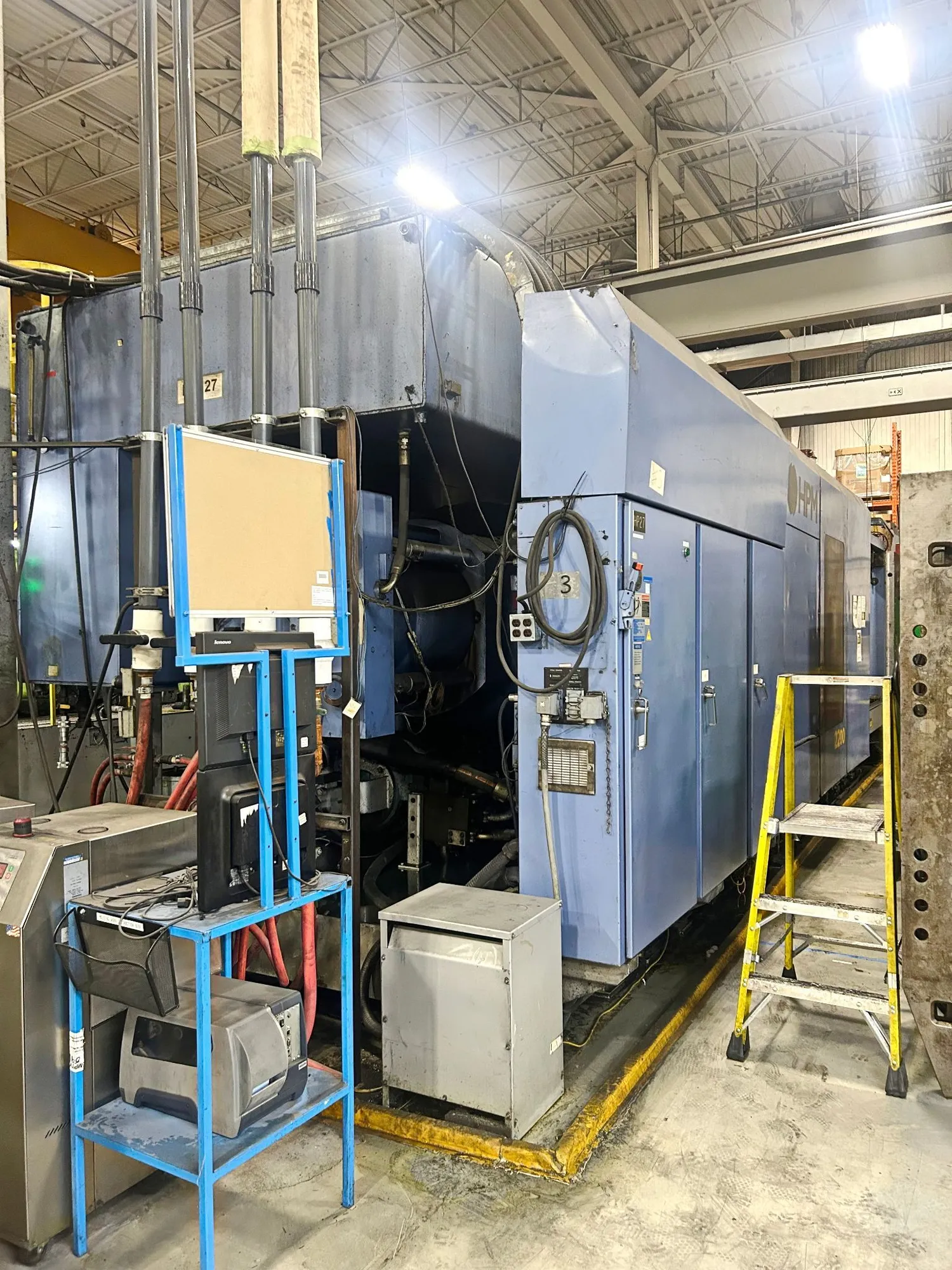

USED 1998 HPM MLH2200
USD $50,000.00
Overview
Description
1998 HPM 2200 Ton Hydraulic Injection Molding Machine, Command 9000 Microprocessor Control, Sepro Robot With Visual 3 Interface, 260 Oz General Purpose Barrel, High Pressure Injection System, Multiple Core Pull Circuits, Tie Bar Puller, Large Platen Configuration
Specifications
| Clamp Type | Hydraulic | Hydraulic |
|---|---|---|
| Tonnage | 2,200 T | 1,995.809 t |
| Min Mold Height | 49" | 1,244.6 mm |
| Horz/Vert | Horz | Horz |
| Tie Bar Distance | 72" X 63" | 72" X 63" |
| Overall Platen Size | 100" X 91" | 100" X 91" |
| Max Opening Stroke | 66" | 1,676.4 mm |
| Max Daylight | 115" | 2,921 mm |
| Ejector Stroke | 12" | 12" |
| Screw Dia | 5.236" | 5.236" |
| Screw Stroke | 26.142" | 26.142" |
| Injection Rate | 6.48 oz/sec. | 6.48 oz/sec. |
| Injection Screw Speed | 136 RPM | 136 RPM |
| Specific Injection Pressure | 27,000 PSI | 186,158.1 kPa |
| Core Pulls (Stationary/Movable) | 1 / 2 | 1 / 2 |
| Barrel Type | General Purpose | General Purpose |
| Screw Drive | Hydraulic | Hydraulic |
| Clamp Bolt Size | 1-1/4" - 7 NC | 1-1/4" - 7 NC |
| Locating Ring Diameter | 5" | 5" |
| Nozzle Radius | 0.5" | 12.7 mm |
| Control | Command 9000 | Command 9000 |
| Made In | United States | United States |
| Dimensions | 38' X 9' X 12' (approx). | 38' X 9' X 12' (approx). |
| Weight | 200,000 lb (approx). | 200,000 lb (approx). |
Equipped With
Sepro robot with Visual 3 interface
Command 9000 microprocessor control
260 oz general purpose barrel
2200 ton hydraulic clamp
High pressure injection system (27,000 PSI)
Multiple core pull circuits (1 stationary, 2 movable)
Tie bar puller
Robot interface
Large platen configuration
Hydraulic screw drive
Hydraulic injection unit
Safety light curtain
Floor mounted design
