Used 100 Liter 316L Stainless Steel Mixing Tank with Agitator & Pressure Rating

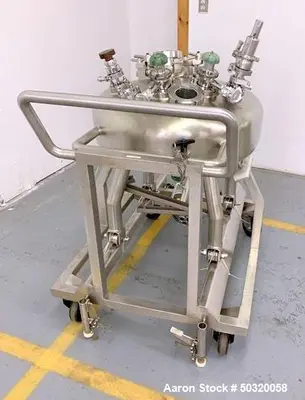

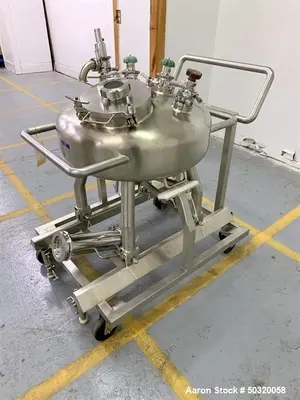

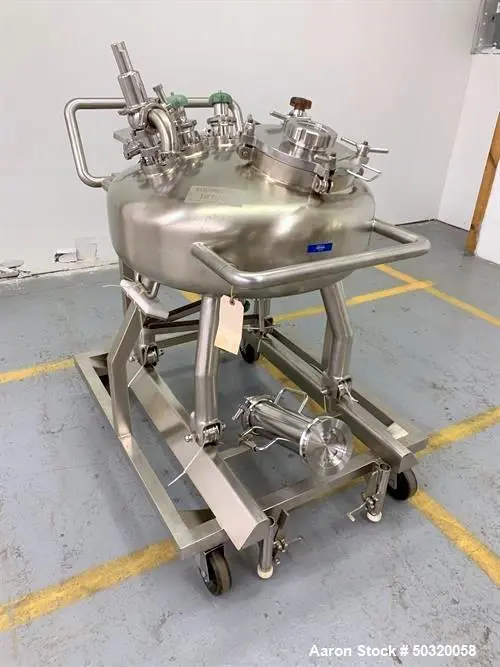

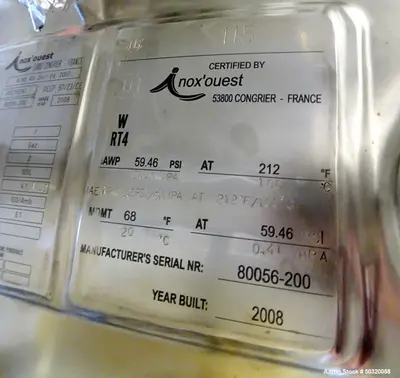

100 Liter 316L Stainless Steel Mixing Tank with Agitator & Pressure Rating, Vertical. Approximate 28" diameter x 2" straight side, dished top and bottom. Internal rated 59.46 psi at 20 to 212 degrees F. Bottom entering sanitary 4 blade agitator, requires motor/drive. Openings top: 10" with cover and 3" sight glass, 3" sight glass, (2) 2", (3) 1-1/2". 1-1/2" Tri-clamp center bottom outlet, approximate 24" discharge height. Mounted on (4) legs with casters. National Board# 115, Serial# 80056-200, Built 2008.

Used Equipment Facts About This Machine
Description:
This 100-liter Inox'ouest pressure mix tank is constructed from 316L stainless steel, ensuring superior corrosion resistance and durability. It features a vertical orientation with an approximate 28" diameter and 2" straight side, along with a dished top and bottom. The tank is designed for pressure-rated applications, with an internal pressure rating of 59.46 psi at 20 to 212°F.
The unit is equipped with a bottom-entering sanitary 4-blade agitator that requires a motor/drive (not included). It has multiple top openings, including:

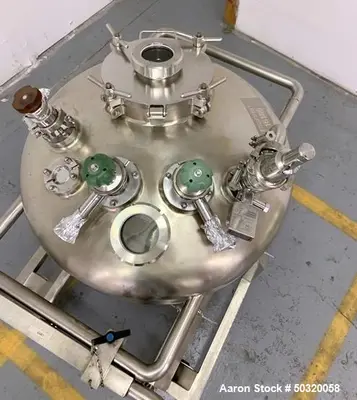

10" with cover and 3" sight glass
Additional (2) 2" and (3) 1-1/2" ports
1-1/2" Tri-clamp center bottom outlet

The approximate discharge height is 24 inches. The tank is mounted on four legs with casters, allowing for easy mobility and stability.
Specifications:

Capacity: 100 Liters

Material: 316L Stainless Steel

Orientation: Vertical

Diameter: Approx. 28 inches

Straight Side Height: 2 inches

Top & Bottom Shape: Dished

Pressure Rating: 59.46 psi

Temperature Range: 20°F to 212°F

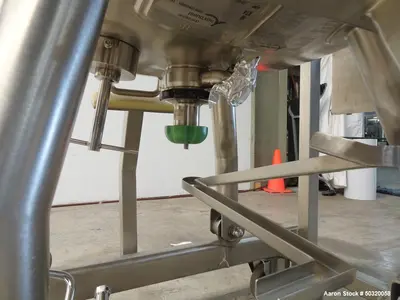

Agitation: Bottom-entering sanitary 4-blade agitator (motor/drive required)

Top Openings:

10" with cover and 3" sight glass
(2) 2" ports
(3) 1-1/2" ports

Outlet: 1-1/2" Tri-clamp center bottom outlet

Discharge Height: Approx. 24 inches

Mobility: Mounted on four legs with casters

Applications:
This Inox'ouest pressure mix tank is suitable for various industries requiring controlled mixing and pressure-rated processing, including:

Pharmaceutical manufacturing
Biotech and laboratory applications
Food and beverage production
Cosmetic and personal care processing
Chemical and specialty material mixing
Brewing and distillation processes

Compatible Products & Processes:

Liquid mixing and blending
Viscous product agitation
Pharmaceutical formulation
Fermentation and bioprocessing
Food-grade ingredient preparation
Cosmetic cream and lotion production
Chemical reaction processes
PRODUCT DETAILS


Used stainless steel mix tank
Inox'ouest pressure tank
100L stainless steel mixing vessel
Pharmaceutical processing tank
Sanitary mixing tank for sale
Industrial pressure mix tank
316L stainless steel mix tank with agitator
Used pressure-rated mixing vessel
Vertical 100-liter stainless steel tank
Food-grade stainless steel pressure tank
Sanitary mix tank with bottom outlet
Used 100-liter Inox'ouest stainless steel mixing tank with pressure rating
Pharmaceutical-grade 316L stainless steel pressure mix tank for sale
Sanitary vertical mixing vessel with bottom-entering agitator and casters
High-quality stainless steel processing tank for food, pharma, and cosmetics
