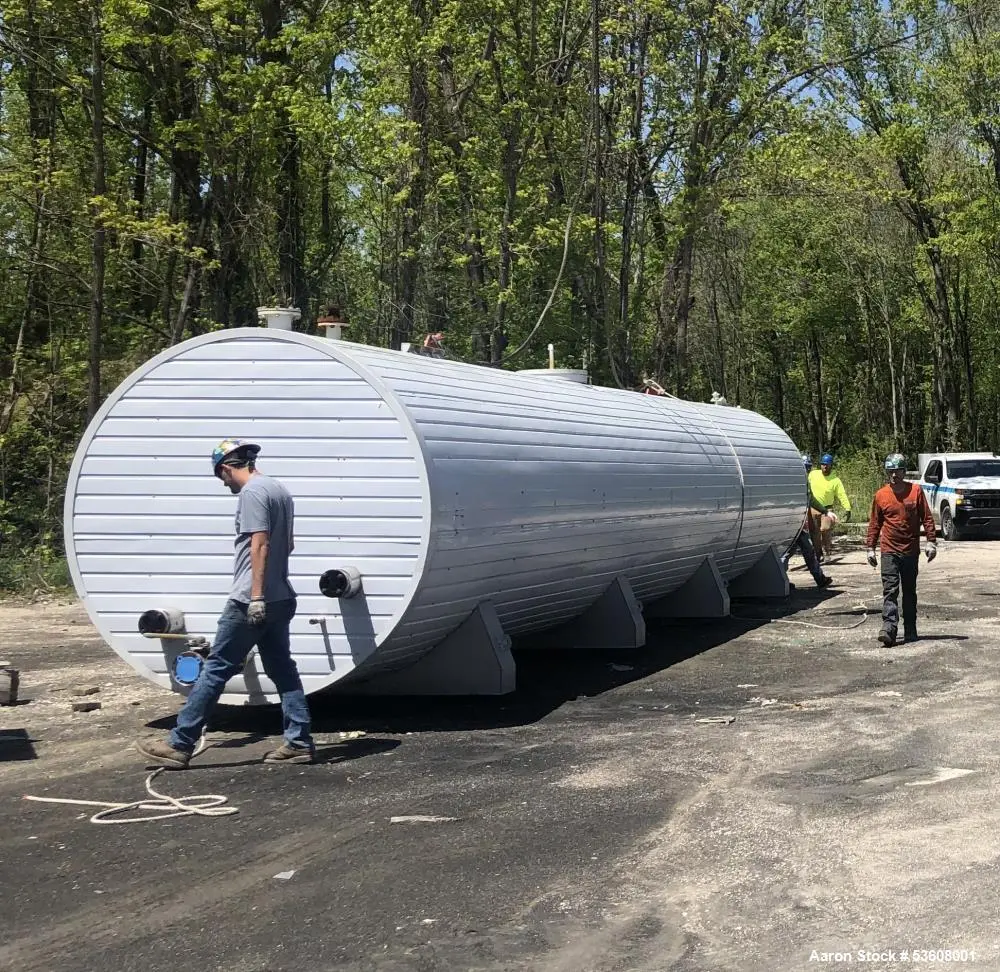

HMI ASI, 10,566 Gallon (40m3) Horizontal Tank

Used HMI ASI, 10,566 Gallon (40m3) Horizontal Tank, Carbon Steel. Approximate 82-5/8" diameter (2100mm) x 457" long (11,611mm). Heating coil volume .44m3. Body thickness 4mm, ends 6mm. Rockwool insulation, approximate 50mm thickness with sheathing. Approximate 5" side bottom outlet. Saddle mounted. Approximate 471" long x 87" wide x 104" tall.

Used Equipment Facts About This Machine
Description:
This HMI ASI 10,566-gallon horizontal carbon steel tank is designed for bulk liquid storage with temperature control. The tank features a built-in heating coil with a volume of 0.44m³, allowing for precise thermal regulation of stored contents.
The tank’s rockwool insulation (50mm thick) with protective sheathing ensures efficient heat retention and minimizes energy loss. Constructed with a 4mm thick body and 6mm thick ends, this tank offers durability and corrosion resistance for industrial storage applications.
The tank is saddle-mounted for stability and structural support, with an approximate 5" side bottom outlet for controlled discharge.
Specifications:

Capacity: 10,566 Gallons (40m³)

Material: Carbon Steel

Orientation: Horizontal

Dimensions:

Diameter: 82-5/8” (2100mm)

Length: 457” (11,611mm)

Overall Dimensions: 471” Long x 87” Wide x 104” Tall

Heating Coil Volume: 0.44m³

Wall Thickness:

Body: 4mm

Ends: 6mm

Insulation: 50mm Rockwool with Protective Sheathing

Outlet: 5” Side Bottom Outlet

Mounting: Saddle Mounted

Condition: Used

Applications:
This industrial-grade horizontal storage tank is suitable for temperature-sensitive liquids and bulk liquid storage across multiple industries:

Chemical Processing – Storing and heating bulk chemicals

Oil & Gas Industry – Storing crude oil, lubricants, and petroleum-based products

Food & Beverage Processing – Storing edible oils, syrups, and liquid ingredients

Pharmaceutical & Biotech – Temperature-sensitive storage of liquid formulations

Water & Wastewater Treatment – Storing process water, sludge, and treatment chemicals

Agriculture & Fertilizer Storage – Storing liquid fertilizers, pesticides, and agrochemicals

Power Generation & Boiler Systems – Pre-heating feedwater and thermal fluid storage

Industrial Manufacturing – Storing and heating specialty industrial fluids

What Products Would This Be Used For?
This horizontal insulated tank is suitable for processing and storing:

Industrial chemicals and specialty fluids
Heating and storing lubricants, oils, and fuels
Edible oils and liquid food ingredients
Water treatment and wastewater storage
Fertilizers, pesticides, and agricultural chemicals
Petroleum-based products such as diesel, crude oil, and heating fluids
Boiler feedwater and thermal transfer fluids
Process liquids requiring controlled temperatures
