3000 Gallon Samuel Pressure Group Horizontal Carbon Steel Pressure Tank.
Overview
Description

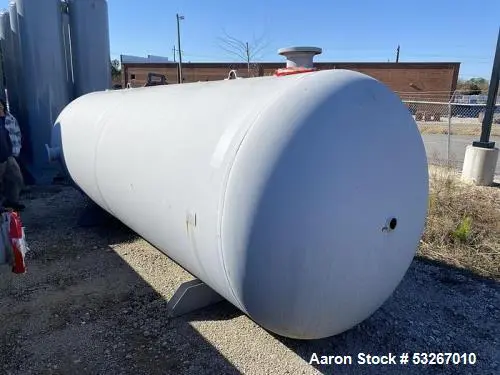

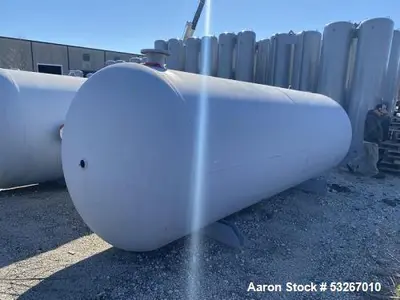

Unused- 3000 Gallon Samuel Pressure Group Horizontal Carbon Steel Pressure Tank. 66" diameter X 214" OAL. Internal rated 165 PSI @ -20 to 400 F. Code Stamped. Dished ends Top side has two lifting lugs, (2) 1/2" NPT, (1) 3" NPT, and (1) 6" flanged fitting. One end has 12" X 16" manway, opposite has center 2" NPT. (1) 6" side flanged opening. (1) 1" bottom end drain. Mounted on saddles. Weight 5500#. Built 2022.
Specifications
Used Equipment Facts About This Machine
Manufacturer Information
Brand: Samuel Pressure Group
Condition: Unused
Year Built: 2022
Capacity: 3,000 Gallons
Material: Carbon Steel

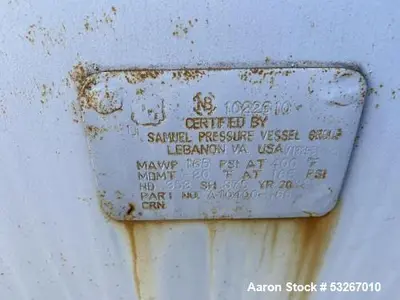

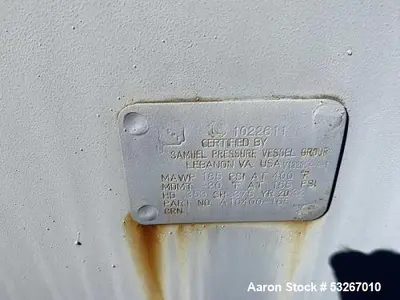

Code Stamped: Yes
Description
This unused 3,000-gallon horizontal pressure tank, manufactured by Samuel Pressure Group, is a high-pressure, heavy-duty vessel designed for industrial applications. Built with carbon steel construction, this tank is internally rated for 165 PSI at -20°F to 400°F, making it suitable for various pressurized liquid and gas storage applications.
The tank features dished ends for structural integrity and is mounted on saddles for stability. The top side includes lifting lugs for easy transportation and installation.
Tank Openings & Fittings
Top Side:
(2) ½” NPT Openings
(1) 3” NPT Opening
(1) 6” Flanged Fitting
Ends:
One End: 12” x 16” Manway
Opposite End: 2” NPT Center Opening
Side Openings:
(1) 6” Flanged Side Opening
Bottom Drain:
(1) 1” Bottom End Drain
The tank weighs 5,500 lbs and measures 66” diameter x 214” overall length (OAL).
Specifications
Total Capacity: 3,000 Gallons
Material: Carbon Steel
Tank Orientation: Horizontal
Tank Dimensions:
Diameter: 66”
Overall Length: 214”
Pressure Rating: 165 PSI @ -20°F to 400°F
Ends: Dished Ends
Mounting: Saddles
Weight: ~5,500 lbs
Applications
Compressed Air & Gas Storage – Industrial air receiver and pressure vessel applications
Chemical & Industrial Processing – High-pressure liquid and gas containment
Oil & Gas Industry – Storage of petroleum-based products under pressure
Water Treatment & Utilities – Pressurized water storage and filtration systems
Manufacturing & Engineering – Process control systems requiring pressure regulation
