Unused - Simco DH2 Series Vibratory Screener, Model 7220-1D-HD2

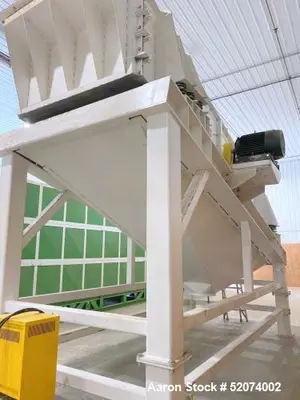

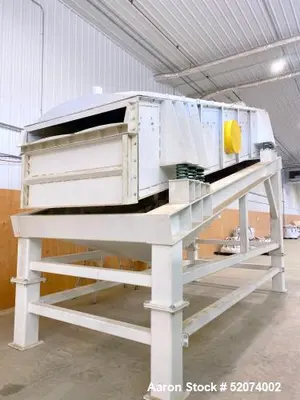

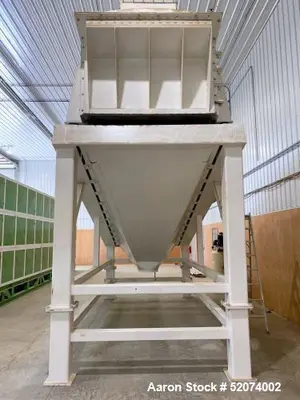

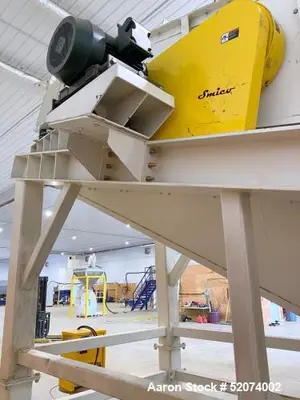

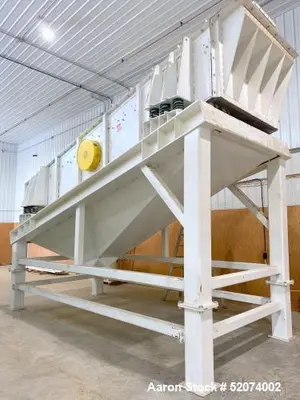

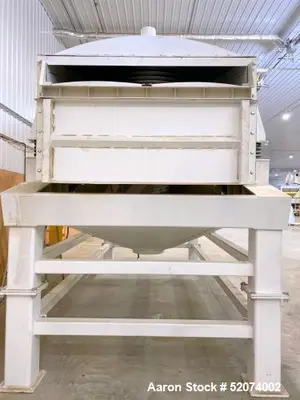

Unused - Simco DH2 Series Vibratory Screener, Model 7220-1D-HD2. It is a two bearing declined screener that uses a brute-force counterweight drive. The unit is equipped with a TEFC 480 volt 3 phase 60 Hz motor. Food grade construction throughout, and is provided with an accessible hinged feed box, and fully covered screening deck with nuisance dust takeoff port. The unit provides a single cut and has a double crowned screening deck utilizing 6 wire screens for a total screening area of 72"x20. A ball deck is equipped for continued screen deblending. All fines are transferred to the collection hopper with discharge spout that can be connected to additional process equipment or conveyors. Mounted on a frame. Built 2019. Our freight specialists can assist you with door to door transportation and all customs documents needed to make the process go as smoothly as possible

Used Equipment Facts About This Machine
Description
The Simco DH2 Series Vibratory Screener is an industrial-grade screening solution engineered for high-performance material separation. This two-bearing declined screener uses a brute-force counterweight drive and is powered by a robust TEFC 480V 3-phase 60Hz motor. Its food grade construction makes it ideal for hygienic environments, while features such as an accessible hinged feed box and a fully covered screening deck with a nuisance dust takeoff port enhance operational efficiency. The unit provides a single cut with a double crowned screening deck utilizing six wire screens, offering a total screening area of 72"x20". An integrated ball deck ensures continuous screen deblending, and all fines are transferred to a collection hopper via a discharge spout that can be connected to additional process equipment or conveyors. Mounted on a sturdy frame and built in 2019, this screener delivers durability and reliable performance for diverse industrial applications.
Specifications

Drive System: Brute-force counterweight drive

Bearing Configuration: Two-bearing declined screener

Motor: TEFC 480V 3-phase, 60Hz

Construction: Food grade

Feed Box: Accessible hinged design

Screening Deck: Fully covered with nuisance dust takeoff port

Cut Type: Single cut

Screening Deck Design: Double crowned with six wire screens (Total area: 72"x20")

Additional Feature: Ball deck for continued screen deblending

Fines Handling: Collection hopper with discharge spout for connection to additional process equipment or conveyors

Mounting: On a robust frame

Year Built: 2019

Applications
Ideal for industries that require efficient and reliable material separation:

Food processing and packaging
Chemical and pharmaceutical processing
Mining and aggregate production
Industrial manufacturing and material handling

What Products Would This Be Used For

Bulk material separation
Screening of food-grade products
Fine material deblending
Granular and powder screening
Material classification in processing plants
Pre-processing of aggregates and minerals
