USED HEWITT ROBBINS VSG-05214-01

Manufacturer Info:

Manufacturer: Hewitt Robins

Model: VSG-05214-01

Series: V14 Screening Plant

Type: Vibratory Screening Plant

Condition: Used

Description:

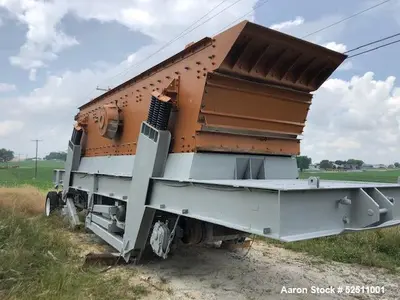

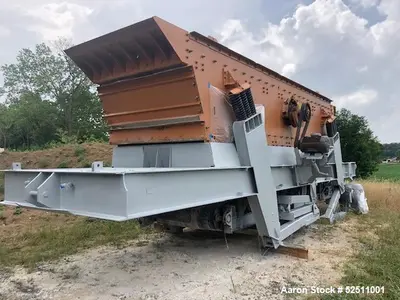

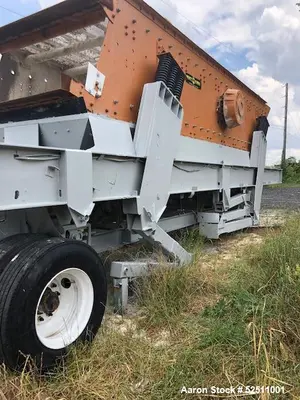

This is a used Hewitt Robins 6' x 24' V14 Screening Plant, model VSG-05214-01, capable of separating material into three sizes. It is powered by a 30 HP 3-phase motor. The current screen configuration includes a heavy-duty 2" screen on the top deck and 3/8" Veno-harp screens on the lower deck. Fines are discharged to a wide belt conveyor driven by a 10 HP motor, and the unit includes a 20" x 36" conveyor magnet with 2-15/16" shaft. The plant collapses for hauling, is equipped with new tires, and pulls with a 5th wheel.
Transport dimensions are 10' wide x 30' long x 134" high. Last used on soft powder materials.

Specifications:

Screen Size: 6’ wide x 24’ long

Model: VSG-05214-01

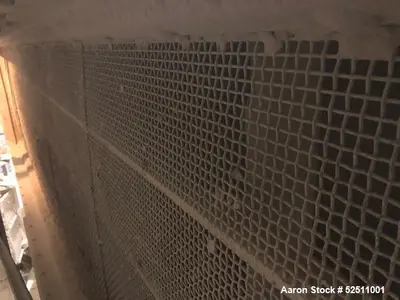

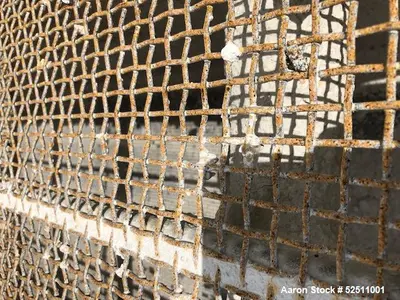

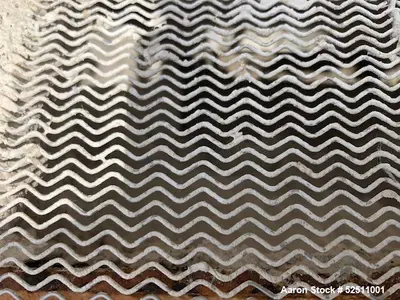

Decks: Two (Top: 2" screen; Lower: 3/8" Veno-harp screens)

Separation Capability: 3 sizes

Main Motor: 30 HP, 3-phase

Discharge Belt Motor: 10 HP

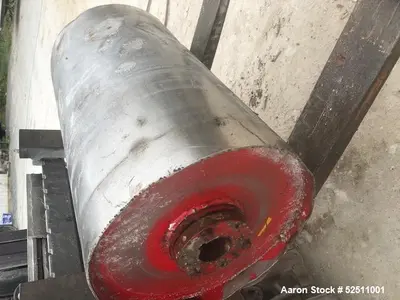

Conveyor Magnet: 20" x 36", 2-15/16" shaft

Mobility: Collapsible for transport

Tires: New

Hitch Type: 5th Wheel

Transport Dimensions: 10’ W x 30’ L x 134” H

Last Used: Soft powder materials

Applications:

Quarry and aggregate screening

Soil and compost sizing

Powder and fines classification

Sand and gravel separation

Demolition waste screening

Fertilizer and feed material grading

Light-duty mining material processing

Coal and soft ore screening

Industrial material recovery

Road base and fill material screening

What might this be used for?:
This portable screening plant is well-suited for contractors, recyclers, and aggregate operations looking for mobile screening power with 3-size sorting ability. Perfect for on-site processing of soil, aggregate, powders, light ore, and soft materials with the convenience of 5th wheel towing and fold-up design for transport.
