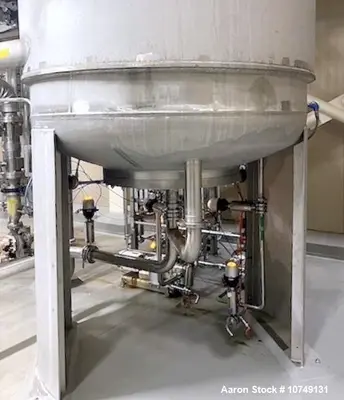

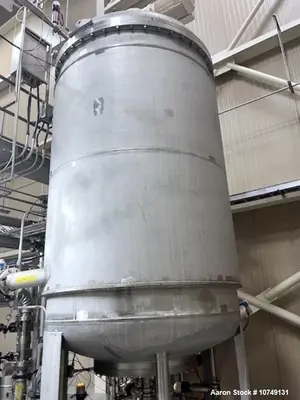

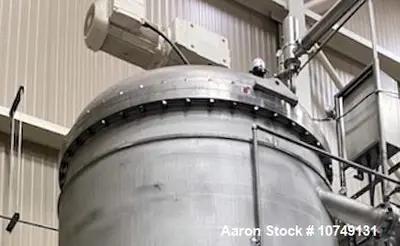

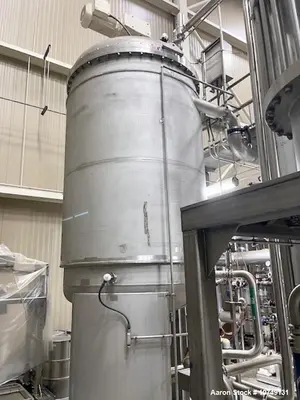

Used 3000 Gallon Stainless Steel 1st Stage Crystallizer

Used 3000 Gallon Stainless Steel 1st Stage Crystallizer, 6'6" diameter x 9'6" T/T. 304L Stainless Steel Shell Material, 304L Stainless Steel (Sanitary Polished Internal) Jacket Material. Vertical. 43.5 psi @ 203 deg. F. both shell and jacket. Mfg. by SRI (Special Restvrijstaal Industrie BV) Designed by GEA Messo PT. Built in 2013. Flanged bolted dished top and welded dished bottom heads. On skirt and leg supports. Conventional jacket type. With center top mounted, internal sweep side scraper and internal bottom mounted shaft steady bearing agitator. Nozzles are sanitary clamped. ALLOY : S; GALLONS : 3000; DIA/WIDTH (FT'IN") : 6'6"; LENGTH (FT'IN") : 9'6"; SHELL PSI : 43.5; SHELL TEMP DEG. F : 203; V/H : V; SHELL MATERIAL : 304LSS; CODE : NB; WALL : 15/32"; JKT/COIL PSI : 53.5; JKT/COIL TEMP DEG. F : 203; JKT/COIL MATERIAL : 304LSS SANITARY POLISHED INTERNAL; AGITATED Y/N : Y; TOP HEAD : FLANGED BOLTED DISHED; BOTTOM HEAD : WELDED DISHED;

Used Equipment Facts About This Machine
Description:
This 3,000-gallon 1st Stage Crystallizer is a high-performance, jacketed vertical vessel designed for precise crystallization and solid-liquid separation in pharmaceutical, food, and chemical industries.
Constructed from 304L stainless steel, both the shell and jacket are rated for 43.5 PSI at 203°F, making it ideal for controlled temperature processing. The interior features a sanitary-polished finish, ensuring hygienic processing conditions for food, pharmaceutical, and specialty chemical applications.
The vessel is vertically oriented with a flanged bolted dished top head and welded dished bottom head, allowing for secure containment and structural integrity. Mounted on a skirt and leg supports, this crystallizer is stable and durable for industrial processing.
Equipped with an internal sweep side scraper agitator and a bottom-mounted shaft steady bearing, this system ensures consistent crystal formation and efficient material processing. All nozzles are sanitary-clamped, making the unit suitable for high-purity processing requirements.
Specifications:

Capacity: 3,000 Gallons

Material: 304L Stainless Steel (Sanitary Polished Internal)

Orientation: Vertical

Shell Dimensions: 6'6" Diameter x 9'6" T/T

Pressure Rating (Shell & Jacket): 43.5 PSI @ 203°F

Wall Thickness: 15/32"

Jacket Type: Conventional Jacket

Top Head: Flanged Bolted Dished

Bottom Head: Welded Dished

Mounting: On Skirt & Leg Supports

Agitation System:

Internal Sweep Side Scraper Agitator
Bottom-Mounted Shaft Steady Bearing

Connections: Sanitary Clamped Nozzles

Condition: Used (Built in 2013)

Applications:
This crystallizer system is designed for precise crystallization and solid-liquid separation, making it ideal for industries such as:

Pharmaceutical & Biotechnology – API crystallization, controlled precipitation processes

Food & Beverage Processing – Sugar crystallization, dairy product processing

Chemical Processing – Purification of fine chemicals, salts, and high-purity compounds

Water Treatment & Desalination – Crystallization for brine concentration and water purification

Petrochemical & Refinery – Purification of specialty chemicals and hydrocarbons

Nutraceuticals & Supplements – Processing of plant extracts and bioactive compounds

Cosmetic & Personal Care Industry – Crystallization of ingredients for high-end formulations

What Products Would This Be Used For?
This industrial crystallizer is suitable for processing:

Pharmaceutical-grade Active Pharmaceutical Ingredients (APIs)
Sugar and sweetener crystallization
Purification of high-value chemical compounds
Salt and mineral crystallization
Biochemical and nutraceutical product refinement
Wastewater and brine treatment for crystallized solids recovery
Petrochemical and specialty chemical purification
High-purity cosmetic ingredient processing
