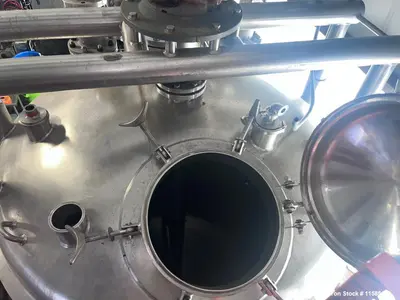

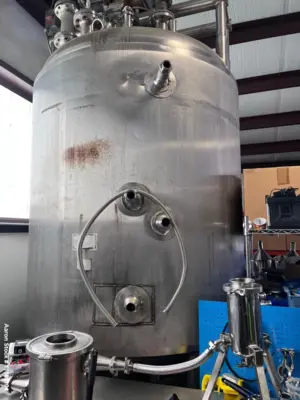

APV Crepaco approx 1500 gallon T316L stainless steel dimple jacket reactor

Manufacturer Info:

Manufacturer: APV Crepaco

Capacity: Approx. 1,500 Gallons

Internal Material: T316L Stainless Steel

Jacket Material: T304 Stainless Steel (Dimple Jacket)

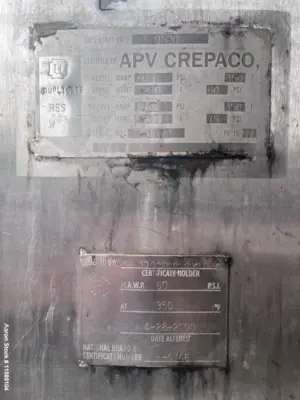

National Board Number: 9520

Serial Number: K1972

Condition: Used

Description:
This used APV Crepaco 1,500-gallon stainless steel reactor features T316L stainless steel internal construction and a T304 stainless steel dimple jacket, engineered for high-performance mixing and thermal regulation.
The internal vessel is rated 60 PSI @ 350°F, and the dimple jacket is rated 75 PSI @ 350°F, allowing for both heating and cooling via fluid circulation. The reactor features a 72" diameter, dished top and bottom heads, and a bridge-mounted sweep scraper agitator, powered by a 10 HP motor, for effective agitation of viscous or temperature-sensitive materials. A baffle is also installed for enhanced mixing.

Specifications:

Capacity: Approx. 1,500 Gallons

Internal Material: T316L Stainless Steel

Jacket Material: T304 Stainless Steel (Dimple Jacket)

Internal Pressure Rating: 60 PSI @ 350°F

Jacket Rating: 75 PSI @ 350°F

Diameter: 72"

Head Design: Dished top and bottom

Agitation System:

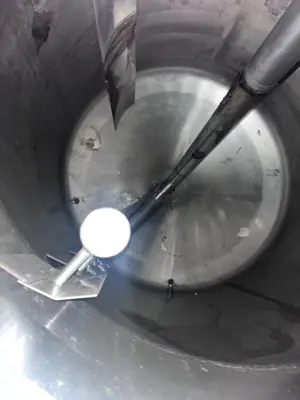

Bridge-mounted agitator

Sweep scraper design for sidewall and bottom head

10 HP motor

Additional Features:

Internal baffle

National Board Number: 9520

Serial Number: K1972

Condition: Used

Applications:

Dairy and food processing

Pharmaceutical formulation

Cosmetic and personal care product mixing

Nutraceutical suspensions

Creams, lotions, gels, and pastes

Viscous material agitation

Controlled heating and cooling of process media

High-purity chemical batch preparation

Emulsification or homogenization (with additional shear)

Sanitary liquid processing

What might this be used for?:
This vessel is ideal for food, dairy, pharmaceutical, and high-purity industries that require thermal control, sanitary construction, and thorough agitation for viscous or heat-sensitive materials. The sweep agitator with baffle ensures even product mixing and prevents scorching on heated surfaces.
