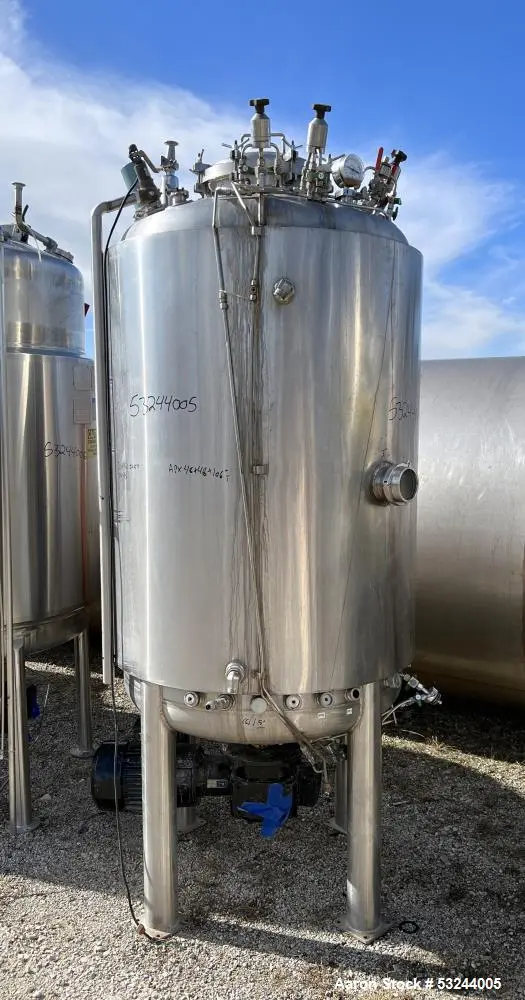

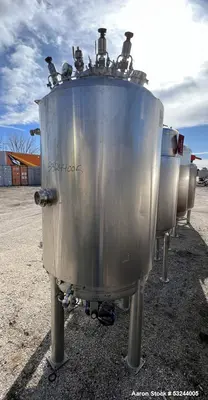

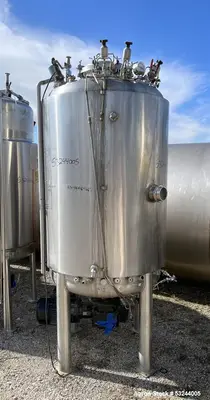

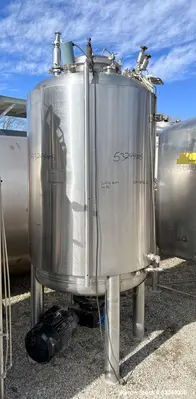

IAF 300 Gallon 316 Stainless Steel Agitated Fermentor / Reactor

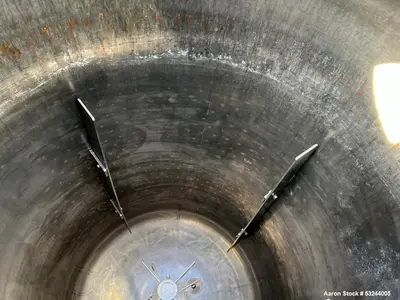

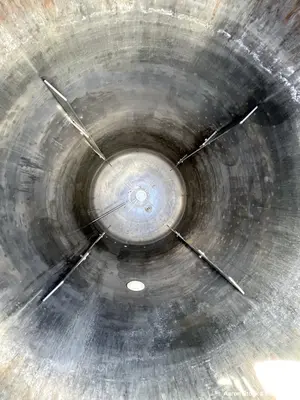

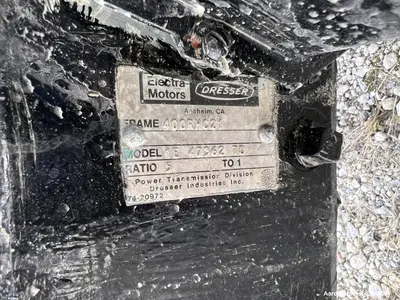

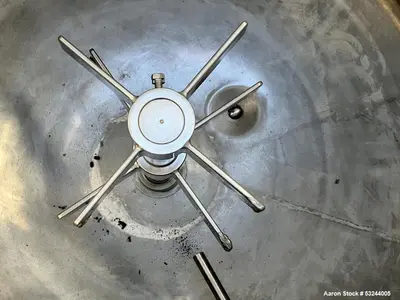

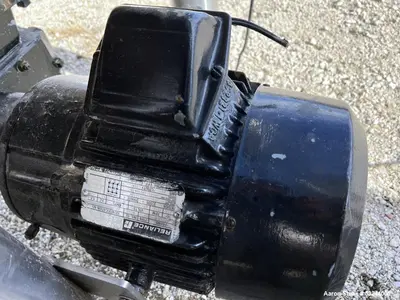

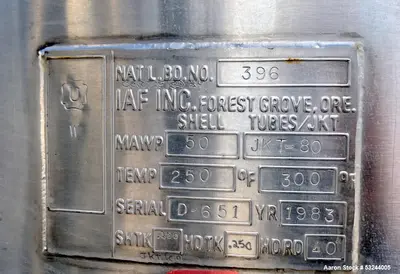

Used IAF Fermentor / Reactor, Approximate 300 Gallons, 316 Stainless Steel. Approximate 40" diameter X 55" Straight Side. Dished top and bottom. Internal rated 50 psi at 250 degrees F. 304 Stainless steel jacket rated 80 psi at 300 degrees F. Bottom center entering dual 4-blade impeller agitator. Driven by a 7.5hp, 3/60/230/460 volt, 1755rpm motor through reducer, 5:1 ratio. Openings top: Approximate 14" manway with cover, 4", (2) 3", (3) 1-1/2", 1", (3) 1/2", (2) 3/4", side: 3" with sight glass, (7) 1-1/2", (2) 1/2", 8" for agitator. 1" Bottom outlet, with 20" discharge height. (4) fixed sidewall baffles. Mounted on (4) legs. Serial# D-651, National Board# 396.

Used Equipment Facts About This Machine
1. General Information
The IAF Fermentor / Reactor is a 300-gallon vessel designed for fermentation, reaction, and processing applications. Constructed from 316 stainless steel for the internal tank and 304 stainless steel for the jacket, it is well-suited for handling corrosive materials, maintaining cleanliness, and providing precise temperature control through its jacket. The tank is equipped with a dual 4-blade impeller agitator for efficient mixing and agitation, supported by a powerful motor and reducer for variable speed control. Its robust construction, extensive connections, and integrated baffles make it highly versatile for various industries.
Key Features:

316 Stainless Steel Interior: Corrosion resistance and compatibility with a wide range of materials.

304 Stainless Steel Jacket: Rated for 80 psi at 300°F, allowing for effective heating or cooling.

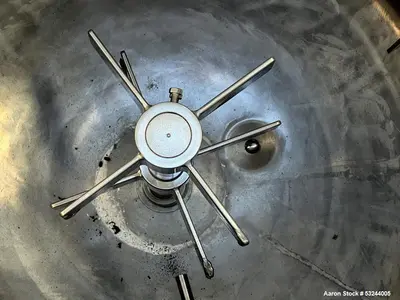

Dual 4-Blade Impeller Agitator: Ensures uniform mixing and agitation.

Multiple Access Points: Comprehensive top and side openings for process flexibility.

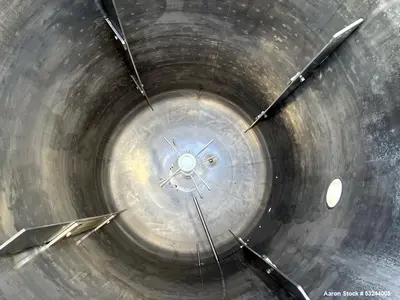

Fixed Sidewall Baffles: Enhance mixing efficiency by disrupting vortex formation.

2. Specifications

Parameter
Details

Capacity
300 gallons

Material (Internal)
316 Stainless Steel

Material (Jacket)
304 Stainless Steel

Orientation
Vertical

Dimensions
Approx. 40" diameter x 55" straight side

Head Design
Dished top and bottom

Internal Pressure Rating
50 psi at 250°F

Jacket Pressure Rating
80 psi at 300°F

Agitator Type

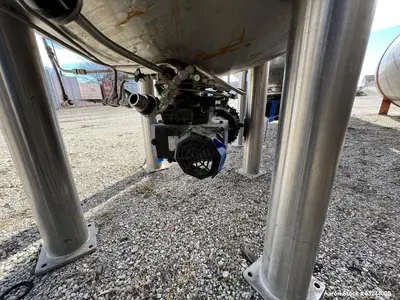

Dual 4-blade impeller, bottom center entering

Agitator Drive

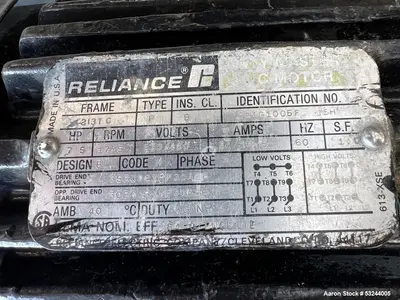

7.5 HP motor, 3-phase, 60 Hz, 230/460 Volt, 1755 RPM with 5:1 reducer

Top Openings

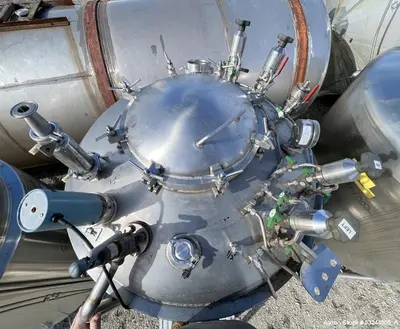

- Approx. 14" manway with cover

| Bottom Outlet | 1" outlet with 20" discharge height | | Baffles | (4) fixed sidewall baffles | | Mounting | Mounted on (4) legs | | Serial Number | D-651 | | National Board Number | 396 |

3. Applications
The IAF Fermentor / Reactor is ideal for a wide variety of industrial and commercial applications requiring precise mixing, heating, cooling, and pressure control:

Biotechnology:

Fermentation processes for microorganisms, enzymes, or other biological products.
Cell culture production.

Pharmaceuticals:

Reactors for chemical synthesis.
Mixing and maintaining sterile environments for drug manufacturing.

Chemical Processing:

Synthesis and reaction of chemical compounds.
Precise heating, cooling, and pressure control for exothermic or endothermic reactions.

Food & Beverage:

Fermentation processes for products such as beer, wine, and dairy cultures.
Processing of viscous materials or heat-sensitive ingredients.

Cosmetics:

Blending and processing creams, lotions, and other formulations.

Industrial Applications:

Production of adhesives, polymers, and specialty chemicals.
