Used Gaspar 30-Gallon Reactor – 316L SS, 150 PSI, 5 HP Chemineer Agitator

Manufacturer Information:

Brand: Gaspar

Capacity: 30 Gallons

Material: 316L Stainless Steel

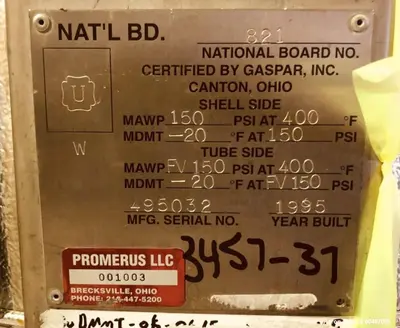

Serial Number: 495032

National Board Number: 821

Description:

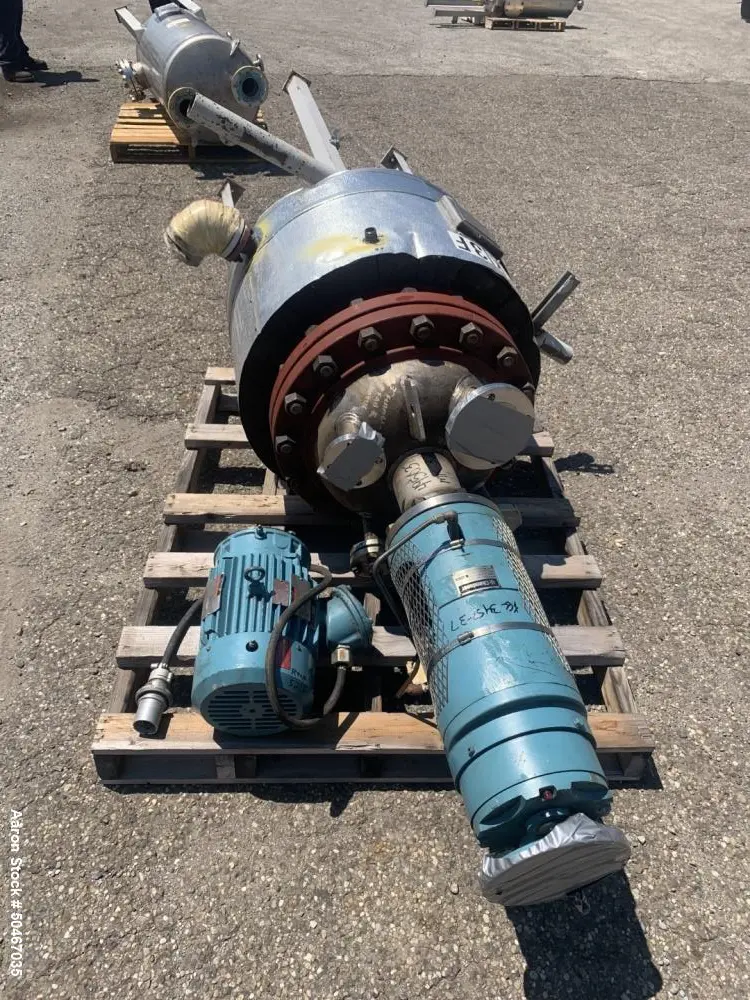

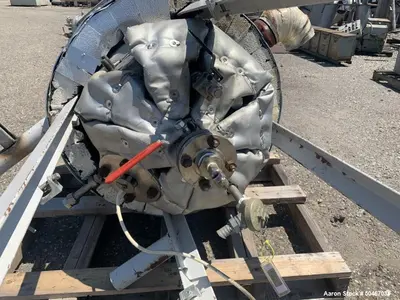

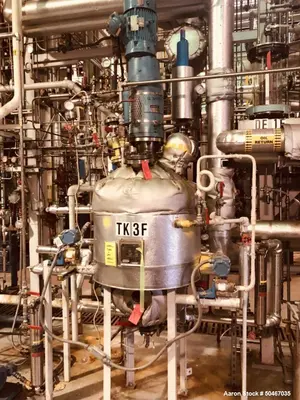

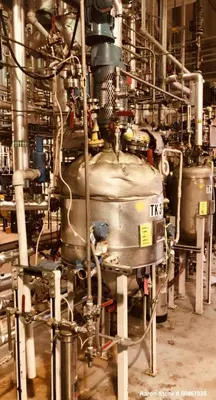

This Gaspar 30-Gallon Reactor is a high-quality, jacketed stainless steel reaction vessel, ideal for chemical, pharmaceutical, and industrial processing. Constructed from 316L stainless steel, it features a 24” diameter x 24” straight side, an elliptical removable top, and an elliptical dish bottom for durability and efficient product flow.

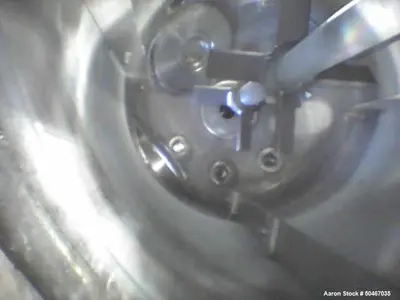

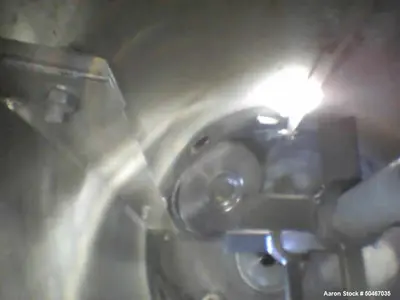

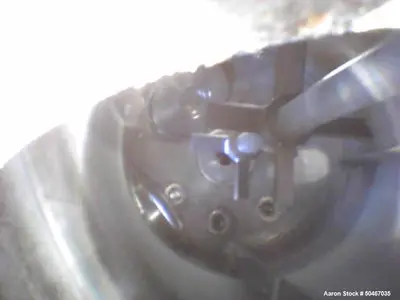

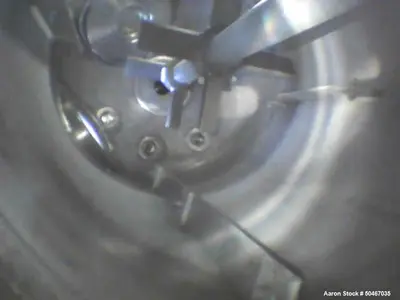

The internal chamber is rated for 150 PSI and full vacuum at 400°F, ensuring high-performance processing capabilities. The jacketed design supports precise temperature control, also rated for 150 PSI at 400°F.

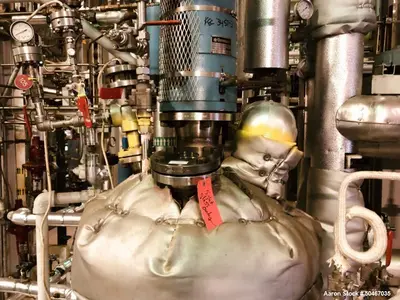

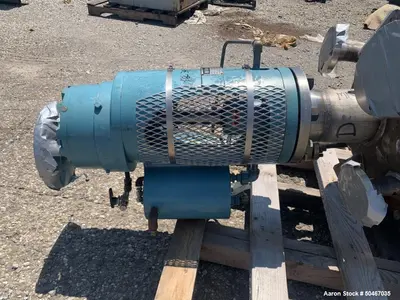

Equipped with a top-mounted 5 HP Chemineer agitator drive with a mechanical seal, this reactor ensures efficient mixing and blending. Powered by a 230/460V explosion-proof (XP) motor, the unit is mounted on four painted carbon steel legs for stability and ease of use.

Specifications:

Capacity: 30 Gallons

Construction Material: 316L Stainless Steel

Dimensions: Approx. 24” Diameter x 24” Straight Side

Top: Elliptical Removable

Bottom: Elliptical Dish

Internal Rating: 150 PSI & Full Vacuum at 400°F

Jacket Rating: 150 PSI at 400°F

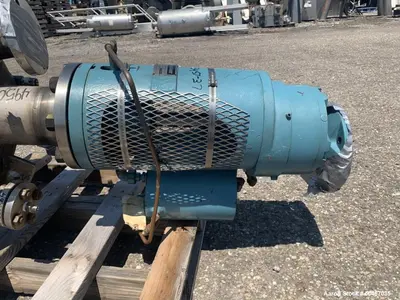

Agitator: 5 HP Chemineer Agitator Drive with Mechanical Seal

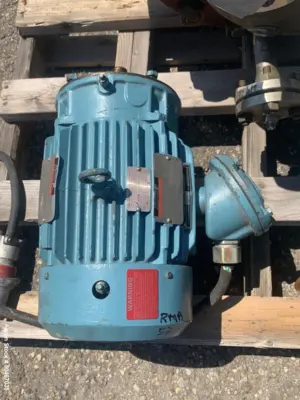

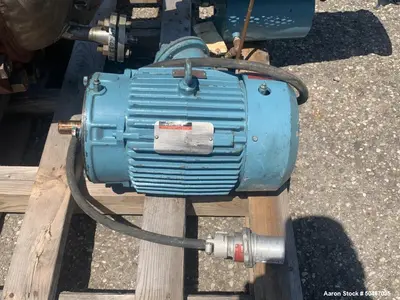

Motor: 230/460V Explosion-Proof (XP) Motor

Outlet: Center Bottom Outlet

Mounting: Four Painted Carbon Steel Legs

Applications:

Pharmaceutical Industry – Mixing and reaction of active ingredients

Chemical Processing – High-pressure and vacuum chemical reactions

Food & Beverage Industry – Controlled blending and emulsification

Cosmetics & Personal Care – Homogenization of lotions and creams

Petrochemical & Industrial Use – Heat-sensitive and high-pressure processing

Compatible Products:

Reactants for chemical synthesis
Pharmaceutical and biotech formulations
Cosmetic and personal care products
Food and beverage mixing applications
Industrial-grade emulsions and dispersions
