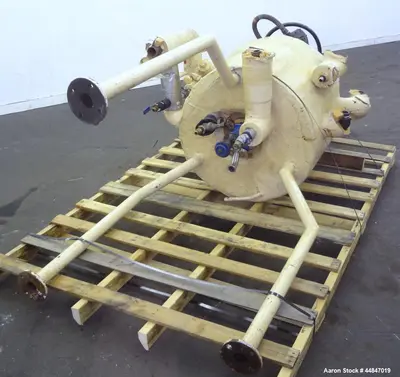

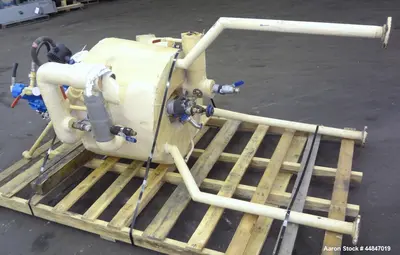

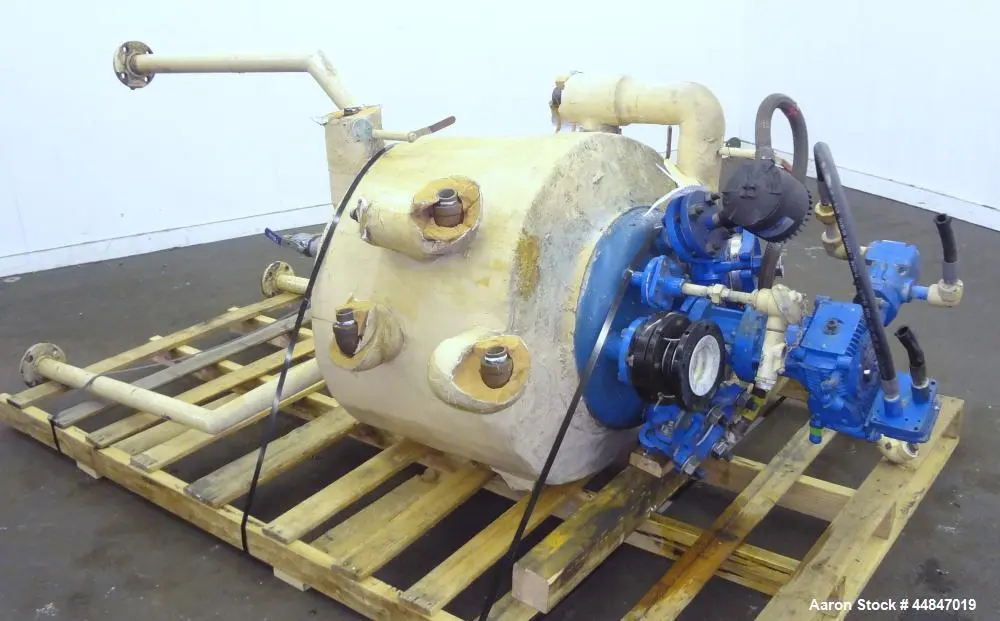

Used Pfaudler 20-Gallon Reactor – 316 Stainless Steel, Vertical | Pressure-Rated Industrial Reactor with Anchor Agitator

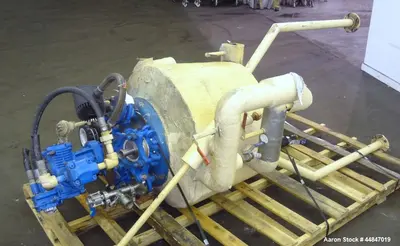

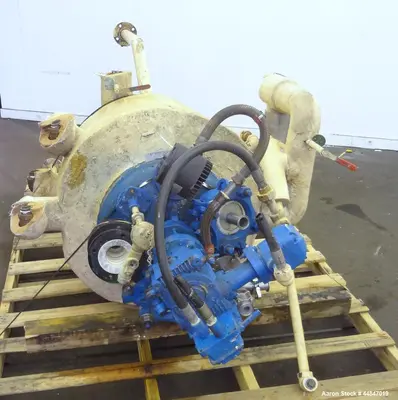

Used Pfaudler Reactor, 20 Gallon, 316 Stainless Steel, Vertical. Approximately 18" diameter x 18" straight side, dished top and bottom. Internal rated 60 psi or full vacuum at 350 degrees F, carbon steel jacket rated 90 psi at 350 degrees F. Anchor style agitator blade, driven by a Pfaudler drive, size 2.5 TWV, model SV-48270C-AKC, serial #25032X, ratio 5 to 1, set up for hydraulic drive, connection for drive broken off and missing, no power pack. Openings: top, 1", 1-1/2", (3) 2", (2) 4" hand holes; 2" center bottom outlet. Mounted on 3 carbon steel legs. National Board #28175, serial #E369-1492.

Used Equipment Facts About This Machine
Manufacturer:
Pfaudler
Description:
The Used Pfaudler 20-Gallon Reactor is a high-quality 316 stainless steel vertical reactor designed for industrial mixing and chemical processing. With an 18” diameter x 18” straight-side chamber, dished top, and bottom, this reactor is built for durability and high-performance processing.

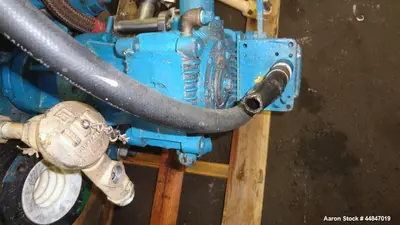

Internally rated at 60 PSI or full vacuum at 350°F, it also features a carbon steel jacket rated for 90 PSI at 350°F, ensuring precise temperature control. The unit includes an anchor-style agitator blade, driven by a Pfaudler drive (Size 2.5 TWV, Model SV-48270C-AKC, Ratio 5:1), but is set up for hydraulic drive with the connection for the drive missing and no power pack included.
The reactor has multiple top openings for versatile processing needs and a 2” center bottom outlet for efficient discharge. Mounted on three carbon steel legs for stability.
Specifications:

Brand: Pfaudler

Type: Vertical Reactor

Capacity: 20 Gallons

Material: 316 Stainless Steel

Chamber Dimensions: 18” Diameter x 18” Straight Side

Internal Rating: 60 PSI or Full Vacuum at 350°F

Jacket Rating: 90 PSI at 350°F (Carbon Steel)

Agitator: Anchor Style

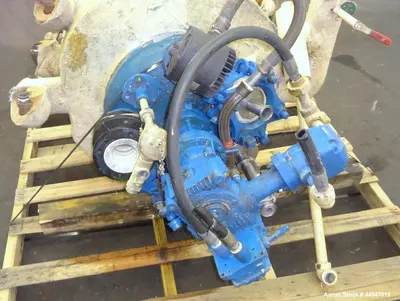

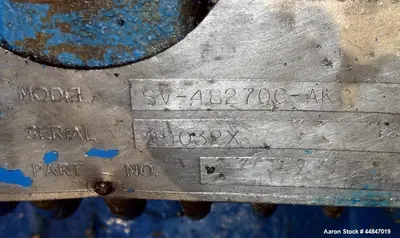

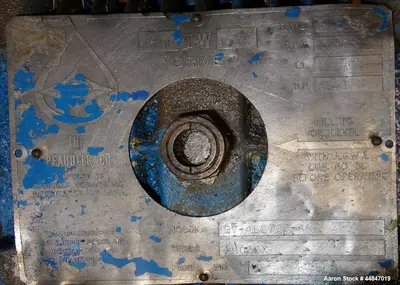

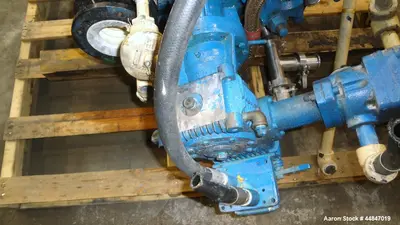

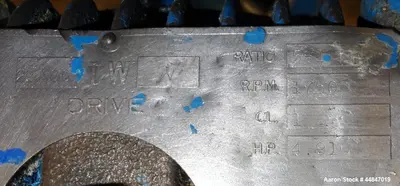

Drive System: Pfaudler Drive, Size 2.5 TWV, Model SV-48270C-AKC, Ratio 5:1

Drive Setup: Hydraulic (Connection Missing, No Power Pack)

Openings:

Top: 1” (x1), 1.5” (x1), 2” (x3), 4” Hand Holes (x2)
Bottom: 2” Center Outlet

Mounting: 3 Carbon Steel Legs

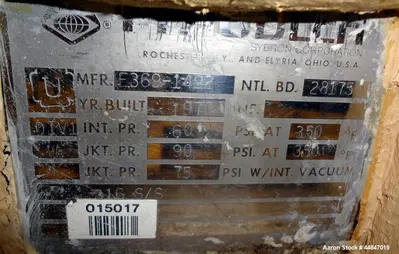

National Board Number: 28175

Serial Number: E369-1492

Applications:

Chemical processing
Pharmaceutical and biotech production
Food and beverage mixing
Specialty coatings and adhesives
Pilot plant and R&D operations

Compatible Products & Industries:

Chemical manufacturing plants
Pharmaceutical formulation labs
Research and development facilities
Food and beverage production lines
Resin and polymer processing
