USED PRECISION STAINLESS 30 LITER

Manufacturer Information:

Brand: Precision Stainless

Type: Reactor

Capacity: 30 Liters (7.92 Gallons)

Material: 316L Stainless Steel (Internal), 304L Stainless Steel (Jacket)

Serial #: 981172-15

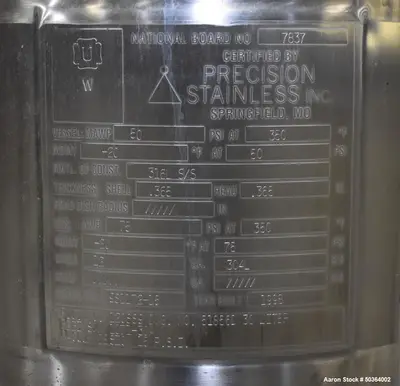

National Board #: 7837

Description:

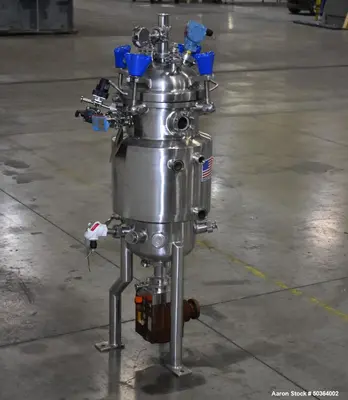

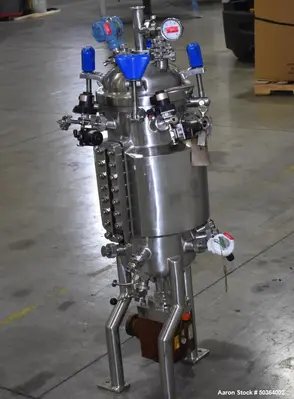

This used Precision Stainless Reactor is a high-quality, 30-liter (7.92-gallon) jacketed reactor, designed for chemical, pharmaceutical, and industrial processing applications.
Constructed from 316L stainless steel for the internal vessel and 304L stainless steel for the jacket, this unit provides excellent corrosion resistance and durability.
With an approximate 10-3/4” diameter x 22-1/4” straight side, this reactor features a dished top and bottom, ensuring optimal mixing and heat transfer efficiency.
The internal vessel is rated for 50 PSI at -20 to 350°F, while the jacket is rated for 75 PSI at -20 to 350°F, making it suitable for a wide range of temperature-controlled processing applications.

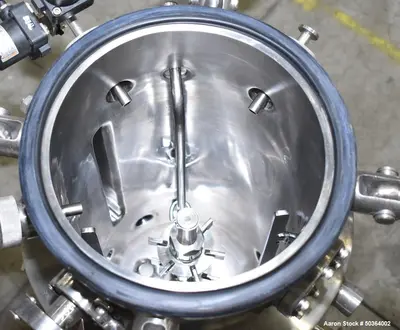

Equipped with a bottom-entering agitator with three-tier (six) blade impellers, this unit requires a 1 HP motor (not included) for efficient mixing and agitation.

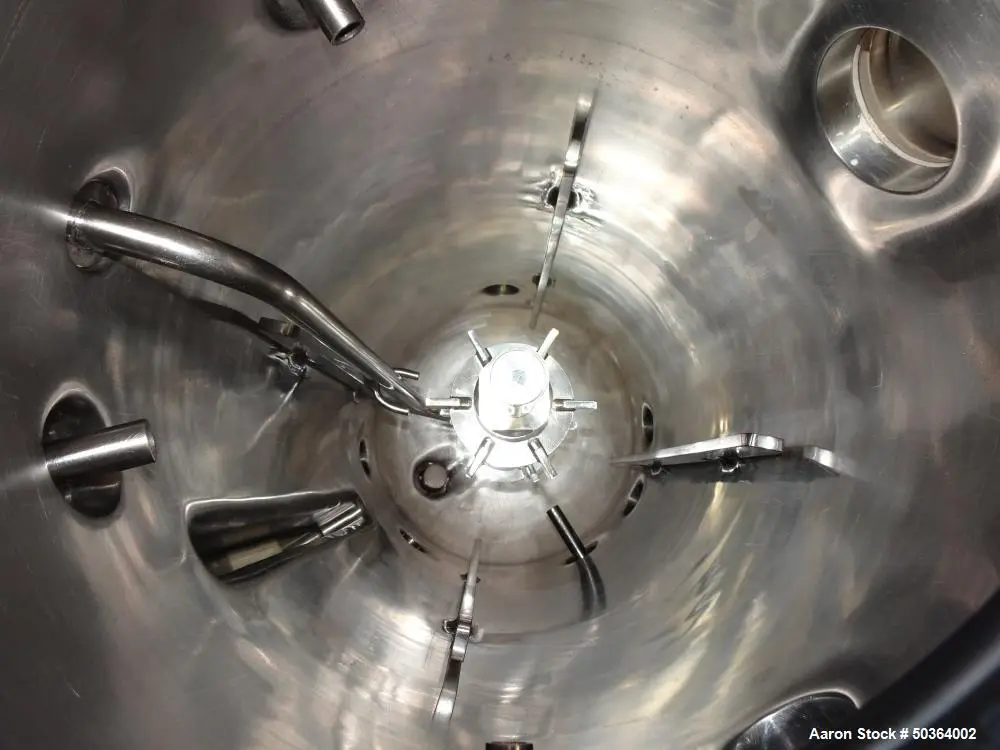

This reactor also features four sidewall baffles for enhanced mixing performance and multiple top and side openings for process integration. Mounted on a stainless steel frame with casters, it is easily portable and ideal for lab, pilot, and small-scale production.
Key Features:

316L Stainless Steel Reactor for Industrial & Pharmaceutical Processing
30L (7.92-Gallon) Capacity for Small-Scale & Lab Applications
Dished Top & Bottom for Optimized Mixing & Heat Transfer
Bottom-Entering Agitator with Three-Tier (Six) Blade Impellers
Requires a 1 HP Motor for Mixing Operations
50 PSI Internal Rating, 75 PSI Jacket Rating (-20 to 350°F)
Sidewall Baffles for Improved Mixing Efficiency
Multiple Process Openings for Custom Integration
Mounted on a Stainless Steel Frame with Casters for Mobility
National Board #: 7837, Serial #: 981172-15

Specifications:

Capacity: 30 Liters (7.92 Gallons)

Material: 316L Stainless Steel (Internal), 304L Stainless Steel (Jacket)

Internal Dimensions: 10-3/4" Diameter x 22-1/4" Straight Side

Top & Bottom Design: Dished

Internal Pressure Rating: 50 PSI (-20 to 350°F)

Jacket Pressure Rating: 75 PSI (-20 to 350°F)

Agitator: Bottom-Entering, Three-Tier (Six) Blade Impellers

Motor Requirement: 1 HP (Not Included)

Openings:

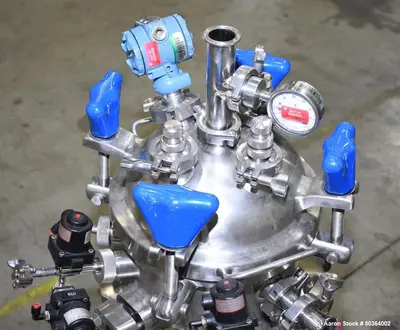

Top Head: (1) 2”, (4) 1-1/2” Tri-Clamp Ports

Side: (10) 1-5/8” Threaded Ports

Side Bottom Outlet: 1-5/8” Diameter

Baffles: (4) Sidewall Baffles for Enhanced Mixing

Mounting: Stainless Steel Frame with Casters

National Board #: 7837

Serial #: 981172-15

Applications:

Pharmaceutical & Biotechnology Processing – Ideal for small-batch formulation and pilot-scale production

Chemical Processing – Suitable for reactions, mixing, and heat-sensitive applications

Food & Beverage Production – Used for controlled mixing of ingredients and emulsions

Nutraceuticals & Supplements – For processing powders, liquids, and active ingredients

Cosmetic & Personal Care – Blending and emulsification of skincare, creams, and lotions

What Products Would This Be Used For?

Small-scale chemical reactions and blending
Pharmaceutical formulation and batch processing
Food and beverage ingredient mixing
Cosmetic and personal care product manufacturing
Specialty chemical processing
