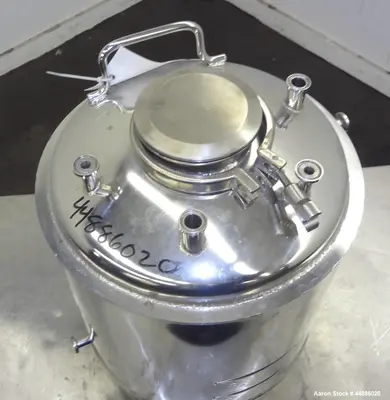

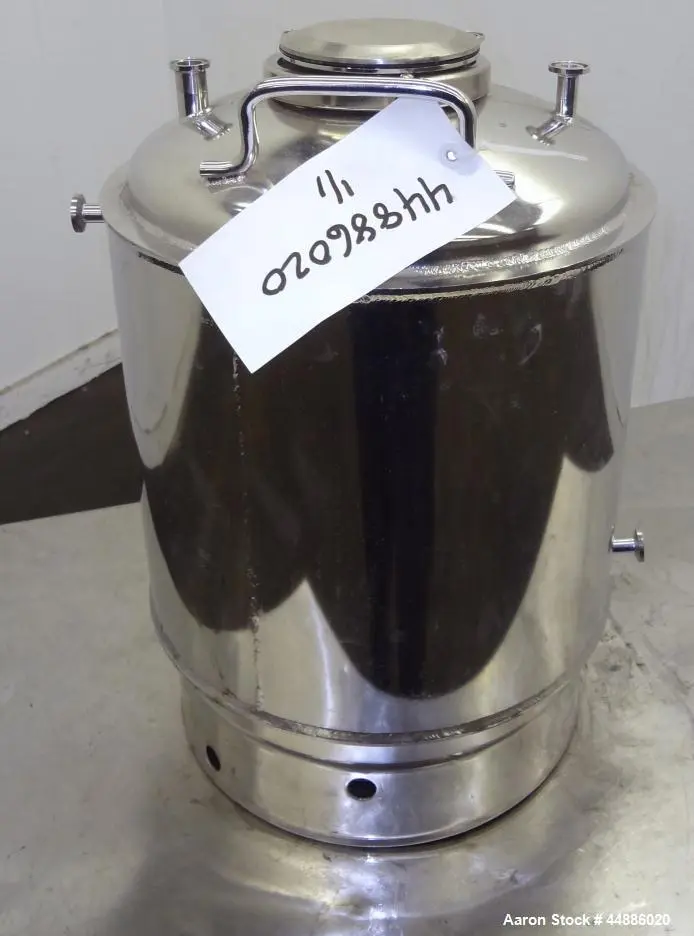

Used Alloy Products 20-Liter Reactor – 316L Stainless Steel, Vertical | Small-Scale Precision Reactor for Industrial & Laboratory Applications

Used Alloy Products Reactor 20 Liters (5.2 Gallons), 316L Stainless Steel, Vertical. Approximately 12" diameter x 10" straight side, dished top and bottom. Internal rated full vacuum 50 psi at -20 to 100 degrees F, 304 stainless steel jacket rated full vacuum/50 psi at -20 to 100 degrees F. Openings top (2) 3/8", (2) 1/2", 4". No bottom outlet. Skirt mounted.

Used Equipment Facts About This Machine
Manufacturer:
Alloy Products
Description:
The Used Alloy Products 20-Liter (5.2 Gallon) Reactor is a compact, high-quality 316L stainless steel vertical reactor designed for precision chemical, pharmaceutical, and industrial processing. With an approximate 12” diameter x 10” straight-side chamber, this reactor features a dished top and bottom for efficient mixing and processing.
Rated for full vacuum and 50 PSI at -20 to 100°F, the unit includes a 304 stainless steel jacket with the same vacuum and pressure ratings, allowing for effective temperature regulation. The reactor features multiple top openings for process customization but has no bottom outlet. The skirt-mounted design ensures stability for laboratory and industrial applications.
Specifications:

Brand: Alloy Products

Type: Vertical Reactor

Capacity: 20 Liters (5.2 Gallons)

Material: 316L Stainless Steel

Chamber Dimensions: 12” Diameter x 10” Straight Side

Internal Rating: Full Vacuum / 50 PSI at -20 to 100°F

Jacket Material: 304 Stainless Steel

Jacket Rating: Full Vacuum / 50 PSI at -20 to 100°F

Openings (Top): (2) 3/8", (2) 1/2", (1) 4"

Outlet: No Bottom Outlet

Mounting: Skirt Mounted

Applications:

Pharmaceutical formulation & R&D
Chemical reaction & synthesis
Food & beverage ingredient processing
Laboratory-scale material testing
Specialty coatings & adhesive production

Compatible Products & Industries:

Biotech & pharmaceutical manufacturing
Chemical processing plants
Research & development laboratories
Specialty material production
