Used R&M Italia 160L Glass Lined Reactor Train with 70L Receiver – 150 PSI – Jacketed – XP Agitator – QVF Sections

Manufacturer Info:

Manufacturer: R&M Italia

Reactor Capacity: 160 Liters

Receiver Capacity: 70 Liters

Construction: Glass-lined steel with QVF borosilicate glass mid-sections

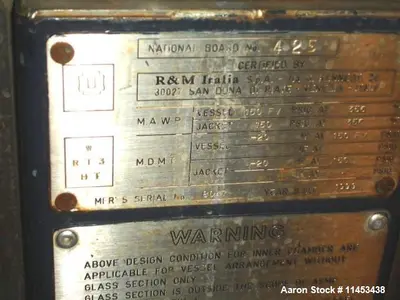

Reactor Serial #: 8047 | National Board #: 425

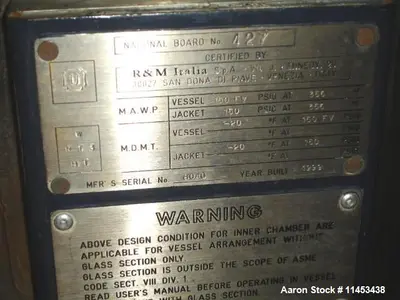

Receiver Serial #: 8040 | National Board #: 427

Condition: Used

Description:

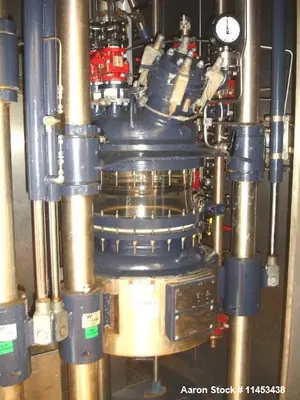

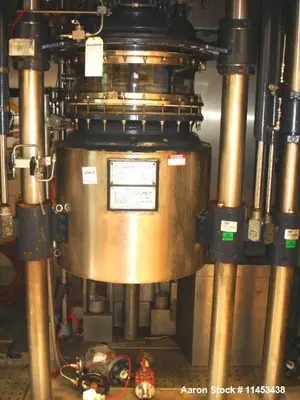

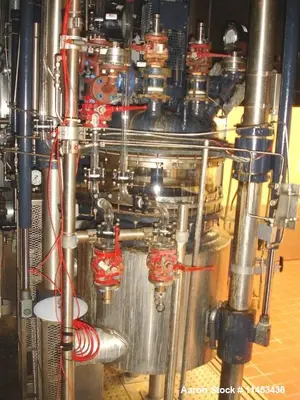

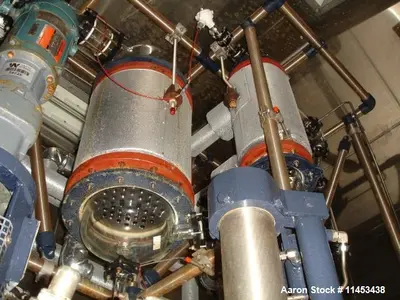

This is a used 160-liter glass-lined reactor system from R&M Italia, paired with a 70-liter glass-lined receiver, connected by QVF borosilicate glass intermediate sections. Both vessels feature removable dished tops and bottoms for ease of cleaning and maintenance.
Rated for 150 PSI and full vacuum at 356°F, internally and jacketed, this system is ideal for high-purity or corrosive process applications. The reactor is equipped with a top-mounted 1 HP explosion-proof (XP) agitator drive (230/460V), mechanical seal, 3-blade retreat curve agitator, and an internal tube baffle for enhanced mixing.

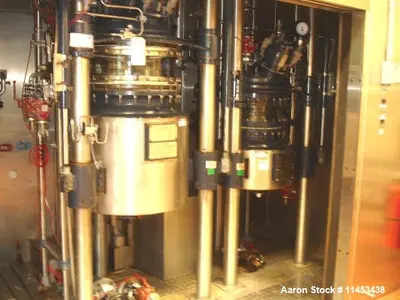

The system is mounted on bottom lift/lower mechanisms for both the reactor and receiver, offering flexibility for cleaning, draining, or material transfer.

Specifications:

Reactor Capacity: 160 Liters

Receiver Capacity: 70 Liters

Material: Glass-lined steel

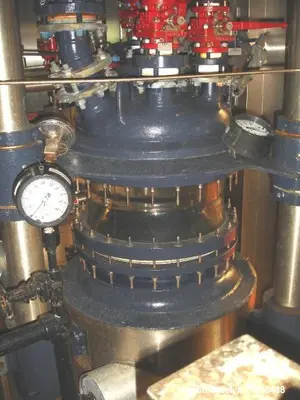

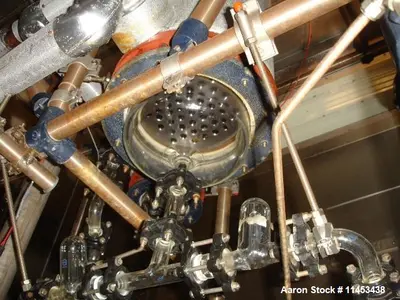

Intermediate Sections: QVF borosilicate glass

Internal Rating (Both): 150 PSI / Full Vacuum @ 356°F

Jacket Rating (Both): 150 PSI / Full Vacuum @ 356°F

Agitation System:

1 HP Explosion-Proof Motor

230/460 Volt, 3 Phase

Mechanical seal

3-blade retreat curve agitator

Tube baffle for flow control

Mounting: Reactor and receiver on bottom lift/lower mechanisms

Reactor Serial #: 8047 | NB #: 425

Receiver Serial #: 8040 | NB #: 427

Applications:

Pharmaceutical and biotech batch reactions

Chemical synthesis under pressure and vacuum

Solvent recovery or distillation

Crystallization and precipitation

API or intermediate formulation

Corrosive media processing

R&D pilot plant operations

Reflux and temperature-sensitive reactions

Buffer or solution preparation

Multi-phase fluid reactions

What might this be used for?:
This reactor system is ideal for precision reaction processes in biotech, pharma, chemical, and R&D applications where high-purity, corrosion resistance, and pressure/vacuum control are essential. The QVF mid-sections offer clear process visibility, while the lift mechanisms enhance ease of operation.
