USED WERNER & PFLEIDERER UK12-AU3

Manufacturer Information:

Brand: Werner & Pfleiderer

Type: Mixer/Extruder

Model: UK12-AU3

Material: Carbon Steel (Product Contact Parts)

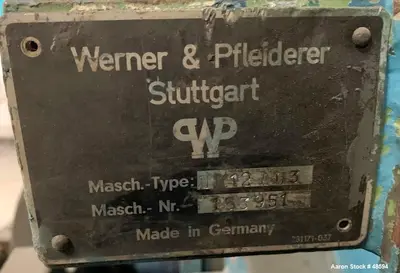

Serial #: 193951

Description:

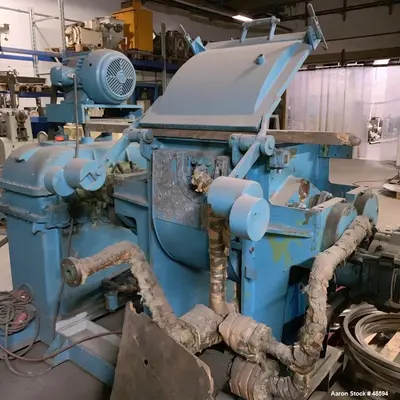

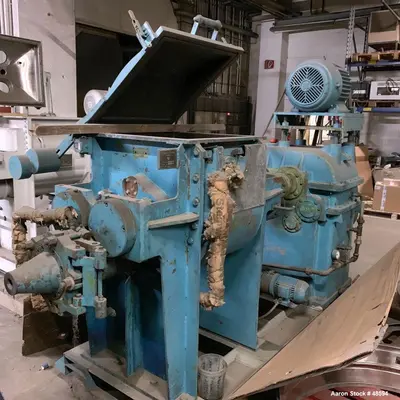

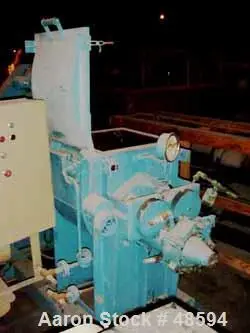

This used Werner & Pfleiderer Mixer/Extruder (Type UK12-AU3) is a high-performance mixing and extrusion system, designed for heavy-duty industrial applications, including rubber, plastic, chemical, and food processing.

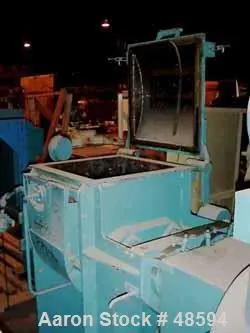

With a 21-gallon (80-liter) working capacity and a 29.1-gallon (110-liter) total capacity, this unit features a jacketed mixing bowl (20.5" x 20.5" x 19.5"), estimated rated for 75 psi (5 bar), providing efficient heating or cooling during processing.

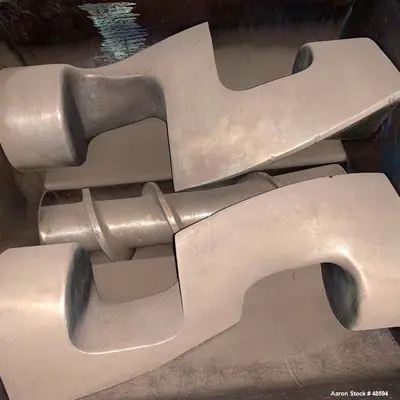

The sigma-style blades operate at 17/21 RPM, ensuring thorough mixing and kneading of high-viscosity materials. The tangential blade configuration enhances material shearing and blending, making it suitable for high-consistency applications.

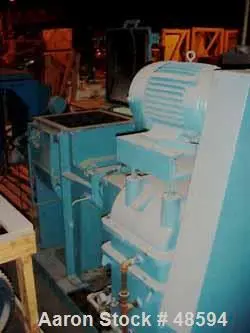

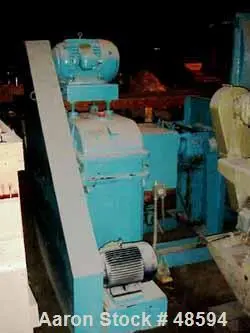

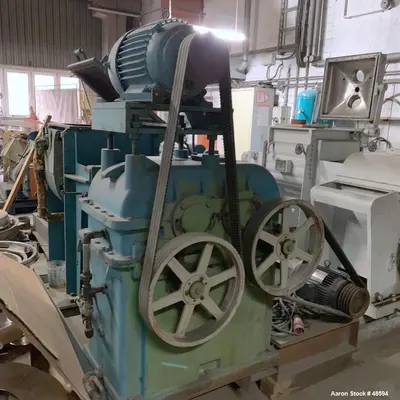

This machine includes a 6” (150mm) diameter screw discharge system, belt-driven through a gearbox, powered by a 22.5 HP (15 kW), 380V, 50 Hz, 3-phase motor operating at 1475 RPM. The screw discharge mechanism is driven by an 11.25 HP (7.5 kW), 380V, 50 Hz, 3-phase motor, ensuring efficient material output.
Mounted on a sturdy frame, this 3-ton mixer/extruder is built for durability and high-throughput processing.
Key Features:

21-Gallon (80L) Working Capacity | 29.1-Gallon (110L) Total Capacity
Carbon Steel Construction for Heavy-Duty Industrial Use
Jacketed Mixing Bowl (75 PSI Rated) for Heating & Cooling Applications
Sigma-Style Tangential Blades Operating at 17/21 RPM for High-Viscosity Mixing
6” (150mm) Diameter Screw Shafts for Product Discharge
22.5 HP (15 kW) Main Motor | 11.25 HP (7.5 kW) Screw Discharge Motor
Belt-Driven Through Gearbox for Smooth Operation
Counterbalanced Top Cover for Safe & Easy Access
Frame-Mounted Design for Stability & Heavy-Duty Performance
Overall Dimensions: 85" (2600mm) L x 52" (1600mm) W x 5.9' (1800mm) H
Total Weight: 3 Tonnes
Serial #: 193951

Specifications:

Model: UK12-AU3

Material: Carbon Steel (Product Contact Parts)

Working Capacity: 21 Gallons (80 Liters)

Total Capacity: 29.1 Gallons (110 Liters)

Bowl Dimensions: 20.5” L x 20.5” W x 19.5” D

Jacket Pressure Rating: 75 PSI (5 Bar) (Estimated)

Blade Type: Sigma-Style, Tangential Configuration

Blade Speed: 17/21 RPM

Screw Discharge Size: 6” (150mm) Diameter

Main Motor: 22.5 HP (15 kW), 380V, 50 Hz, 3-Phase, 1475 RPM

Screw Discharge Motor: 11.25 HP (7.5 kW), 380V, 50 Hz, 3-Phase

Mounting: Frame-Mounted

Overall Dimensions: 85” (2600mm) L x 52” (1600mm) W x 5.9’ (1800mm) H

Total Weight: 3 Tonnes

Serial #: 193951

Applications:

Rubber & Polymer Processing – Kneading and extrusion of high-viscosity compounds

Plastic Compounding & Extrusion – Mixing and pre-processing of plastic formulations

Chemical & Industrial Processing – Blending and homogenizing chemical materials

Food Processing – Mixing high-viscosity food products like doughs, pastes, and confections

Adhesive & Sealant Production – Consistent blending of thick industrial adhesives

What Products Would This Be Used For?

Rubber and elastomer mixing
Plastic and polymer processing
High-viscosity chemical compounds
Food and confectionery processing
Industrial adhesives and sealants
