USED MYERS 550/500EH-15-25

Manufacturer: Myers
Model: V550/500EH-15-25
Capacity: 375 Liters (100 Gallons)
Construction Material: 304 Stainless Steel

Description:

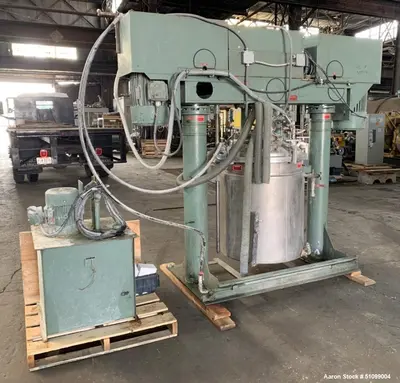

The Myers Tri-Shaft Combination Disperser-Mixer-Emulsifier, Model V550/500EH-15-25 is a versatile and heavy-duty mixing solution designed for complex mixing, dispersing, and emulsifying applications. With a 375-liter (100-gallon) working capacity, this mixer is constructed from durable 304 stainless steel, ensuring long-lasting performance in demanding environments.
The system features dual active shafts and provisions for a third, making it adaptable to a variety of mixing needs. The first shaft includes a 3-wing anchor-style agitator with side and bottom scrapers, powered by a 15 HP XP variable speed motor (3/60/230/460 Volt, 1765 RPM), ideal for slow-speed, high-viscosity mixing. The second shaft features a high-speed paddle blade driven by a 25 HP XP variable speed motor for high-shear mixing and dispersing. The third shaft is motorized with a 15 HP XP variable speed motor but lacks a mixing element, allowing for future customization.
An approximate 20" diameter hydraulic lift cover provides easy access to the mixing chamber for cleaning and maintenance.

Specifications:

Manufacturer: Myers

Model: V550/500EH-15-25

Capacity: 375 Liters (100 Gallons)

Construction Material: 304 Stainless Steel

Agitation System:

Shaft 1:

3-Wing Anchor-Style Agitator with Side and Bottom Scrapers
Driven by 15 HP XP Variable Speed Motor (3/60/230/460 Volt, 1765 RPM)

Shaft 2:

High-Speed Paddle Blade
Driven by 25 HP XP Variable Speed Motor (3/60/230/460 Volt)

Shaft 3:

Provisioned (No Mixing Element Installed)
Driven by 15 HP XP Variable Speed Motor (3/60/230/460 Volt)

Cover: Approx. 20" Diameter Hydraulic Lift Cover

Motors: Explosion-Proof (XP) Variable Speed Motors

Power Requirements: 3/60/230/460 Volt

Applications:
The Myers V550/500EH-15-25 Tri-Shaft Mixer is ideal for complex and high-viscosity mixing applications across various industries:

Paints & Coatings
Adhesives & Sealants
Inks & Pigments
Cosmetics & Personal Care Products
Pharmaceuticals & Nutraceuticals
Food & Beverage Processing
Chemical Manufacturing

Used For:

High-viscosity material mixing
Dispersing pigments and powders into liquids
Emulsifying immiscible liquids
Homogenizing thick pastes and gels
Multi-stage mixing with variable speed control
Customizable for future mixing needs with third shaft provision
