USED SCOTT TURBON 1XEV-1

Manufacturer Information:

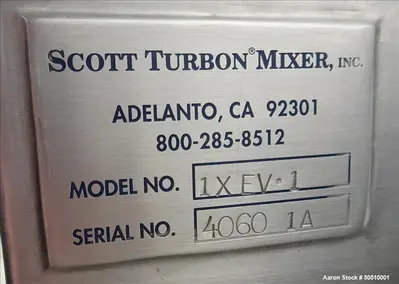

Brand (Mixer): Scott Turbon

Model (Mixer): 1XEV-1

Brand (Reactor): Lee Industries

Model (Reactor): 4LDBT

Type: High-Shear Mixer with Reactor

Serial # (Mixer): 4060-1A

Serial # (Reactor): C5087C

Description:

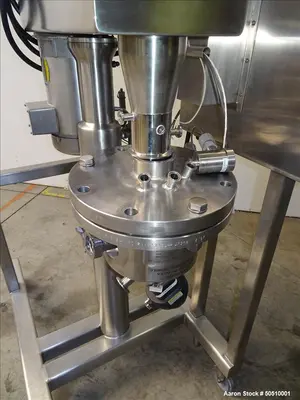

This used Scott Turbon Mixer (Model 1XEV-1) with a Lee Industries 1-Gallon Reactor is a compact, high-performance mixing and reaction system, ideal for pharmaceutical, chemical, food, and cosmetic applications requiring precise mixing, homogenization, and temperature-controlled processing.
The Scott Turbon Mixer features:

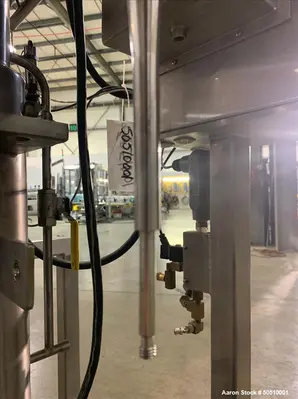

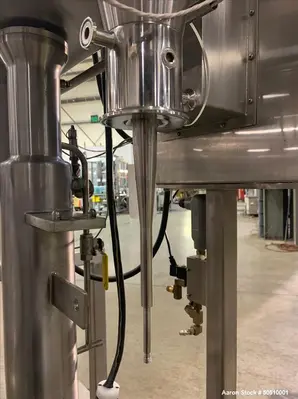

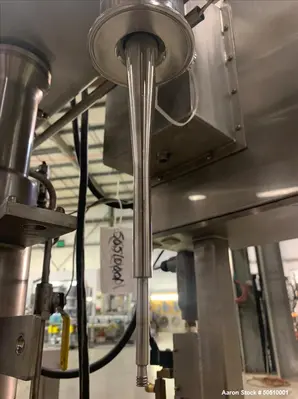

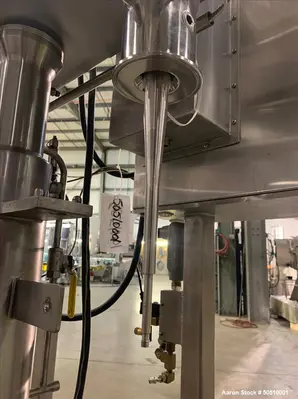

9-3/4” long stainless steel mixing shaft

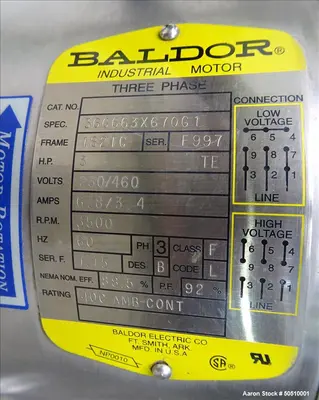

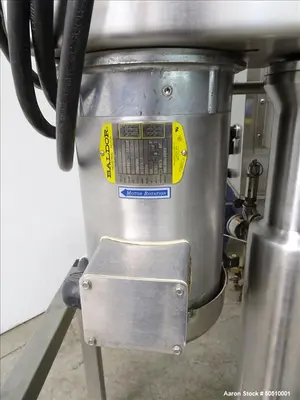

Driven by a 3 HP, 3/60/230/460V, 3500 RPM motor

Air-operated raising mechanism for ease of use

The Lee Industries 1-Gallon Reactor features:

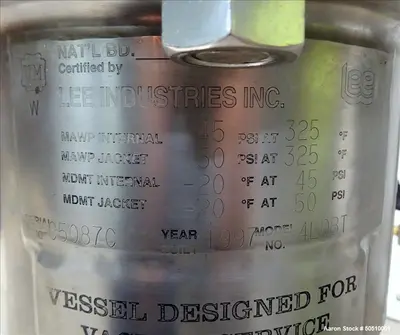

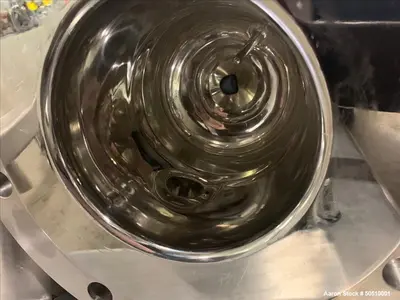

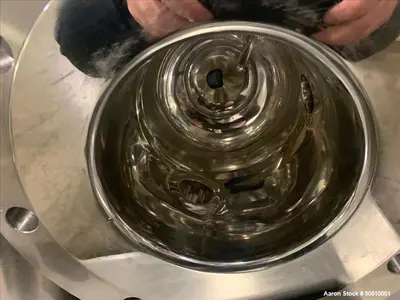

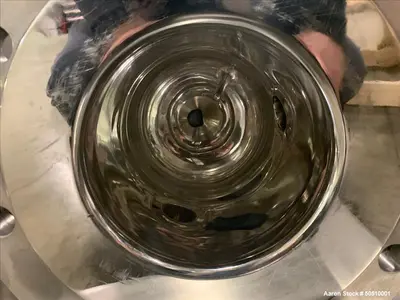

316L stainless steel interior, rated 45 psi at -20 to 325°F, designed for vacuum applications

304 stainless steel jacket, rated 50 psi at -20 to 325°F, for temperature control

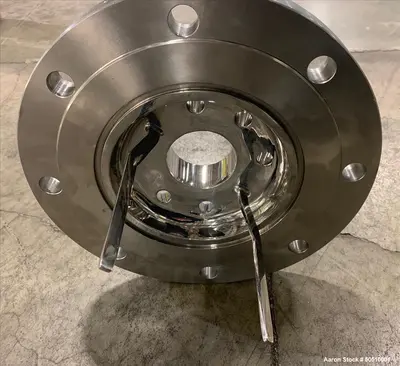

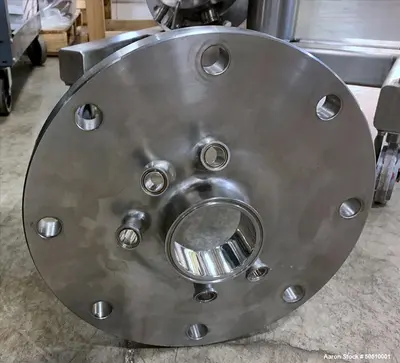

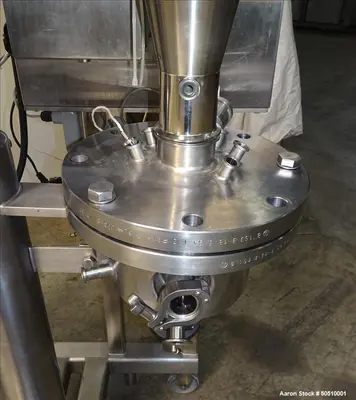

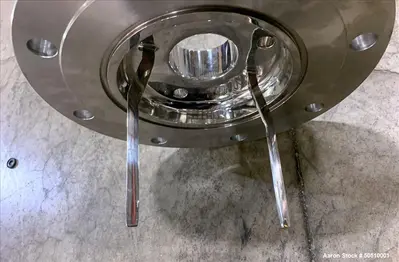

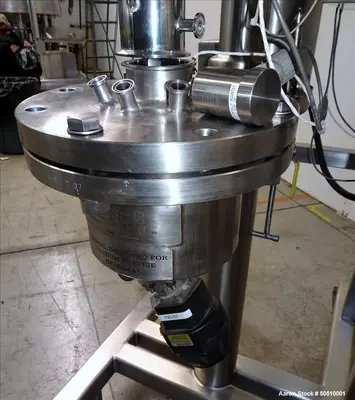

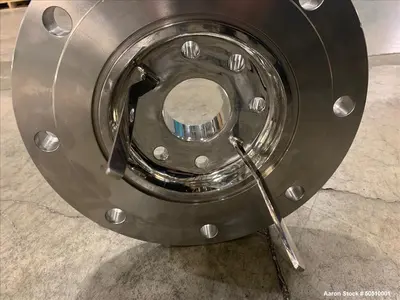

Dished top head with multiple openings, including:

(1) 3” tri-clamp opening (missing clamp)
(5) 3/4” openings (5 bolts missing from top head)

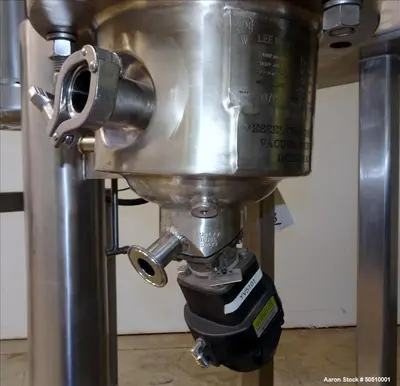

Vessel openings:

Side: 1-1/2”, 3/4”

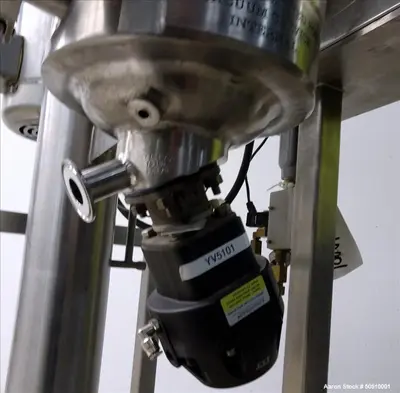

Bottom: 1-1/2” with valve

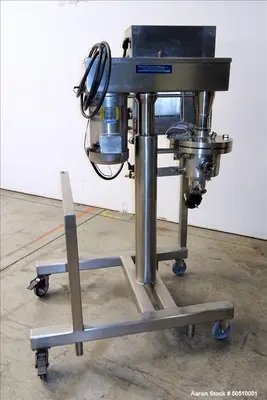

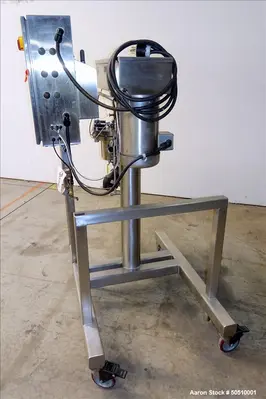

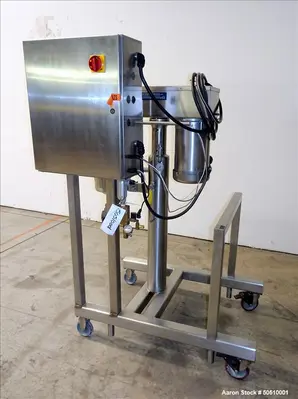

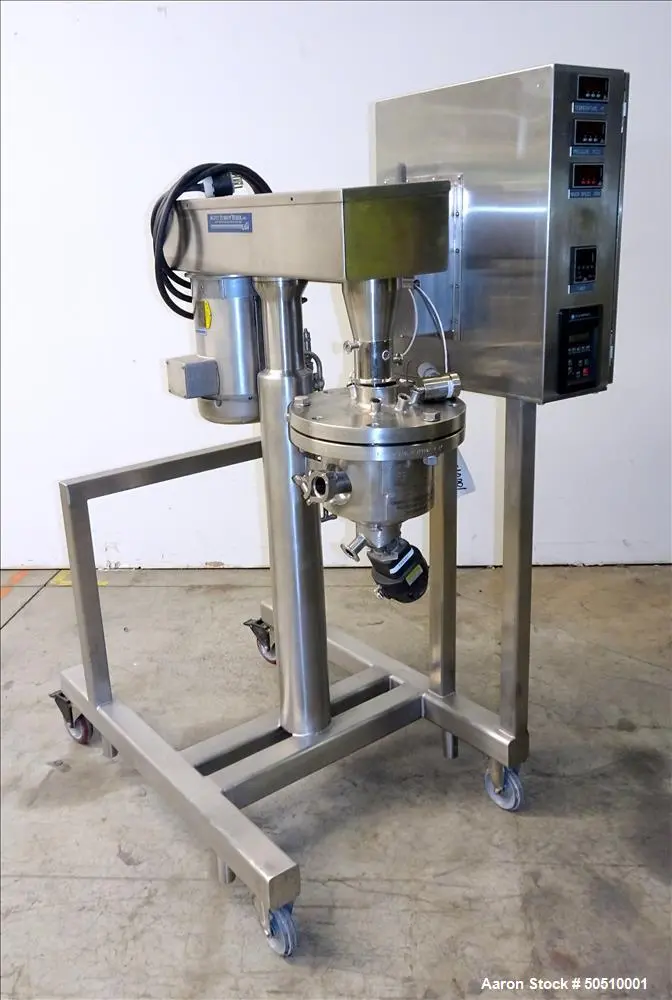

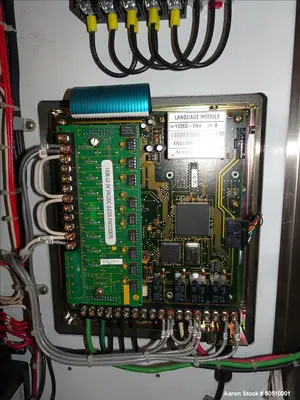

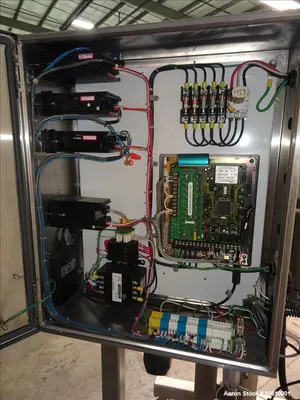

This system is mounted on a stainless steel frame with casters, allowing for easy mobility and positioning. It also includes a control panel with an Allen-Bradley controller, ensuring precise process control.
Specifications:
Scott Turbon Mixer (Model 1XEV-1)

Motor: 3 HP, 3/60/230/460V, 3500 RPM

Mixing Shaft: 9-3/4” Long Stainless Steel Shaft

Lift Mechanism: Air-Operated Raise

Mounting: Stainless Steel Frame with Casters

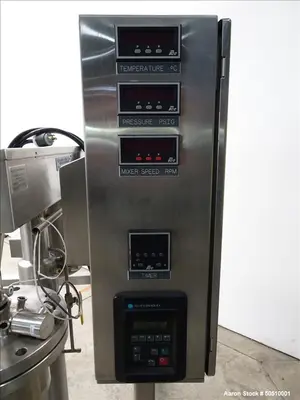

Control Panel: Included with Allen-Bradley Controller

Lee Industries Reactor (Model 4LDBT)

Capacity: 1 Gallon (4 Liters)

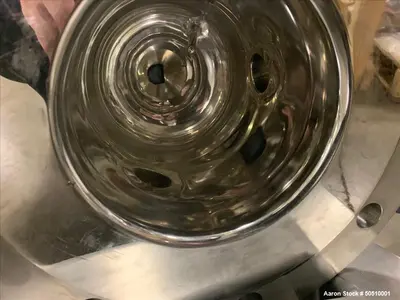

Material (Interior): 316L Stainless Steel

Material (Jacket): 304 Stainless Steel

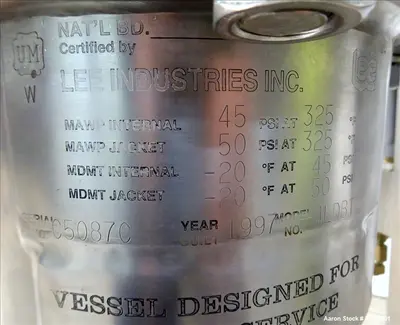

Internal Rating: 45 psi at -20 to 325°F, Vacuum Designed

Jacket Rating: 50 psi at -20 to 325°F

Top Head: Dished with Multiple Openings

(1) 3” Tri-Clamp (Missing Clamp)
(5) 3/4” Openings (5 Bolts Missing on Top Head)

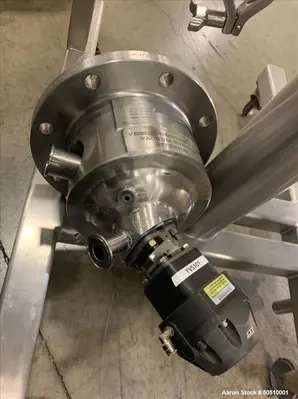

Vessel Openings:

Side: 1-1/2", 3/4"

Bottom: 1-1/2” with Valve

Applications:

Pharmaceutical & Biotech – Precision mixing of active ingredients, emulsions, and liquid formulations

Food Processing – Homogenization of sauces, flavor emulsions, and small-batch recipes

Cosmetic & Personal Care – Blending of lotions, creams, and serums

Chemical Processing – Reaction vessel for small-scale chemical formulations and dispersions

Nutraceuticals & Supplements – Processing of protein powders, vitamins, and liquid supplements

What Products Would This Be Used For?

Pharmaceutical suspensions and emulsions
Food-grade liquid blending and homogenization
Cosmetic creams, lotions, and serums
Chemical dispersions and industrial formulations
High-precision pilot-scale batch processing
