USED IPEC 7000

Manufacturer Information:

Manufacturer: IPEC (International Process Equipment Company)

Model: 7000

Type: Attrition Mill / Air Swept Mill

Condition: Used

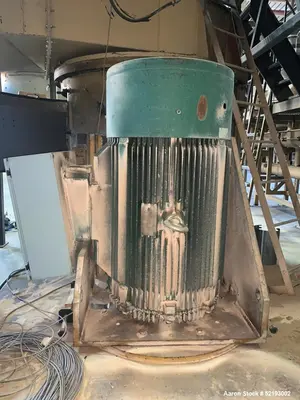

Motor: 500 HP, vertically mounted

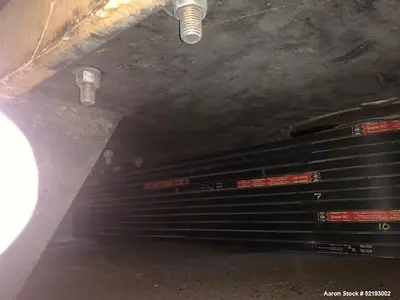

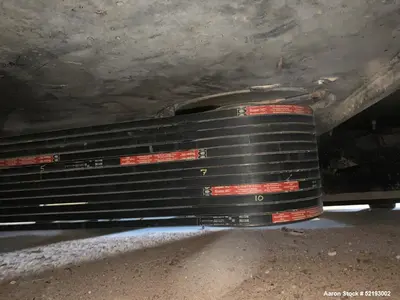

Drive: V-belt assembly

Recently Upgraded: New liners and bearings

Description:

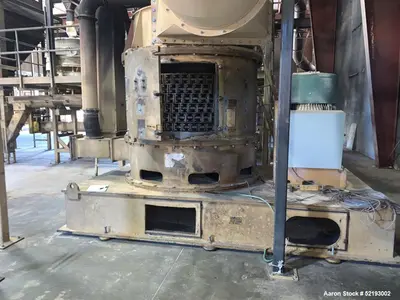

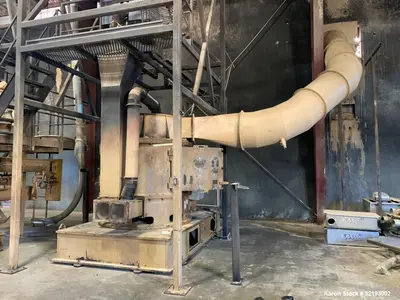

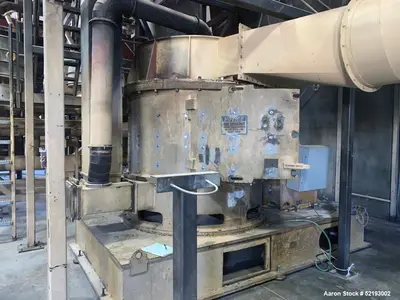

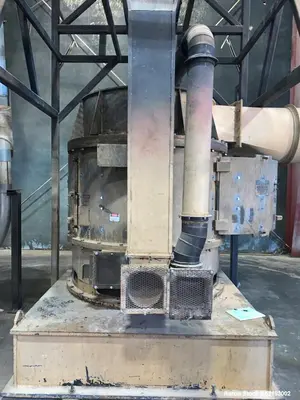

This is a heavy-duty used IPEC Model 7000 attrition mill featuring a 500 HP air-swept grinding system, specifically designed for high-speed, high-volume processing. The mill is fed via a carbon steel hopper and a screw feed system, with material pulverized through rotating disc rows equipped with impact hammers. A top-side discharge connects to a dust collection system. Formerly used for milling nut shells, this unit is capable of handling various hard or abrasive materials. It includes recent upgrades, ensuring continued performance.

Specifications:

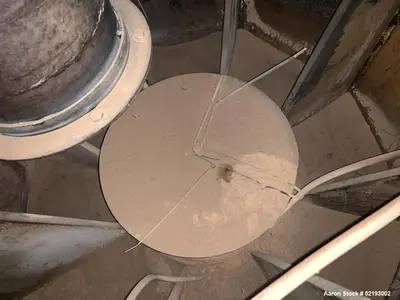

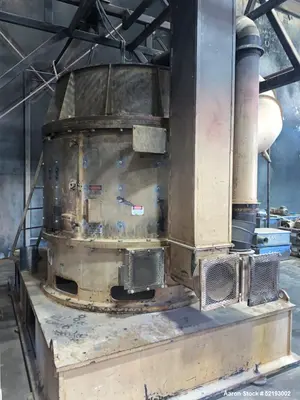

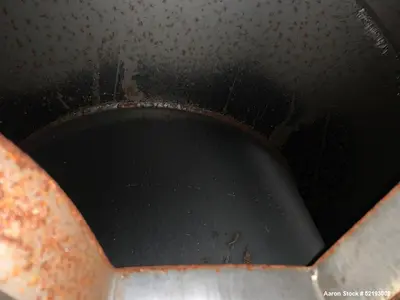

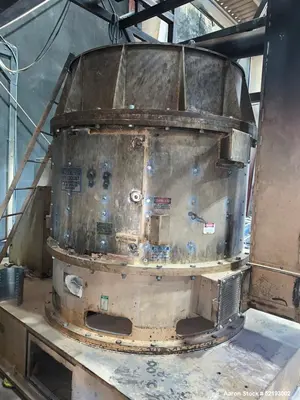

Milling Chamber: 72" diameter x 76" high total

Top section: 20" high

Middle (flange-to-flange): 36"

Bottom section: 20" high

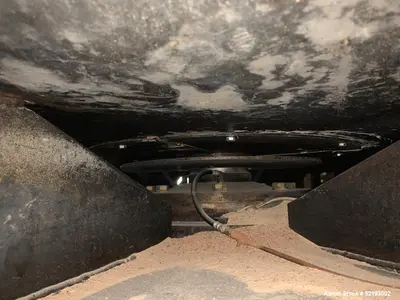

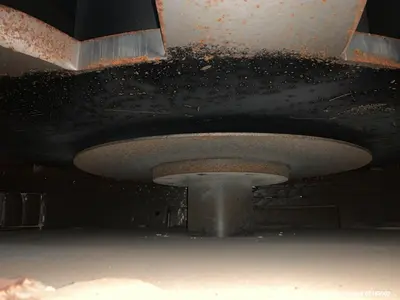

Internal Configuration: 6 rows of rotating discs with impact hammers

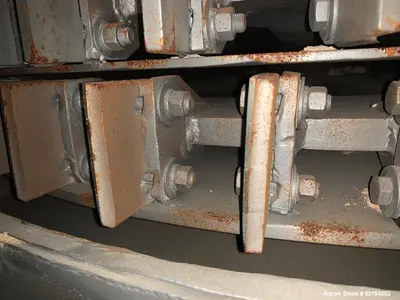

Hammers: 3" W x 4" H x 3/8" thick

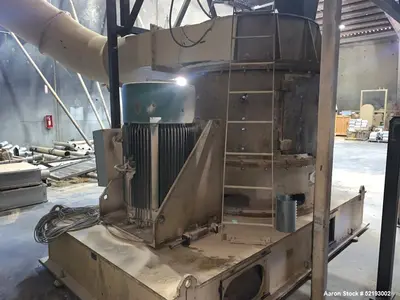

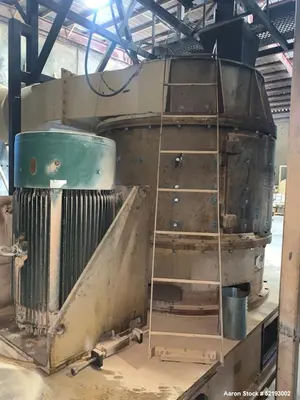

Motor: 500 HP, vertically mounted

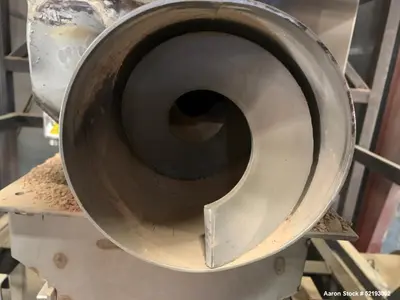

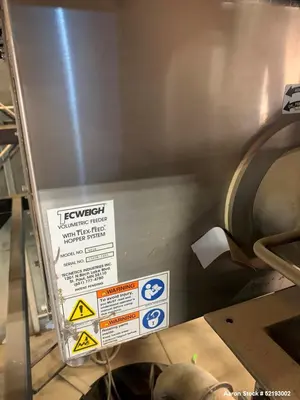

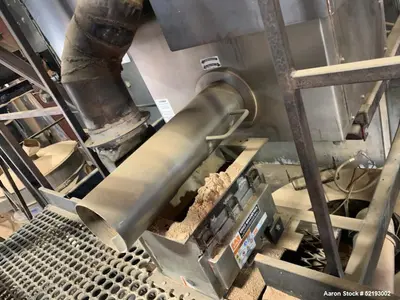

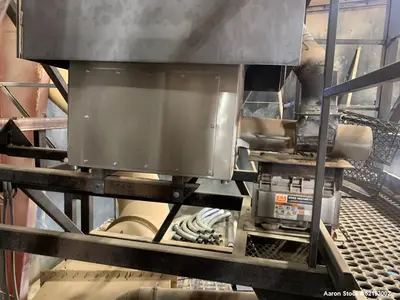

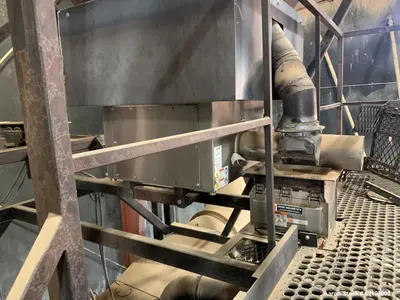

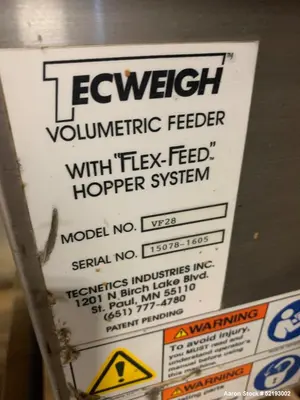

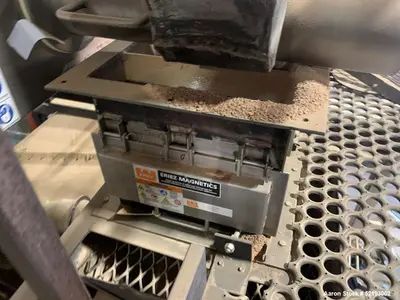

Feed System: 4" diameter screw feed

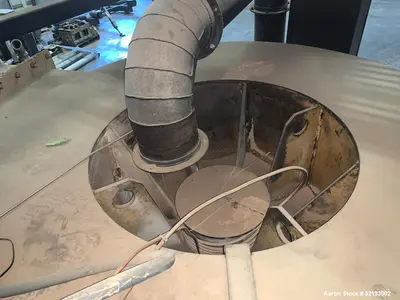

Discharge: 40" x 16" side top outlet to dust collection

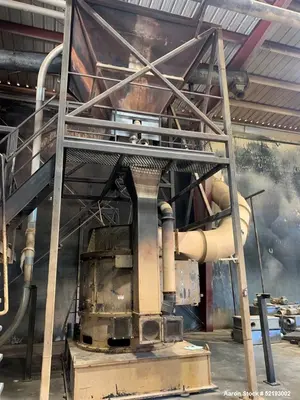

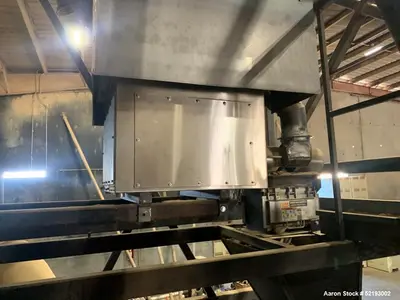

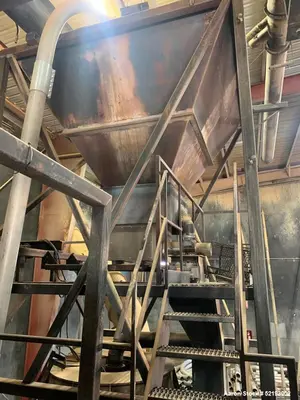

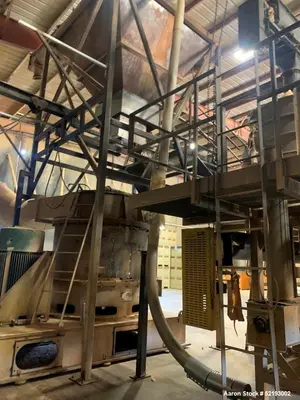

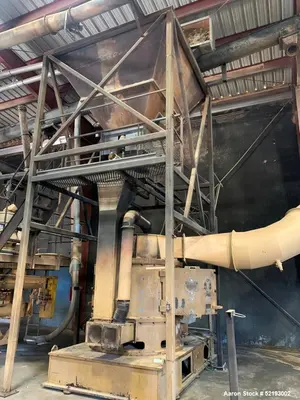

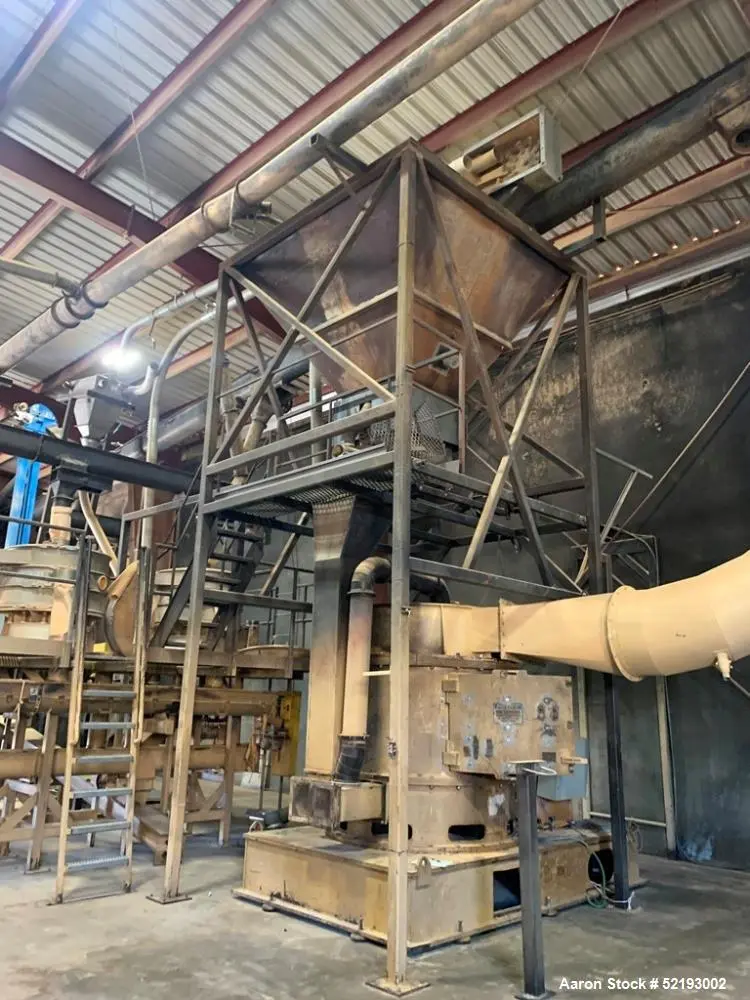

Hopper: Carbon steel, approx. 9' W x 8' L x 8' D, steep-sided, mezzanine-mounted

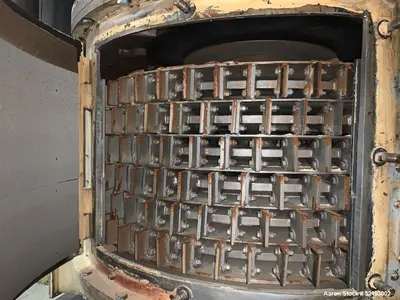

Upgrades: New liners and bearings

Applications:

Biomass and organic materials processing

Abrasive shell or seed milling

Charcoal grinding

Mineral reduction

Cement additives processing

Activated carbon production

Agricultural residue pulverizing

Refractory materials milling

Industrial waste processing

Grinding applications for recycling

What might this be used for:

Pulverizing nut shells, seeds, or hard biomass

Producing fine powders from abrasive materials

Preparing feedstock for combustion or gasification

Grinding additives for cement or asphalt

Reducing particle size for mineral or metal ores

Processing recycled composite or resin-based products

Milling raw materials for agricultural use

Shredding activated carbon for reprocessing

Creating filler material from hard scrap

Supporting high-volume dry milling operations
