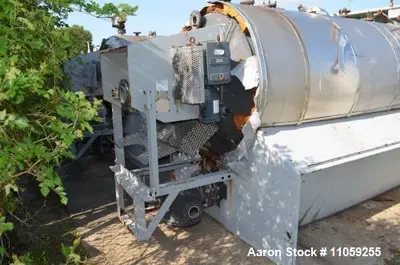

Used US Filter Pressure Leaf Filter – Auto Jet (1300 Sq. Ft.)

Manufacturer Information:

Brand: US Filter

Model: Auto Jet

Condition: Used

Type: Pressure Leaf Filter

Description:
The US Filter Auto Jet Pressure Leaf Filter is a high-capacity filtration system, designed for liquid-solid separation in industrial applications. Constructed from 316 stainless steel, this filter ensures corrosion resistance and durability.
With a total filtration area of 1300 square feet, the unit operates under a maximum allowable working pressure (MAWP) of 150 PSI/full vacuum (FV) at 400°F. The minimum design metal temperature (MDMT) is -20°F at 150 PSI, making it suitable for high-pressure, high-temperature processing environments.

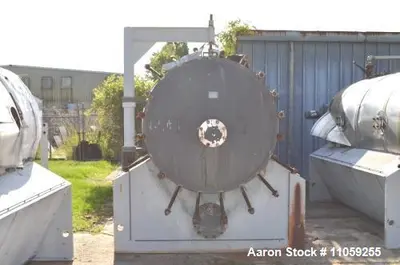

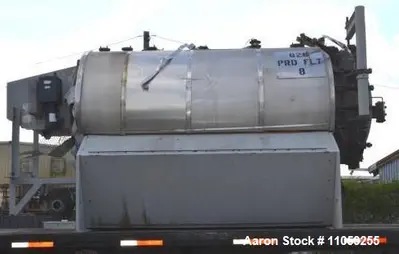

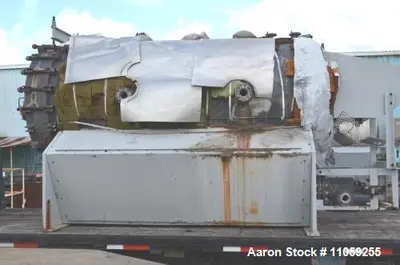

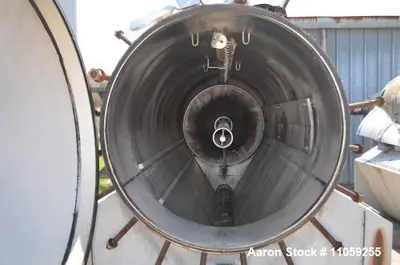

The shell measures 4'6" in diameter x 15' long, featuring (2) 3" inlets, a 6" outlet, a 3" spray header, and a 10" drain, providing efficient flow control and system integration.
This unit does not include filter elements, requiring 48" filter elements for operation.
Specifications:

Filtration Area: 1300 square feet

Material: 316 Stainless Steel

Shell Dimensions: 4'6" diameter x 15' long

Maximum Allowable Working Pressure (MAWP): 150 PSI / Full Vacuum (FV) @ 400°F

Minimum Design Metal Temperature (MDMT): -20°F @ 150 PSI

Inlet: (2) 3"

Outlet: 6"

Spray Header: 3"

Drain: 10"

Filter Elements: Not included (requires 48" filter elements)

Condition: Used

Applications:
The US Filter Auto Jet Pressure Leaf Filter is ideal for industries requiring high-efficiency liquid-solid separation, including:

Chemical Processing (solvent recovery, catalyst recovery, fine chemical filtration)
Food & Beverage (vegetable oil filtration, edible oils, beer and wine clarification, sugar processing)
Pharmaceuticals (active ingredient filtration, vaccine production, sterile filtration, API separation)
Oil & Gas (hydrocarbon filtration, amine and glycol purification, crude oil processing)
Water Treatment (industrial wastewater filtration, cooling tower filtration, process water purification)
Mining & Minerals (metal extraction, tailings dewatering, mineral slurry filtration)
Biofuels & Renewable Energy (biodiesel filtration, ethanol production, biomass processing)
Pulp & Paper Industry (white liquor and black liquor filtration, pulp dewatering, chemical recovery)
Textile & Dye Processing (pigment separation, dye purification, wastewater treatment)
Cosmetics & Personal Care (perfume filtration, lotion and cream processing, essential oil purification)
