USED PAUL O ABBE RCVD-12

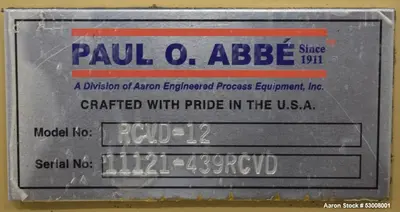

Manufacturer Information:

Brand: Paul O Abbe

Model: RCVD-12 (Rota-Cone Vacuum Dryer)

Serial Number: 11121-439RCVD

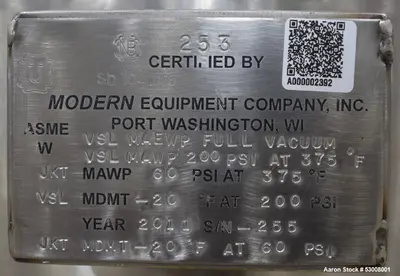

National Board Number: 253

Description:

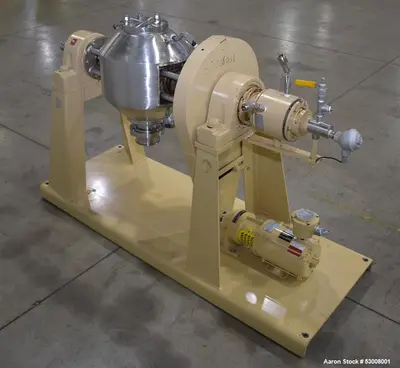

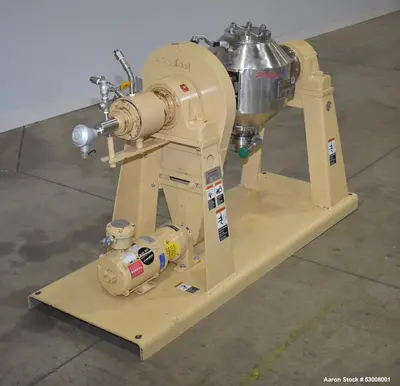

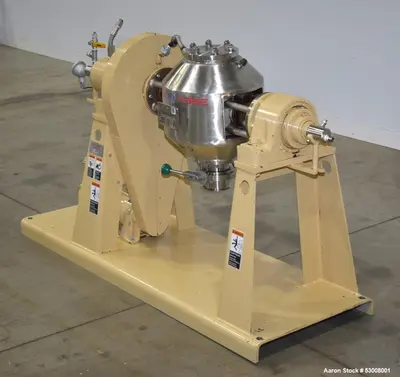

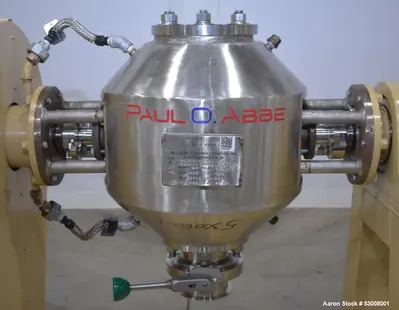

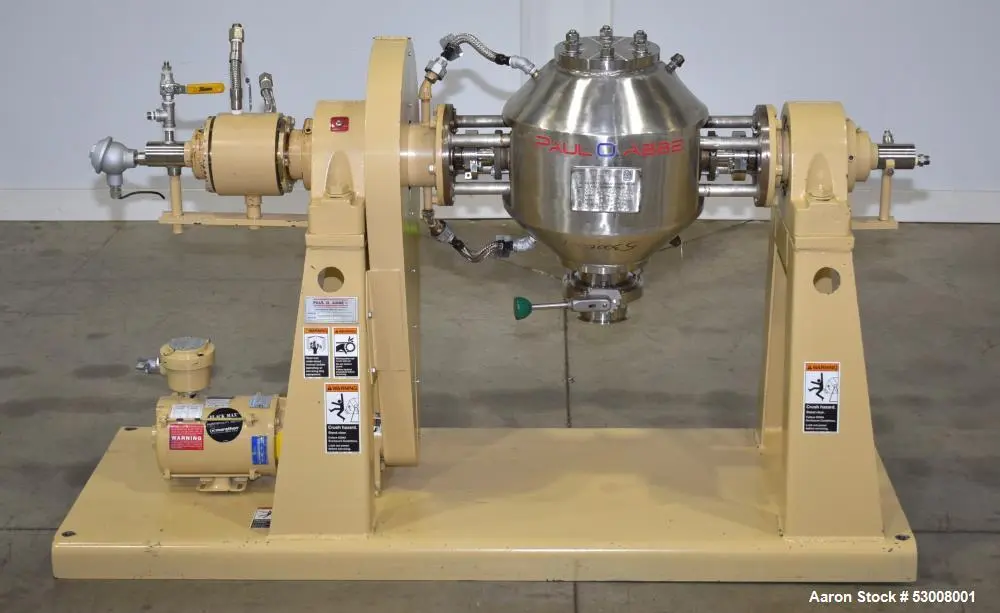

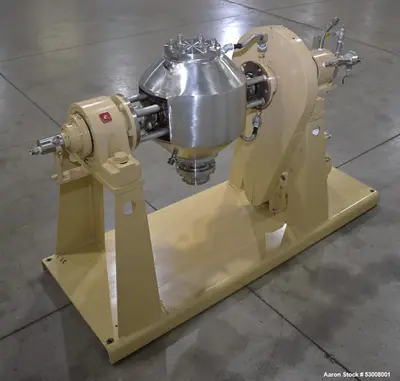

The Paul O Abbe RCVD-12 Rota-Cone Vacuum Dryer is a high-efficiency drying system, designed for low-temperature drying, solvent recovery, and precise moisture removal in industries such as pharmaceuticals, chemicals, and food processing.

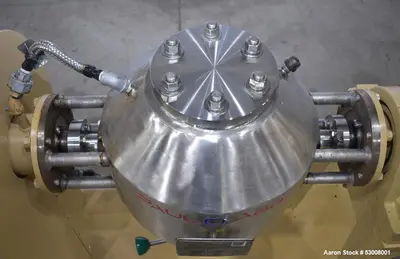

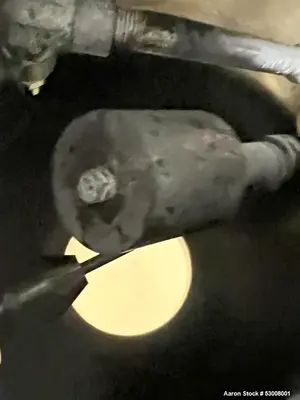

This unit is constructed of 304 stainless steel and features a 0.61 cubic foot total vessel volume, with a 0.4 cubic foot operating volume. The internal chamber is rated for 200 PSIG / Full Vacuum at -20 to 375°F, while the jacket is rated for 60 PSIG at -20 to 375°F, allowing for controlled heating and vacuum drying.

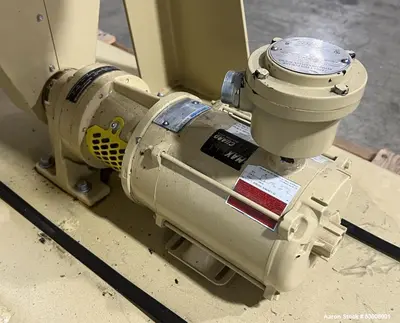

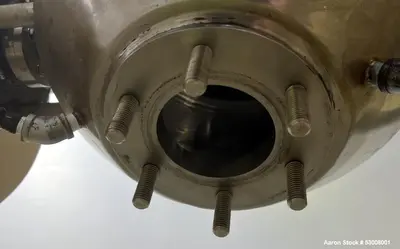

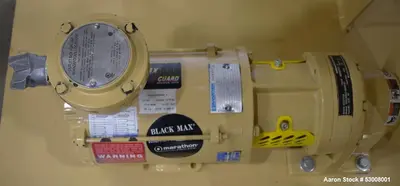

The dryer is driven by a 1/4 HP, 3/60/230-460V gear motor with a 51:1 reducer, allowing for precise speed control from 0 to 5 RPM. It features two 4" openings (without covers) and is mounted on a stable base for easy integration into existing production lines.
Key Features:

304 Stainless Steel Construction for durability and sanitary processing
0.61 Cu Ft Total Volume, 0.4 Cu Ft Operating Volume

Internal Chamber Rating: 200 PSIG / Full Vacuum (-20 to 375°F)

Jacket Rating: 60 PSIG (-20 to 375°F) for controlled heating

Speed Control: 0 - 5 RPM for optimized drying efficiency

1/4 HP, 3/60/230-460V Gear Motor with 51:1 Reducer

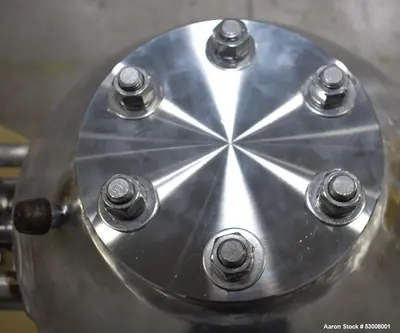

(2) 4” Openings (without covers) for loading/unloading

Mounted on Base for stability and ease of use

Specifications:

Machine Type: Rota-Cone Vacuum Dryer

Brand: Paul O Abbe

Model: RCVD-12

Construction Material: 304 Stainless Steel

Total Vessel Volume: 0.61 Cubic Feet

Operating Volume: 0.4 Cubic Feet

Internal Rating: 200 PSIG / Full Vacuum (-20 to 375°F)

Jacket Rating: 60 PSIG (-20 to 375°F)

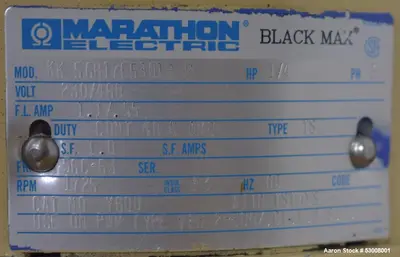

Motor Power: 1/4 HP, 3/60/230-460V

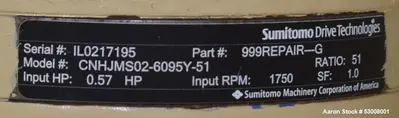

Reducer Ratio: 51:1

Rotation Speed: 0 - 5 RPM

Openings: (2) 4” Ports (without covers)

Mounting: Base-Mounted

Serial Number: 11121-439RCVD

National Board Number: 253

Applications:

Pharmaceuticals: Drying of API powders, granules, and active ingredients

Chemical Processing: Removal of solvents from fine powders and chemicals

Food Processing: Drying of sensitive ingredients, extracts, and powders

Nutraceuticals: Production of vitamins and dietary supplements

Fine Powders & Specialty Materials: Controlled low-temperature drying

What Products Would This Be Used For?

API (Active Pharmaceutical Ingredients)
Powdered chemicals and specialty resins
Solvent recovery applications
Heat-sensitive food and pharmaceutical ingredients
Nutraceuticals, vitamins, and dietary supplements
