USED ALFA LAVAL HDT 2808

Manufacturer Information:

Manufacturer: Alfa Laval/Kvaerner Hetland

Model: HDT 2808

Type: Industrial Disc Dryer

Construction: Stainless Steel (product contact parts)

Previous Application: Fish Meal Processing

Description:

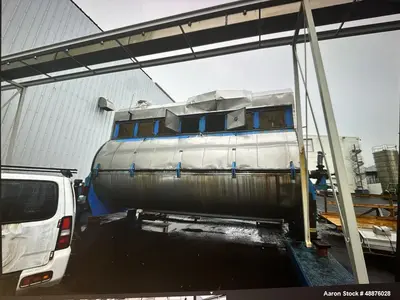

The Alfa Laval/Kvaerner Hetland HDT 2808 Disc Dryer is a high-capacity industrial drying system, designed for efficient drying of fish meal, animal feed, and other industrial materials. This dryer operates at a capacity of 3.2-4.7 tonnes per hour, depending on the product, and features a large heating surface of 5295.8 ft² (492 m²) for optimal heat transfer efficiency.
Equipped with a rotor rated for 90 PSI (6 bar) pressure at 327.2°F (164°C), this unit ensures consistent and controlled drying performance. Powered by a 240 HP (160 kW) motor, driving the rotor at 8 RPM via a Santasalo 4 TC 630 NE gearbox, this dryer is built for heavy-duty industrial use.
The unit is mounted on four sturdy legs, features inspection doors and additional infrastructure, and has a total empty weight of 72.7 tonnes, including the rotor.
Key Data:

Capacity: 3.2-4.7 tonnes per hour (product-dependent)

Heating Surface: 5295.8 ft² (492 m²)

Rotor Pressure Rating: 90 PSI (6 bar)

Operating Temperature: 327.2°F (164°C)

Steam Consumption: 3.8-5.6 tonnes/hr

Rotor Speed: 8 RPM

Gearbox: Santasalo 4 TC 630 NE

Motor Power: 240 HP (160 kW) – 1480 RPM – 400V / 50Hz / 3 Phase

Mounting: On 4 legs

Weight (Empty incl. Rotor): 72.7 tonnes

Previous Use: Fish Meal Drying

Specifications:

Industrial disc dryer for large-scale drying operations

Stainless steel contact surfaces for sanitary applications

High-capacity drying of 3.2-4.7 tonnes per hour

5295.8 ft² heating surface for efficient heat transfer

90 PSI rated rotor for optimal pressure and temperature control

Santasalo gearbox-driven system for smooth rotor operation

Heavy-duty 240 HP motor for continuous industrial use

Inspection doors for easy monitoring and maintenance

Mounted on four-leg structure for stability

Applications:

Fish Meal Processing – Drying of fish meal and marine by-products

Animal Feed Industry – Processing of protein-rich feed ingredients

Food Processing – Drying of food by-products and ingredients

Chemical & Industrial Drying – Powder drying, biomass, and sludge drying

Pharmaceutical Industry – Drying of bulk pharmaceutical powders

Oil & Gas Industry – Drying applications in petroleum processing
