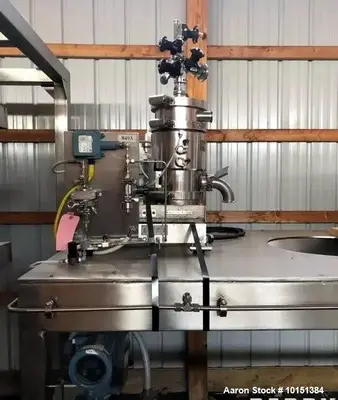

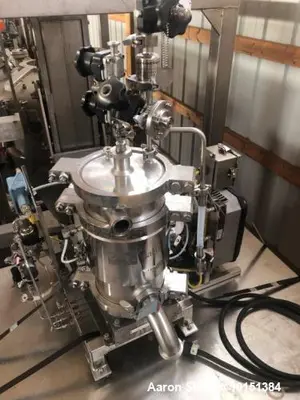

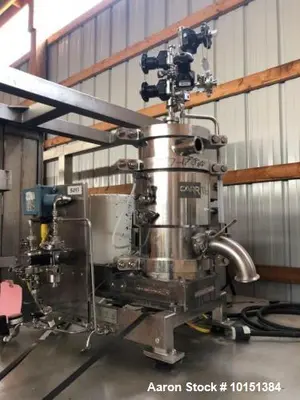

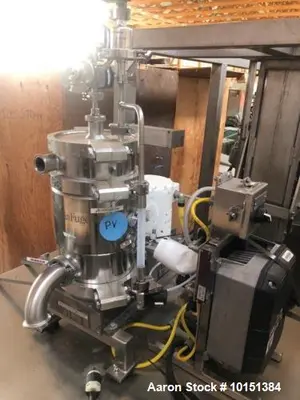

Used Carr 9004PLT Pilot Varifuge Solid Bowl Centrifuge, 316L Stainless Steel, Internal pressure: 40 psi/FV @ 300F Jacket pressure: 100 psi/FV @ 300, Max RPM: 15325, Max solids: 1.5 SG, Operating temperature: 2-40C Driven by a 1 hp motor, includes controls with enclosure. National Board 314, Serial# 458
Used Equipment Facts About This Machine
Brand: Carr
Model: 9004PLT Pilot Varifuge
Serial Number: 458
National Board Number: 314
Condition: Used
Description
The Carr 9004PLT Pilot Varifuge Solid Bowl Centrifuge is a high-speed solid-liquid separation system, designed for pilot-scale and small-batch processing in pharmaceutical, biotech, chemical, and food applications. Constructed with 316L stainless steel, this unit ensures hygienic operation, durability, and corrosion resistance.
With a maximum bowl speed of 15,325 RPM, this centrifuge is capable of handling solids with a specific gravity (SG) of up to 1.5. The system operates within a temperature range of 2-40°C and features an internal pressure rating of 40 psi/FV at 300°F and a jacket pressure rating of 100 psi/FV at 300°F.

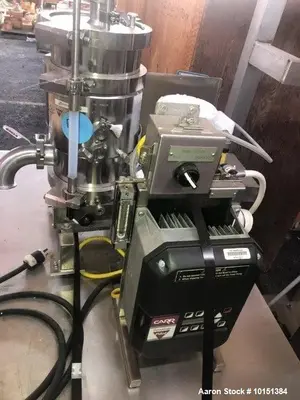

Powered by a 1 HP motor, this unit includes controls with an enclosure, making it ready for integration into laboratory and pilot production settings.
Specifications
Material: 316L Stainless Steel (Product Contact Areas)
Separation Type: Solid Bowl Centrifuge (Solid/Liquid Separation)
Bowl Speed: 15,325 RPM
Max Solids Density: 1.5 SG
Operating Temperature Range: 2-40°C
Internal Pressure: 40 psi/FV @ 300°F
Jacket Pressure: 100 psi/FV @ 300°F
Drive Type:
Motor Power: 1 HP
Included:
Controls with Enclosure
Applications
Pharmaceutical & Biotech Processing – High-purity separation of biological and chemical materials
Chemical Processing – Fine particle separation from solutions
Food & Beverage Processing – Small-batch clarification of liquid products
Pilot-Scale Research & Development – Process testing and optimization before full-scale production
Industrial Waste Management – Dewatering and impurity removal
Compatible Products
Laboratory and pilot-scale separation systems
Pharmaceutical and biotech centrifuge units
High-speed industrial filtration systems
Small-scale chemical and food processing equipment
