USED FUJI-PAUDAL QJ-400TG

Manufacturer Information:

Brand: Fuji Paudal

Model: QJ400TG

Material: 316 Stainless Steel Contact Parts

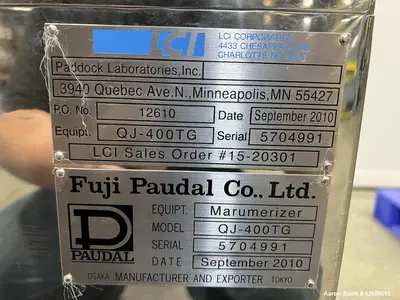

Serial Number: 5704991

Description:

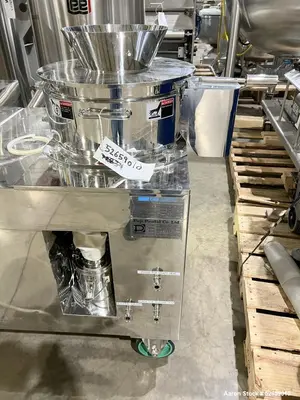

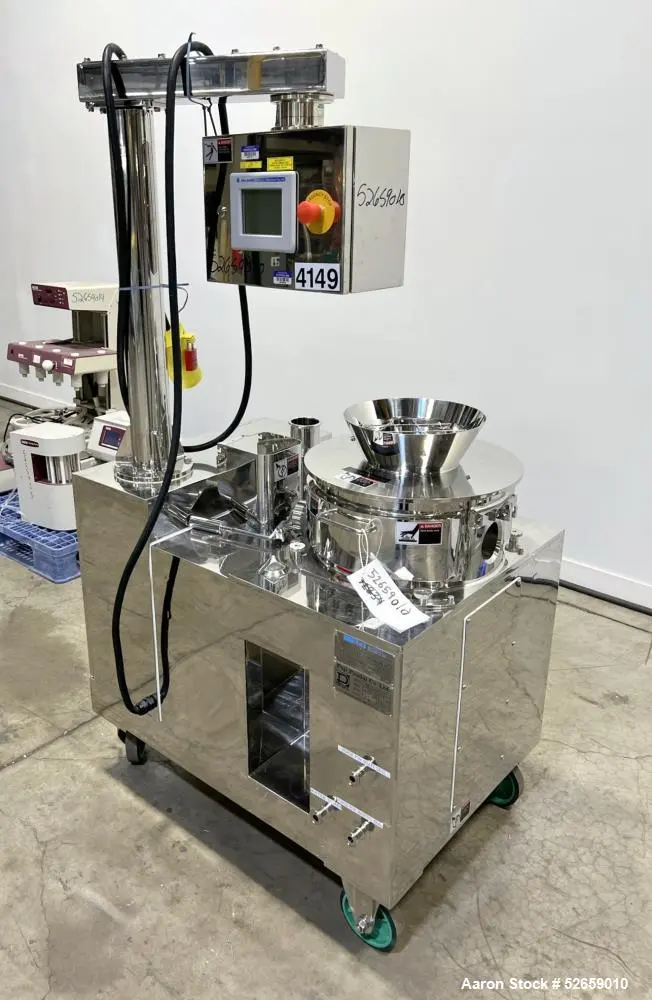

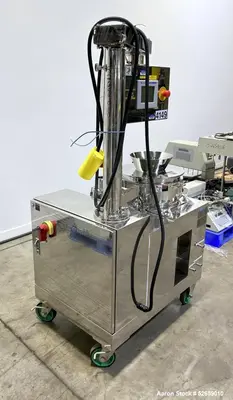

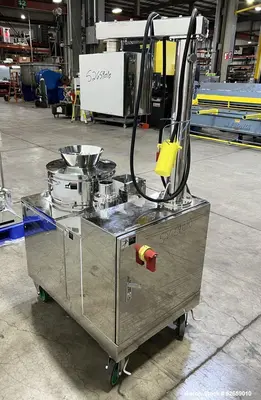

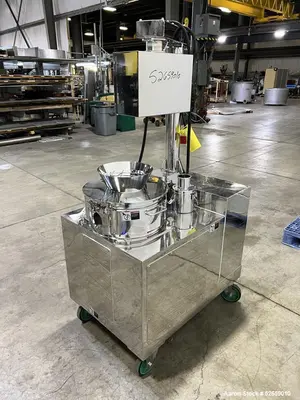

The Fuji Paudal QJ400TG Marumerizer Spheronizer is a high-performance spheronization system, designed for pharmaceutical, chemical, and food applications requiring uniform, high-density spherical granules.

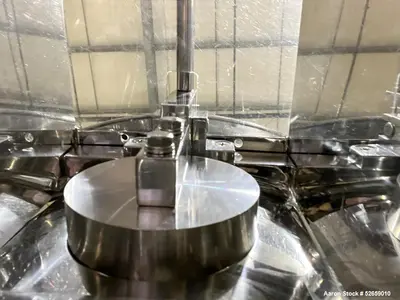

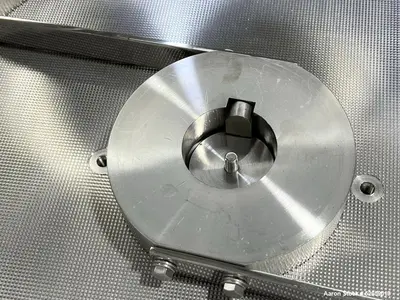

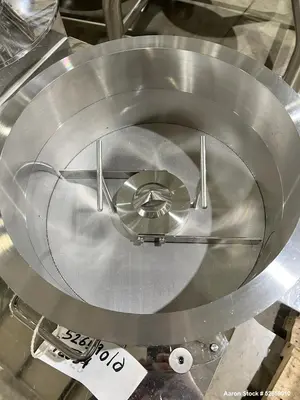

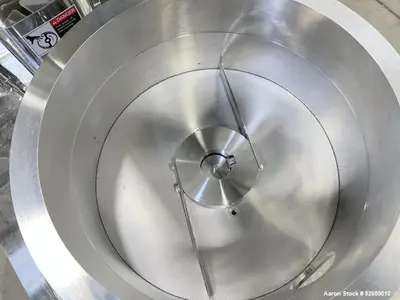

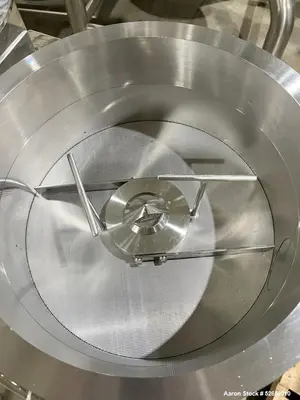

This unit features a 4L batch size and a 15-3/4” grooved spheronizing plate with a plate lift mechanism for efficient product handling. The 5” diameter rotor is equipped with (2) 8” long x 1” tall x 3/16” thick blades, ensuring consistent spheronization results.

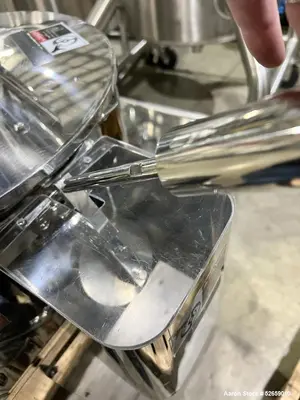

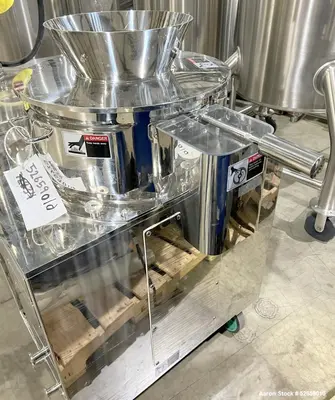

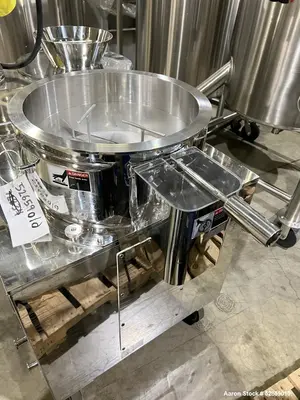

The system includes a jacketed 304 stainless steel bowl for temperature-controlled processing and a 3” diameter side discharge with a pneumatically operated plug valve for controlled product removal.

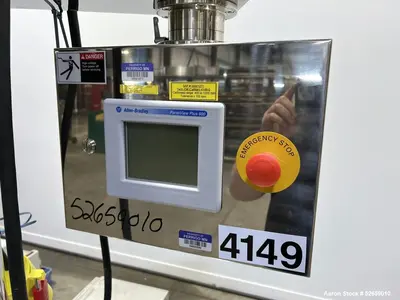

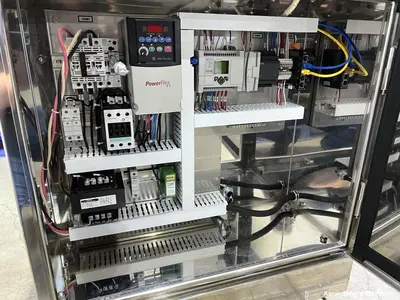

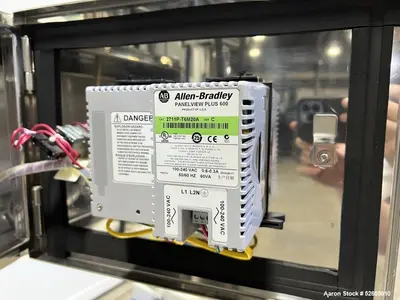

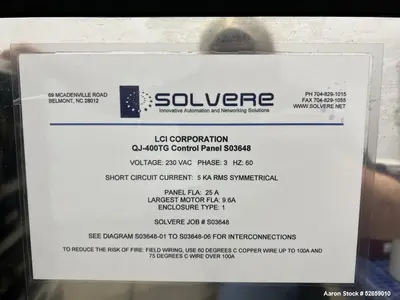

Equipped with Allen Bradley PanelView 600 HMI and Allen Bradley MicroLogix 1100 PLC controls, this spheronizer offers precise process automation and monitoring. The unit is mounted on casters for mobility and easy integration into production lines.
Key Features:

4L Batch Size for small to mid-scale production

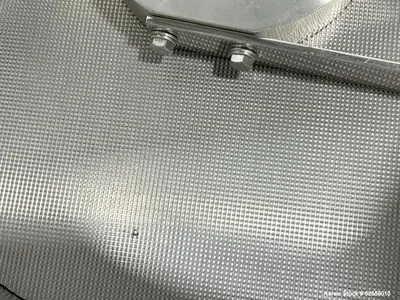

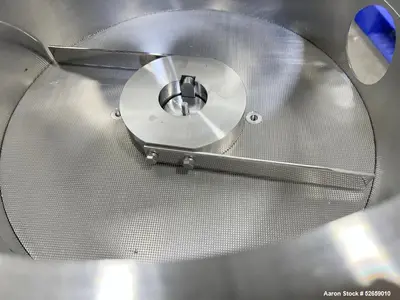

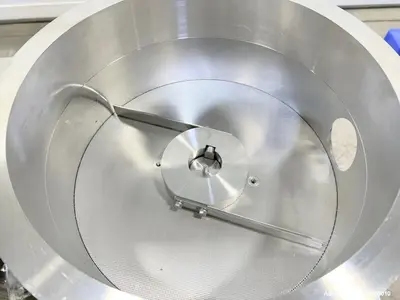

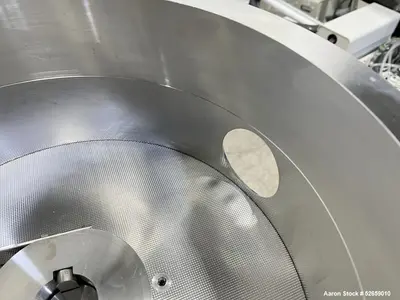

15-3/4” Grooved Spheronizing Plate with plate lift mechanism

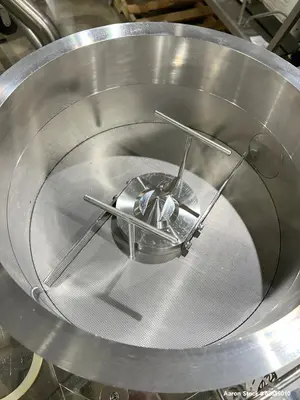

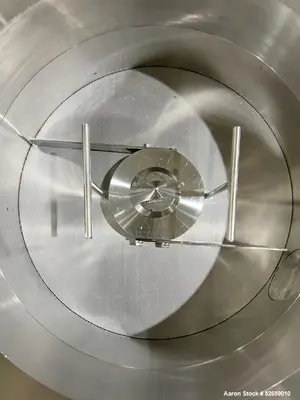

5” Diameter Rotor with (2) 8” Long x 1” Tall x 3/16” Thick Blades

316 Stainless Steel Contact Parts for hygienic and corrosion-resistant processing

304 Stainless Steel Jacketed Bowl for temperature-controlled operation

3” Side Discharge with Pneumatically Operated Plug Valve for efficient product handling

Allen Bradley PanelView 600 HMI for easy user interface and control

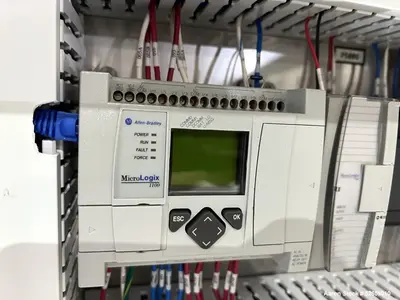

Allen Bradley MicroLogix 1100 PLC for process automation

Mounted on Casters for portability and flexibility

Specifications:

Machine Type: Marumerizer Spheronizer

Brand: Fuji Paudal

Model: QJ400TG

Batch Size: 4L

Plate Size: 15-3/4” Grooved Spheronizing Plate

Rotor Size: 5” Diameter

Rotor Blades: (2) 8” Long x 1” Tall x 3/16” Thick

Material: 316 SS Contact Parts, 304 SS Jacketed Bowl

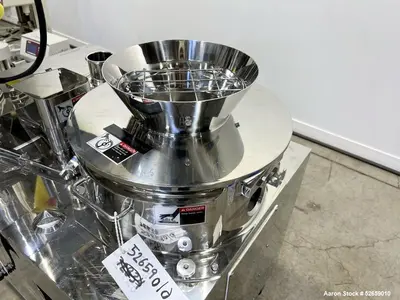

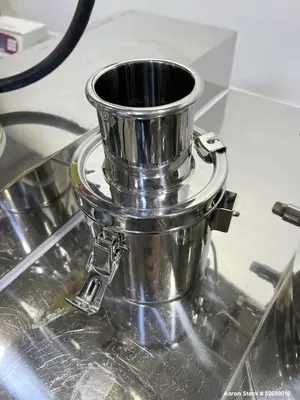

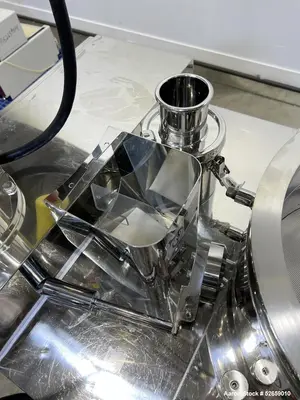

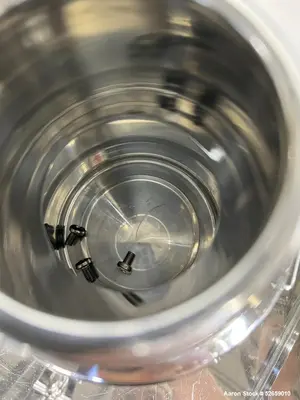

Feed Hopper: 8” Diameter with Safety Grate

Discharge: 3” Diameter Side Discharge with Pneumatic Plug Valve

Controls: Allen Bradley PanelView 600 HMI, MicroLogix 1100 PLC

Mounting: Casters for Mobility

Serial Number: 5704991

Applications:

Pharmaceutical Industry: Granule spheronization for uniform pellet production

Chemical Processing: Catalyst and powder spheronization for improved handling

Food & Nutraceuticals: Granulation of food ingredients and supplements

Cosmetics & Personal Care: Uniform bead formation for controlled formulations

Research & Development: Small-scale formulation testing and process optimization

What Products Would This Be Used For?

Pharmaceutical pellets and granules for controlled drug release
Chemical catalysts and high-density spherical materials
Food industry applications such as instant beverage granules
Nutraceutical and supplement tablet precursors
Cosmetic and skincare microbead formulations
