USED QUADRO ZCO

Manufacturer Information:

Brand: Quadro

Model: ZC0 Emulsifier / Disperser

Type: Powder/Liquid Emulsifier Mixer

Build Year: 2020

Condition: Unused – Still in Original Shipping Crate

Drive Motor: 3 HP, 3/60/460V, 3600 RPM SP Motor

Rotor Speed: 6500 RPM

Drive Type: V-Belt

Description:

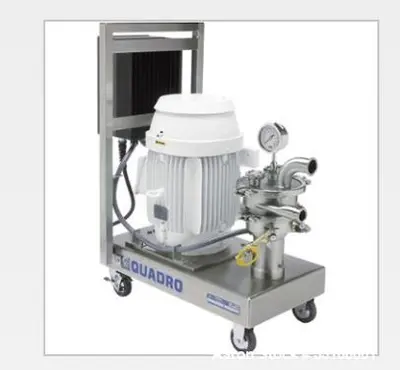

This Unused Quadro ZC0 Emulsifier Mixer, built in 2020, is a high-performance disperser designed to incorporate and emulsify powders into liquids in a single pass. Featuring a 3–12 GPM liquid throughput and 30 lbs/minute powder dispersion capacity, the unit is built with 316 stainless steel contact parts and a 304 stainless steel base with bead-blast finish.
The ZC0 uses an advanced rotor/stator reactor to apply intense shear, ensuring complete wetting of powders and eliminating lumps or fisheyes in the final product. It includes sanitary 1” inlet/outlet connections, swivel/rigid casters, and is powered by a 3 HP motor. Delivered unused and still in its original shipping crate, this unit is ready for immediate deployment in pharmaceutical, nutraceutical, food, cosmetic, or chemical production.

Specifications:

Model: ZC0

Liquid Capacity: Approx. 3–12 GPM

Powder Capacity: Approx. 30 lbs/min

Rotor Speed: 6500 RPM

Drive Type: V-Belt

Motor: 3 HP, 3 Phase, 60 Hz, 460V, 3600 RPM SP motor

Connections: 1” sanitary inlet/outlet

Construction:

Product Contact: 316 Stainless Steel

Non-Contact: 304 Stainless Steel

Base: 304 SS, bead-blast finish

Mobility:

(2) 3” Swivel Brake Casters

(2) 3” Rigid Casters

Condition: Unused – Still in Original Crate

Year Built: 2020

Features:

Designed for difficult-to-wet powders – eliminates lumps and fisheyes

High shear dispersion in a single-pass, continuous operation

Compact footprint with mobile caster base for portability

316 SS product contact surfaces ensure sanitary processing

V-belt driven with high-speed rotor/stator for intense mixing

Perfect for batch feeding, inline mixing, and continuous production

Delivered unused and in original packaging, ready for immediate install

Engineered for CIP/SIP systems and hygienic manufacturing lines

Applications:

Pharmaceutical: Wetting of APIs and excipients into water or solvents

Food & Beverage: Dispersing gums, starches, proteins, and sweeteners

Nutraceuticals: High-shear incorporation of vitamins, minerals, and actives

Cosmetics: Mixing of clays, pigments, thickeners, and oils into lotions/creams

Chemical Processing: Dispersing polymers, surfactants, and pigments

Personal Care: Uniform emulsification of powders into gels or creams

Dairy & Sauces: Shear-sensitive ingredient incorporation

What might this be used for?

Creating lump-free, homogenous suspensions of powder in liquid

Replacing slow manual addition or batch hydration with automated inline dispersion

Reducing waste and rework from incomplete powder hydration

Improving process speed and repeatability in critical mixing steps

Dispersing hydration-resistant powders like xanthan gum, CMC, or starch

Incorporating hygroscopic or agglomerating powders into water- or oil-based fluids

Scaling up from lab dispersers to production-level throughput

Mobile mixing in multi-room or cleanroom manufacturing environments

Deploying a ready-to-run, never-used emulsifier in time-sensitive projects
