USED ACRISON 403-30-50

Manufacturer Information:

Manufacturer: Acrison

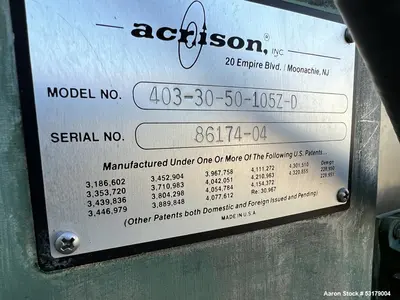

Model: 403-30-50-105Z-D

Material: 304 Stainless Steel

Serial Number: 86174-04

Condition: Used

Description:

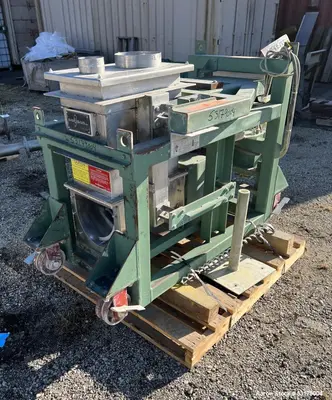

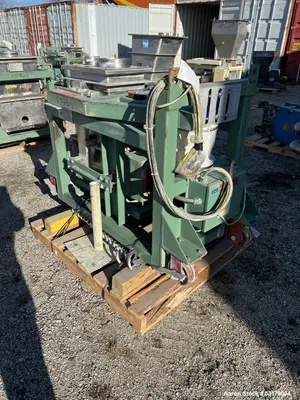

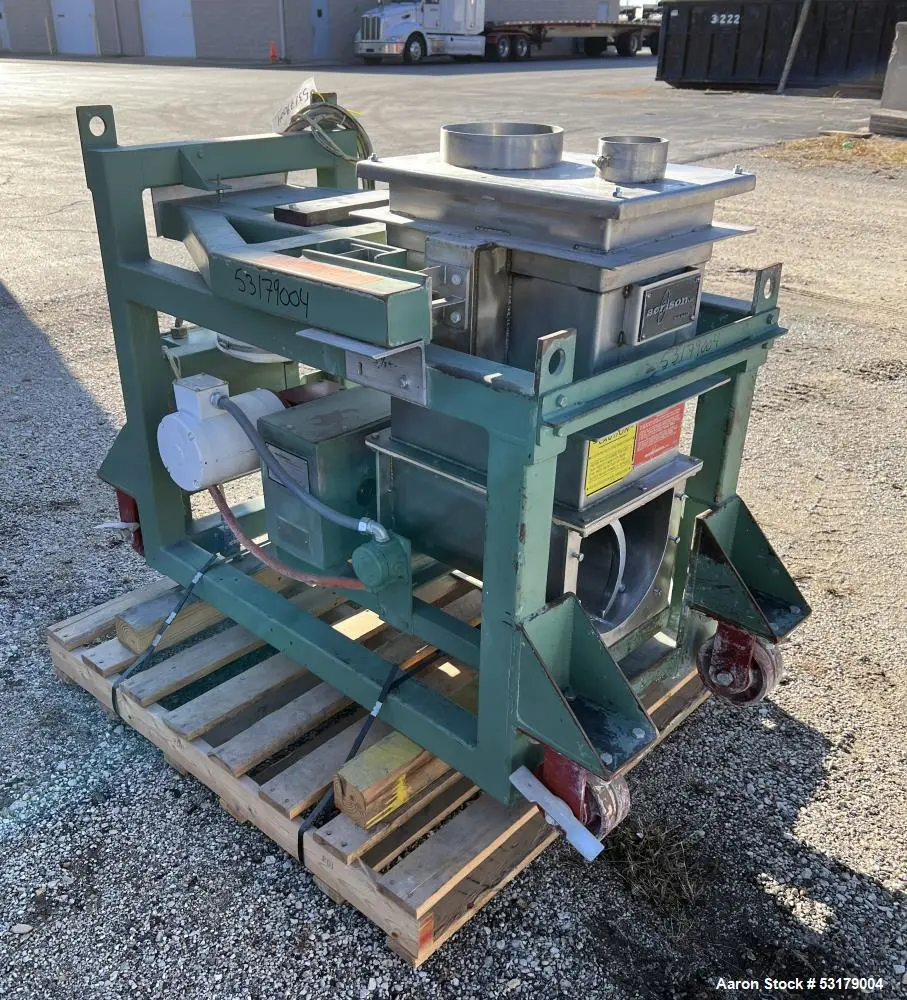

The Acrison Model 403-30-50-105Z-D Weight-Loss Weigh Feeder is a precision-controlled feeder designed for accurate bulk material feeding applications. Made from 304 stainless steel, this feeder supports a capacity range from 0.0012 to 202 cubic feet per hour and operates within a temperature range of -20 to 200°F. It features a 12” wide x 17.5” long top hopper with 3.75” and 7.75” diameter openings for efficient material flow.

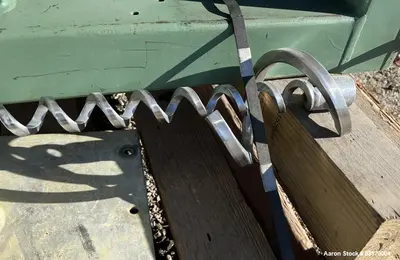

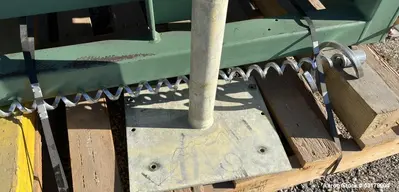

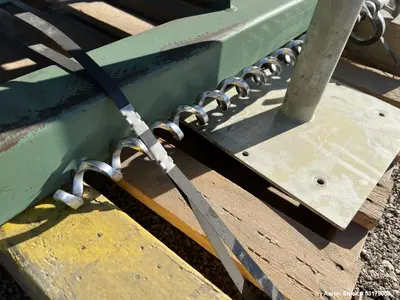

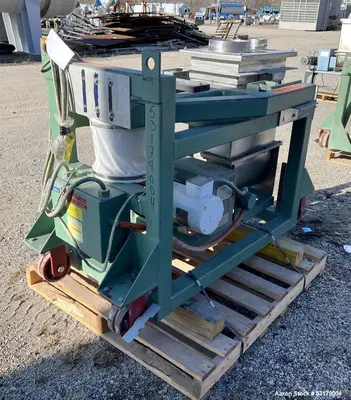

The unit is equipped with a 32” long x 4.5” diameter center screw with a 1.25” pitch, along with a chrome-plated center ribbon (8” diameter x 17.75” long) for optimal material movement. It is powered by a 1 HP, 3-phase, 60 Hz, 208-230/460V, 1725 RPM motor, driven through a 20:1 reducer ratio, and mounted on a sturdy frame for stability.

Specifications:

Model: 403-30-50-105Z-D

Material: 304 Stainless Steel

Capacity: 0.0012 to 202 cubic feet per hour

Product Temperature Range: -20°F to 200°F

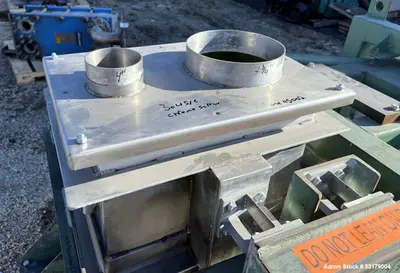

Top Hopper Size: 12” W x 17.5” L

Hopper Openings: 3.75” & 7.75” diameter

Chamber Dimensions: 11” W x 17.75” L x 9.5” H

Screw: 32” L x 4.5” D center screw with 1.25” pitch

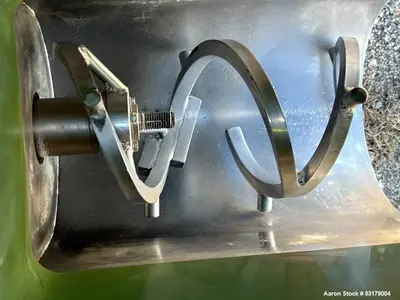

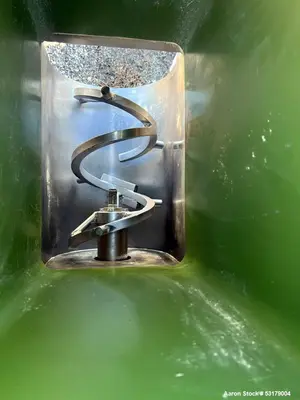

Ribbon: Chrome-plated, 8” D x 17.75” L

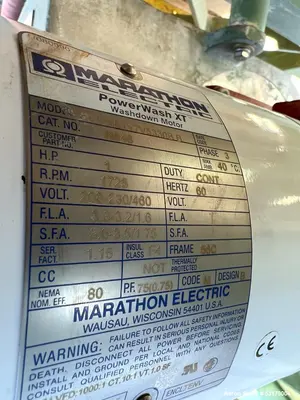

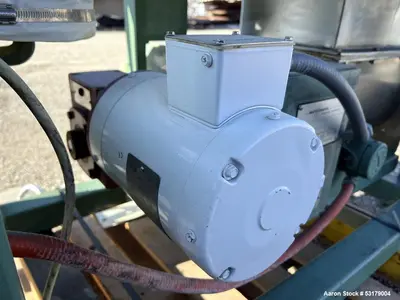

Motor: 1 HP, 3/60/208-230/460V, 1725 RPM

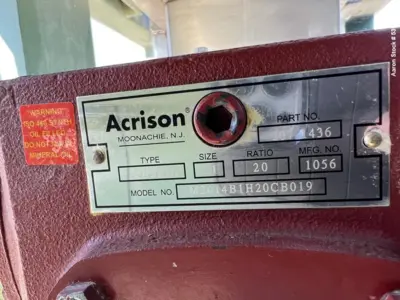

Reducer Ratio: 20:1

Mounting: Frame-mounted

Condition: Used

Applications:
The Acrison Weight-Loss Weigh Feeder is ideal for precise feeding and batching applications in industries such as:

Food Processing
Chemical Processing
Pharmaceuticals
Plastics & Resins
Additive Manufacturing
Powder Processing
Industrial Material Handling

What Products Would This Be Used For?

Fine powders and granules
Food ingredients and additives
Chemical and pharmaceutical compounds
Plastic pellets and resins
Dry bulk materials for precise dosing
Minerals and industrial powders
