| X-Axis | 24.21" | 614.93 mm |
| Y-Axis | 10.24" | 260.1 mm |
| Z-Axis | 27.36" | 694.94 mm |
| Swing | 25.2" | 640.08 mm |
| Machining Length | 24.76" | 628.9 mm |
| Turning Dia | 19.69" | 500.13 mm |
| Bar Capacity | 3.15" | 80.01 mm |

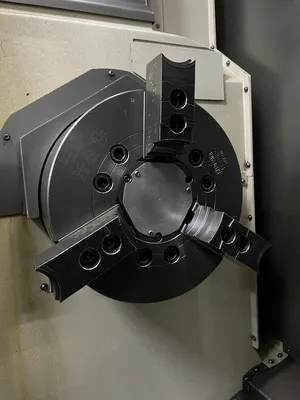

| Chuck Size | 12" | 304.8 mm |
| # Axis | 5 | 5 |
| Power | 30 hp | 22.4 kW |
| Max RPM | 4,000 RPM | 4,000 RPM |
| Taper | HSK | HSK |
| Tailstock (Yes/No) | Yes | Yes |
Mazatrol SMOOTHG CNC Control
Tool Eye (Automatic)
Mazak Monitoring System B (RMP60)
70kg Coolant Through Spindle (Super flow V30C-J)

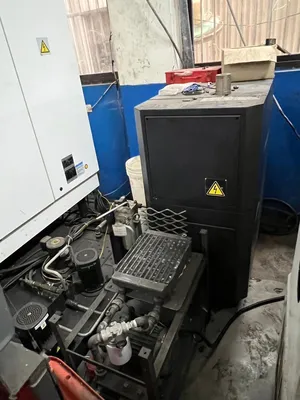

Chip Conveyor 650U
Auto Pecking Cycle w/ Load Detection
Milling Spindle Synchronous Tapping
Cooler for X-Axis Ball Screw
Coolant Through Milling Head

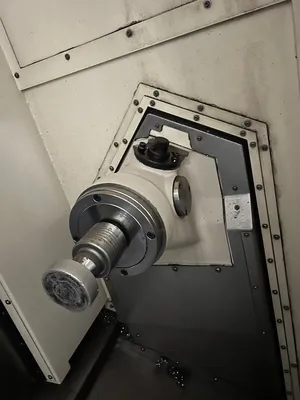

NC Tailstock (MT5)
