USED PAUL O ABBE RB-315

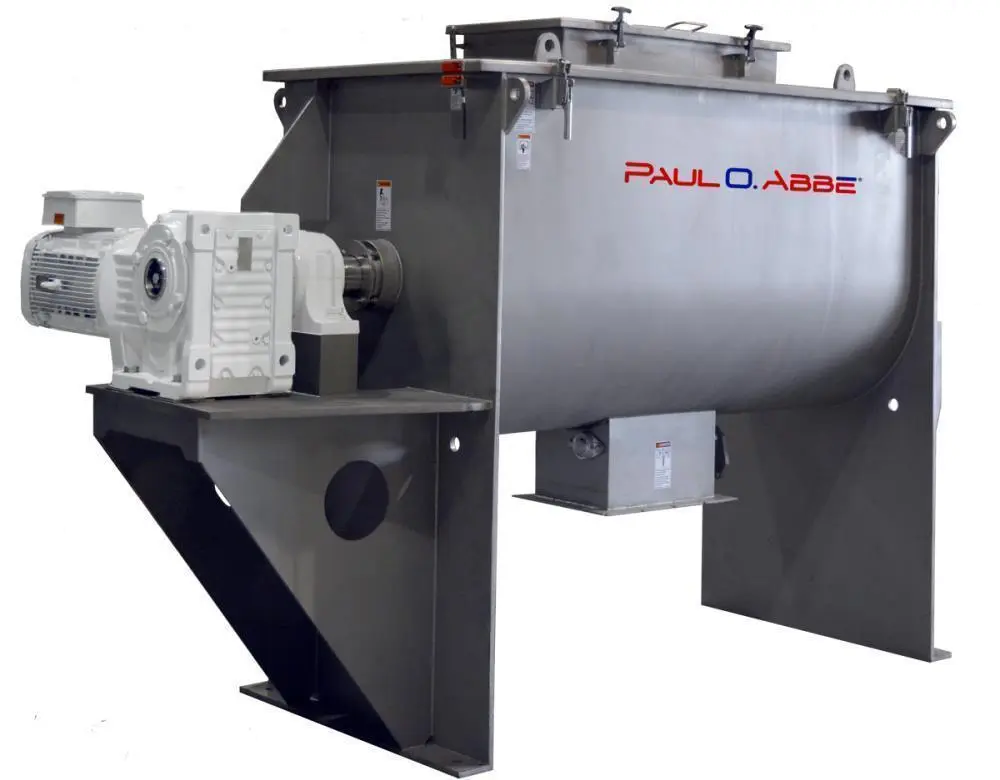

NEW- Paul O. Abbe, Model RB-315 Ribbon Blender. 315 Cubic Foot working capacity. 356 Cubic Foot total volume. Type 304 stainless steel polished. Food grade. All stainless steel construction. Trough dimensions: Approximately 65.4" wide x 141.8" long x 73.3" deep. Internal double spiral ribbon. Packing glands and pillow block bearings. 75 hp SEW Euro drive hollow bore design. 230/460 volt, 1775 rpm, 3/60 with approximately output 20 rpm. Top cover with hold down clamps and limit switch. Center Loading cover with welded safety grate, 30" wide x 50" long. Approximate 5.5" wide x 27.6" flush air operated plug valve. Discharge housing is approximate 20.5" wide x 36.2" long. Approximately 4" discharge height. Approximate weight 19,580 pounds. Approximate overall dimensions: 87.8" wide x 218.4" long x 100.4" high.Controls are available upon request.

Used Equipment Facts About This Machine
Manufacturer Information

Manufacturer: Paul O. Abbe

Model: RB-315

Condition: NEW & IN STOCK

Country of Origin: USA

Availability: Immediate

Description
NEW & IN STOCK! The Paul O. Abbe Model RB-315 Ribbon Blender is a high-capacity, industrial-grade mixer built for blending powders, granules, and bulk solids in food, pharmaceutical, chemical, and industrial processing applications. This blender boasts a 315 cubic foot working capacity and a 356 cubic foot total volume, ideal for large batch processing.
Constructed entirely from Type 304 polished stainless steel, the unit is food grade and features an internal double spiral ribbon for uniform and efficient mixing. The trough dimensions are approximately 65.4" wide x 141.8" long x 73.3" deep, offering ample space for product blending.
The blender is driven by a 75 HP SEW Eurodrive hollow bore motor, running on 230/460 volts, 1775 RPM, 3 phase / 60 Hz, with an output speed of approximately 20 RPM. Key features include a top cover with hold-down clamps and limit switch, a center loading cover with welded safety grate (30" x 50"), and an air-operated plug valve for discharge operations.
Weighing in at approximately 19,580 pounds, the unit has overall dimensions of 87.8" wide x 218.4" long x 100.4" high. Controls are available upon request.

Specifications

Manufacturer: Paul O. Abbe

Model: RB-315

Condition: NEW & IN STOCK

Construction: Type 304 Stainless Steel, Polished, Food Grade

Working Capacity: 315 Cubic Feet

Total Volume: 356 Cubic Feet

Trough Dimensions: 65.4" Wide x 141.8" Long x 73.3" Deep

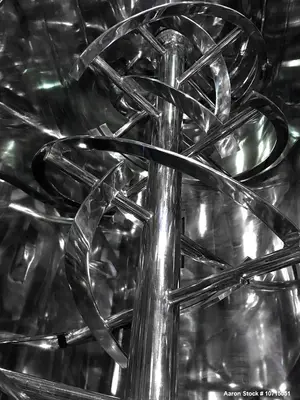

Internal Ribbon: Double Spiral Ribbon

Bearings: Packing Glands & Pillow Block Bearings

Motor Power: 75 HP SEW Eurodrive Hollow Bore

Electrical Requirements: 230/460 Volt, 1775 RPM, 3 Phase / 60 Hz

Output Speed: Approximately 20 RPM

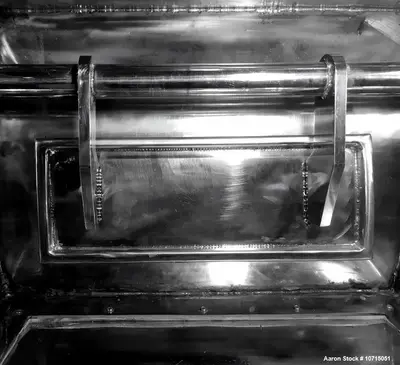

Top Cover: Hold-Down Clamps, Limit Switch

Center Loading Cover: Welded Safety Grate, 30" Wide x 50" Long

Discharge Valve: Flush Air Operated Plug Valve, 5.5" Wide x 27.6"

Discharge Housing: 20.5" Wide x 36.2" Long

Discharge Height: Approximately 4"

Weight: Approximately 19,580 lbs

Overall Dimensions: 87.8" Wide x 218.4" Long x 100.4" High

Controls: Available Upon Request

Applications

Food and beverage powder blending
Nutraceutical ingredient mixing
Pharmaceutical powder processing
Chemical blending applications
Plastic pellet and resin mixing
Fertilizer mixing
Animal feed blending
Cosmetic powder formulation
Bulk material processing
Industrial powder blending

Products This Blender Can Be Used For

Protein powders
Nutraceutical and dietary supplements
Pharmaceutical powders
Spices and flavorings
Chemicals and resins
Fertilizers and soil additives
Plastic pellets and compounds
Pet food and animal feeds
Cosmetic powders
Agricultural seed coatings
