USED PAUL O ABBE RB-265

Manufacturer Information

Manufacturer: Paul O. Abbe

Model: RB-265

Condition: NEW & IN STOCK

Country of Origin: USA

Availability: Immediate

Description

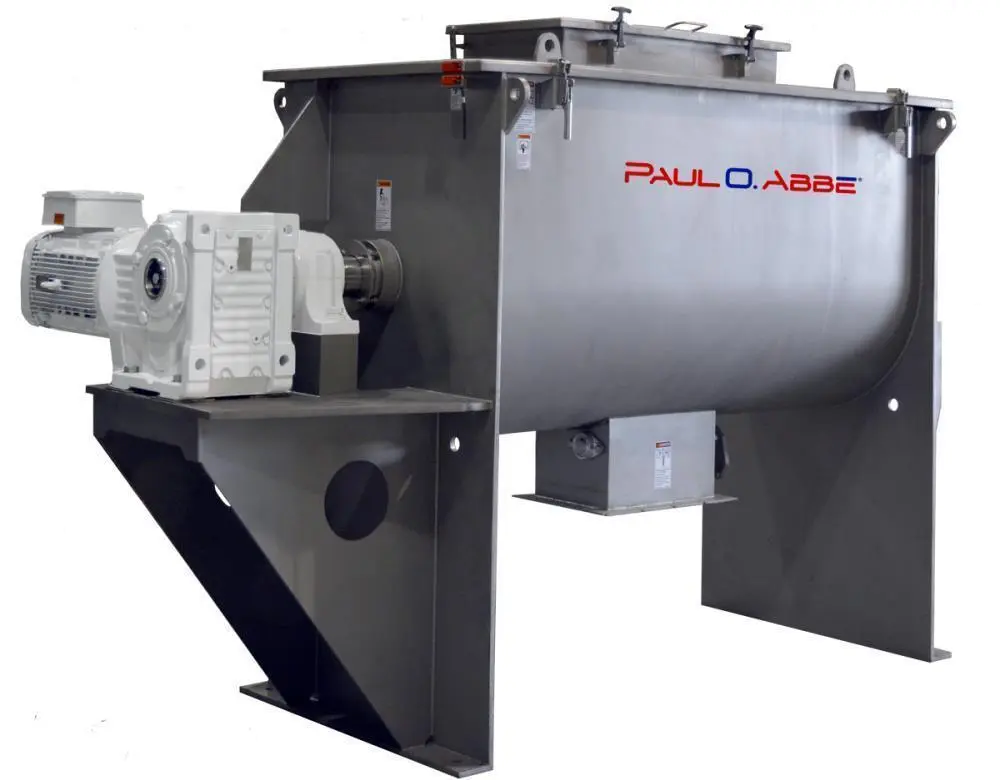

NEW & IN STOCK! This Paul O. Abbe Model RB-265 Ribbon Blender is a high-performance, industrial-grade mixing system designed for blending powders, granules, and bulk solids in large-scale food, pharmaceutical, chemical, and industrial processes. With a 265 cubic foot working capacity and a 289 cubic foot total volume, this blender offers high efficiency for bulk batch processing.

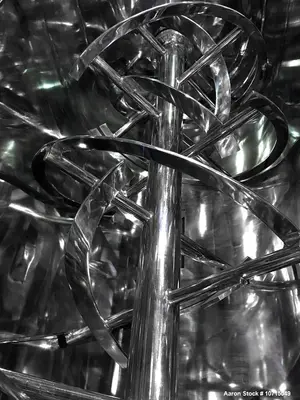

Fabricated entirely from Type 304 polished stainless steel, this food-grade ribbon blender ensures superior durability, corrosion resistance, and sanitary design. The internal double spiral ribbon provides fast, consistent, and uniform mixing. The trough measures approximately 63" wide x 130" long x 67.8" deep, offering ample capacity for a variety of dry materials.

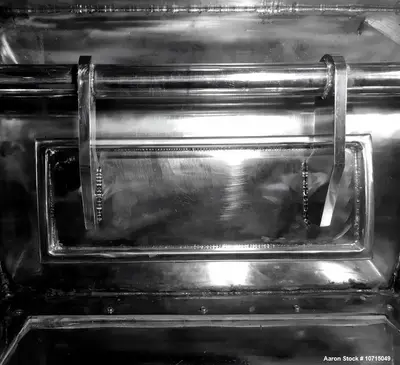

Powered by a robust 75 HP SEW Eurodrive hollow bore motor, operating at 230/460 volts, 1775 RPM, 3 phase / 60 Hz, with an output speed of approximately 26 RPM, the unit delivers dependable performance. Features include a top cover with hold-down clamps and limit switch for operator safety, a center loading cover with a welded safety grate (30" wide x 50" long), and an air-operated flush plug valve for discharge.
The discharge valve measures 4.7" wide x 27.6", and the discharge housing is approximately 20.5" wide x 36.2" long, with a 4" discharge height. The total unit weight is 14,960 pounds, and the approximate overall dimensions are 81" wide x 206.5" long x 94.8" high. Controls are available upon request.

Specifications

Manufacturer: Paul O. Abbe

Model: RB-265

Condition: NEW & IN STOCK

Construction: Type 304 Polished Stainless Steel, Food Grade

Working Capacity: 265 Cubic Feet

Total Volume: 289 Cubic Feet

Trough Dimensions: 63" Wide x 130" Long x 67.8" Deep

Mixing Element: Internal Double Spiral Ribbon

Bearings: Packing Glands & Pillow Block Bearings

Motor: 75 HP SEW Eurodrive Hollow Bore

Electrical Requirements: 230/460 Volt, 1775 RPM, 3 Phase / 60 Hz

Output Speed: Approximately 26 RPM

Top Cover: Hold-Down Clamps with Limit Switch

Center Loading Cover: Welded Safety Grate, 30" Wide x 50" Long

Discharge Valve: 4.7" Wide x 27.6" Flush Air-Operated Plug Valve

Discharge Housing: 20.5" Wide x 36.2" Long

Discharge Height: Approximately 4"

Weight: Approximately 14,960 lbs

Overall Dimensions: 81" Wide x 206.5" Long x 94.8" High

Controls: Available Upon Request

Applications

Food and beverage powder blending
Nutraceutical ingredient mixing
Pharmaceutical powder processing
Chemical and resin blending
Plastic pellet and compound mixing
Fertilizer blending
Animal feed production
Cosmetic powders and ingredients
Industrial bulk material processing
Construction and building material mixing

Products This Blender Can Be Used For

Protein powders and meal replacements
Nutraceutical and dietary supplements
Pharmaceutical powders and intermediates
Dry spices and seasoning blends
Plastic pellets and resin blends
Organic and synthetic fertilizers
Pet food and animal feeds
Cosmetic powders and additives
Agricultural seeds and coatings
Dry building materials (cement, gypsum
