USED PAUL O ABBE RB-195

Manufacturer Information

Manufacturer: Paul O. Abbe

Model: RB-195

Condition: NEW & IN STOCK

Country of Origin: USA

Availability: Immediate

Description

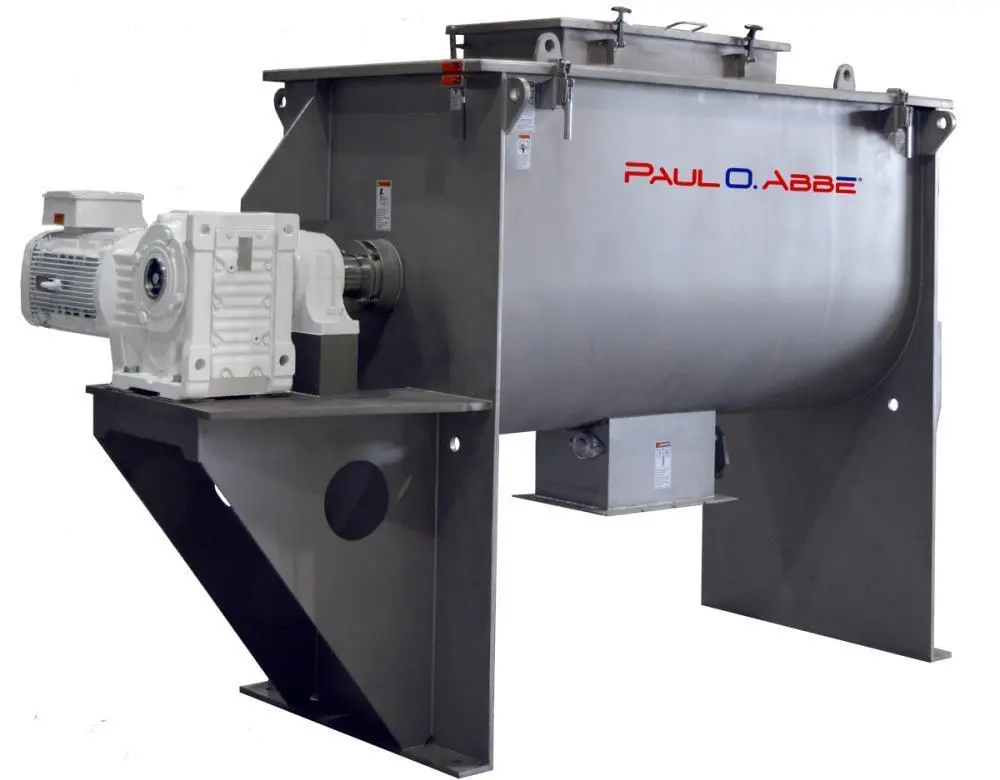

NEW & IN STOCK! The Paul O. Abbe Model RB-195 Ribbon Blender is a high-performance, industrial-grade mixer designed for large-scale blending of powders, granules, and bulk solids. With a 195 cubic foot working capacity and a 220 cubic foot total volume, it’s an ideal solution for food, pharmaceutical, chemical, and industrial processing applications.
This blender is constructed entirely of Type 304 polished stainless steel, meeting food-grade standards and ensuring superior durability and corrosion resistance. Its internal double spiral ribbon guarantees efficient and uniform mixing. The trough dimensions are approximately 56.7" wide x 118.2" long x 62.6" deep.
Driven by a powerful 60 HP SEW Eurodrive hollow bore motor, operating on 230/460 volts, 1775 RPM, 3 phase / 60 Hz, with an output speed of approximately 29 RPM, this unit delivers reliable performance. It features a top cover with hold-down clamps and a limit switch, as well as a center loading cover with a welded safety grate (30" x 50").
Discharge is handled by an air-operated flush plug valve, measuring 4.7" wide x 19.7", with a discharge housing approximately 20.5" wide x 28.4" long and a 4" discharge height. The blender weighs approximately 11,660 pounds with overall dimensions of 76.4" wide x 183" long x 93.8" high. Controls are available upon request.

Specifications

Manufacturer: Paul O. Abbe

Model: RB-195

Condition: NEW & IN STOCK

Construction: Type 304 Stainless Steel, Polished, Food Grade

Working Capacity: 195 Cubic Feet

Total Volume: 220 Cubic Feet

Trough Dimensions: 56.7" Wide x 118.2" Long x 62.6" Deep

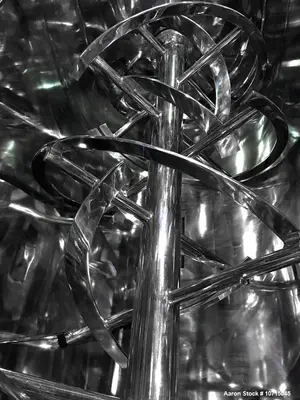

Internal Ribbon: Double Spiral Ribbon

Bearings: Packing Glands & Pillow Block Bearings

Motor Power: 60 HP SEW Eurodrive Hollow Bore

Electrical Requirements: 230/460 Volt, 1775 RPM, 3 Phase / 60 Hz

Output Speed: Approximately 29 RPM

Top Cover: Hold-Down Clamps, Limit Switch

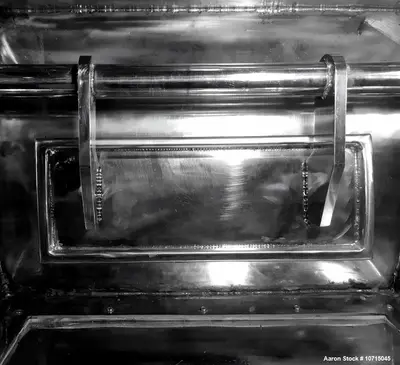

Center Loading Cover: Welded Safety Grate, 30" Wide x 50" Long

Discharge Valve: Flush Air Operated Plug Valve, 4.7" Wide x 19.7"

Discharge Housing: 20.5" Wide x 28.4" Long

Discharge Height: Approximately 4"

Weight: Approximately 11,660 lbs

Overall Dimensions: 76.4" Wide x 183" Long x 93.8" High

Controls: Available Upon Request

Applications

Food and beverage powder blending
Nutraceutical ingredient mixing
Pharmaceutical powder processing
Dry chemical blending
Plastic pellet and resin mixing
Fertilizer blending
Animal feed production
Cosmetic powder processing
Bulk material mixing
Industrial powder blending applications

Products This Blender Can Be Used For

Protein powders
Nutraceutical and dietary supplements
Pharmaceutical powders
Spices and flavorings
Chemicals and resins
Fertilizers and soil amendments
Plastic pellets and compounds
Animal and pet feeds
Cosmetic powders
Agricultural seed coatings
