USED PAUL O ABBE RB-165

Manufacturer: Paul O. Abbe

Model: RB-165

Condition: NEW & IN STOCK

Country of Origin: USA

Availability: Immediate

Description

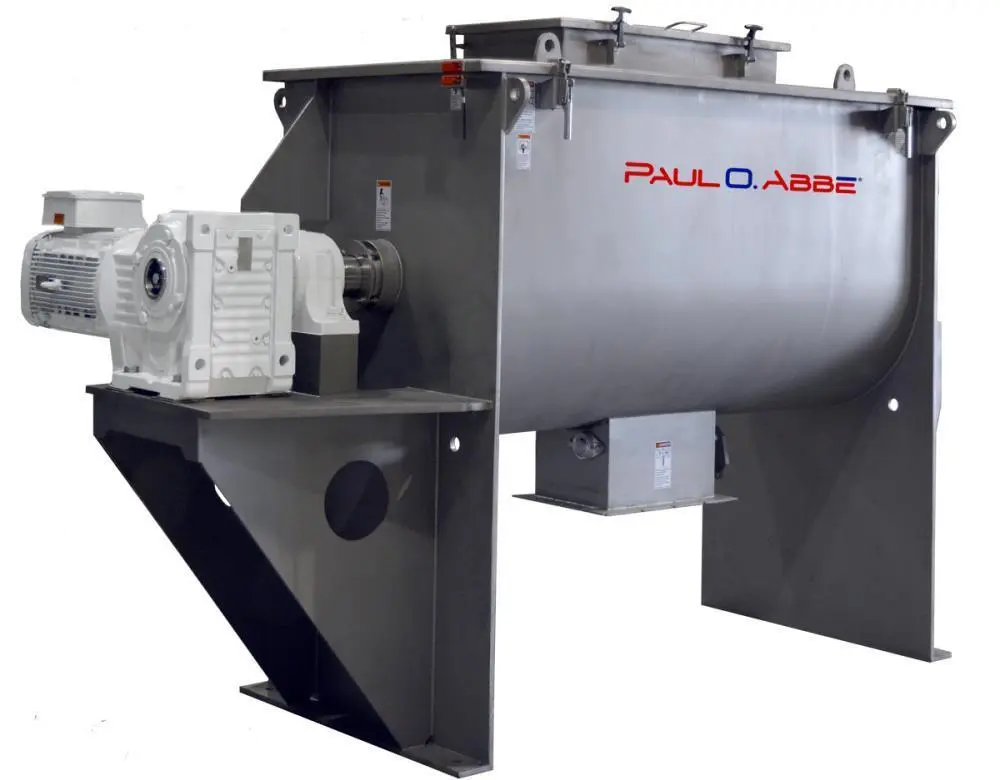

NEW & IN STOCK! The Paul O. Abbe Model RB-165 Ribbon Blender is an industrial-grade, high-performance mixer built for the blending of powders, granules, and bulk solids. With a 165 cubic foot working capacity and 180 cubic foot total volume, this unit is designed for large-scale food, pharmaceutical, chemical, and industrial blending operations.

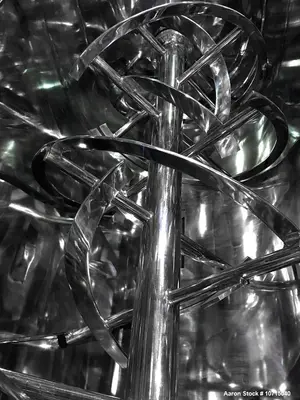

Fabricated from Type 304 polished stainless steel, this ribbon blender meets food-grade standards and is highly resistant to corrosion. Its internal double spiral ribbon ensures efficient and uniform blending. The trough dimensions are approximately 53.6" wide x 110.3" long x 58.3" deep, providing ample space for batch processing.

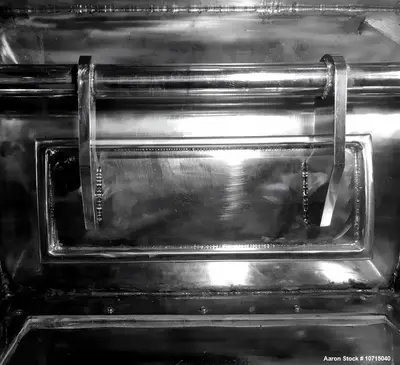

The unit is powered by a 50 HP SEW Eurodrive hollow bore motor, operating at 230/460 volts, 1775 RPM, 3 phase / 60 Hz, with an output speed of approximately 28 RPM. It includes a top cover with hold-down clamps and a limit switch, a center loading cover with a welded safety grate (30" wide x 50" long), and an air-operated flush plug valve (4.7" wide x 19.7") for efficient discharge.
The discharge housing measures approximately 20.5" wide x 28.4" long, with a 4" discharge height. The blender weighs approximately 10,164 pounds and has overall dimensions of 74" wide x 167" long x 85.5" high. Controls are available upon request.

Specifications

Manufacturer: Paul O. Abbe

Model: RB-165

Condition: NEW & IN STOCK

Construction: Type 304 Polished Stainless Steel, Food Grade

Working Capacity: 165 Cubic Feet

Total Volume: 180 Cubic Feet

Trough Dimensions: 53.6" Wide x 110.3" Long x 58.3" Deep

Mixing Element: Internal Double Spiral Ribbon

Bearings: Packing Glands & Pillow Block Bearings

Motor: 50 HP SEW Eurodrive Hollow Bore

Electrical Requirements: 230/460 Volt, 1775 RPM, 3 Phase / 60 Hz

Output Speed: Approximately 28 RPM

Top Cover: Hold-Down Clamps with Limit Switch

Center Loading Cover: Welded Safety Grate, 30" Wide x 50" Long

Discharge Valve: 4.7" Wide x 19.7" Flush Air-Operated Plug Valve

Discharge Housing: 20.5" Wide x 28.4" Long

Discharge Height: Approximately 4"

Weight: Approximately 10,164 lbs

Overall Dimensions: 74" Wide x 167" Long x 85.5" High

Controls: Available Upon Request

Applications

Food processing and powder blending
Pharmaceutical powder mixing
Nutraceutical ingredient blending
Chemical and resin mixing
Plastic pellet and compound blending
Fertilizer blending
Animal feed production
Cosmetic powder processing
Bulk material blending
Construction material mixing

Products This Blender Can Be Used For

Protein powders and meal replacements
Nutraceutical and dietary supplements
Pharmaceutical powders and granules
Spices and seasoning blends
Chemicals and resins
Fertilizers and soil amendments
Plastic pellets and additives
Animal and pet feed blends
Cosmetic powders
Dry building materials
