USED PAUL O ABBE RB-135

Manufacturer Information

Manufacturer: Paul O. Abbe

Model: RB-135

Condition: NEW & IN STOCK

Country of Origin: USA

Availability: Immediate

Description

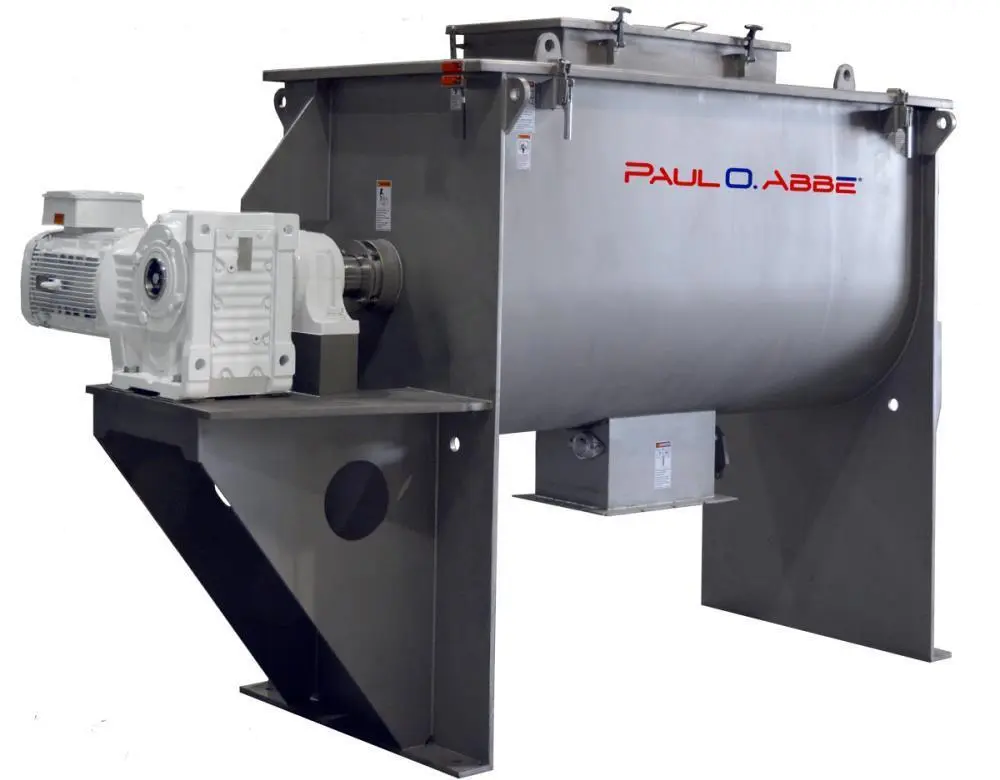

NEW & IN STOCK! The Paul O. Abbe Model RB-135 Ribbon Blender is a high-efficiency, industrial-grade mixer designed for blending powders, granules, and bulk solids. With a 135 cubic foot working capacity and a 146 cubic foot total volume, this ribbon blender is ideal for large-scale applications in the food, pharmaceutical, chemical, and nutraceutical industries.

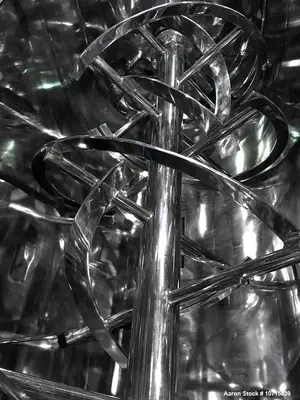

Manufactured with Type 304 polished stainless steel, this food-grade blender ensures sanitary operation and durability. The internal double spiral ribbon design guarantees uniform mixing and quick blending cycles. The trough dimensions are approximately 49.6" wide x 105.5" long x 53.6" deep, providing ample space for batch production.
Powered by a 40 HP SEW Eurodrive hollow bore motor, operating at 230/460 volts, 1775 RPM, 3 phase / 60 Hz, with an approximate output speed of 33 RPM, this blender delivers consistent and reliable performance. Safety features include a top cover with hold-down clamps and a limit switch, and a center loading cover with a welded safety grate (30" wide x 50" long).
Discharge is managed through a 4.7" wide x 19.7" air-operated flush plug valve, with a discharge housing approximately 20.5" wide x 28.4" long, and a discharge height of approximately 8", making it ideal for integration with downstream equipment. The total weight of the unit is approximately 7,920 pounds, with overall dimensions of 64.8" wide x 158.3" long x 84.7" high. Controls are available upon request.

Specifications

Manufacturer: Paul O. Abbe

Model: RB-135

Condition: NEW & IN STOCK

Construction: Type 304 Polished Stainless Steel, Food Grade

Working Capacity: 135 Cubic Feet

Total Volume: 146 Cubic Feet

Trough Dimensions: 49.6" Wide x 105.5" Long x 53.6" Deep

Mixing Element: Internal Double Spiral Ribbon

Bearings: Packing Glands & Pillow Block Bearings

Motor: 40 HP SEW Eurodrive Hollow Bore

Electrical Requirements: 230/460 Volt, 1775 RPM, 3 Phase / 60 Hz

Output Speed: Approximately 33 RPM

Top Cover: Hold-Down Clamps with Limit Switch

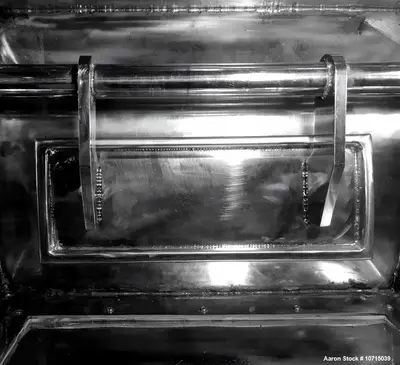

Center Loading Cover: Welded Safety Grate, 30" Wide x 50" Long

Discharge Valve: 4.7" Wide x 19.7" Flush Air-Operated Plug Valve

Discharge Housing: 20.5" Wide x 28.4" Long

Discharge Height: Approximately 8"

Weight: Approximately 7,920 lbs

Overall Dimensions: 64.8" Wide x 158.3" Long x 84.7" High

Controls: Available Upon Request

Applications

Food and beverage powder blending
Nutraceutical ingredient mixing
Pharmaceutical powder processing
Chemical blending applications
Plastic pellets and resin mixing
Fertilizer blending
Animal feed production
Cosmetic powder formulation
Bulk material processing
Industrial powder blending

Products This Blender Can Be Used For

Protein powders
Nutraceutical and dietary supplements
Pharmaceutical powders
Spices and seasoning blends
Chemicals and resins
Fertilizers and soil amendments
Plastic pellets and compounds
Pet food and animal feeds
Cosmetic powders
Agricultural seed coatings
