USED PAUL O ABBE RB-100

Manufacturer Information

Manufacturer: Paul O. Abbe

Model: RB-100

Condition: NEW & IN STOCK

Country of Origin: USA

Availability: Immediate

Description

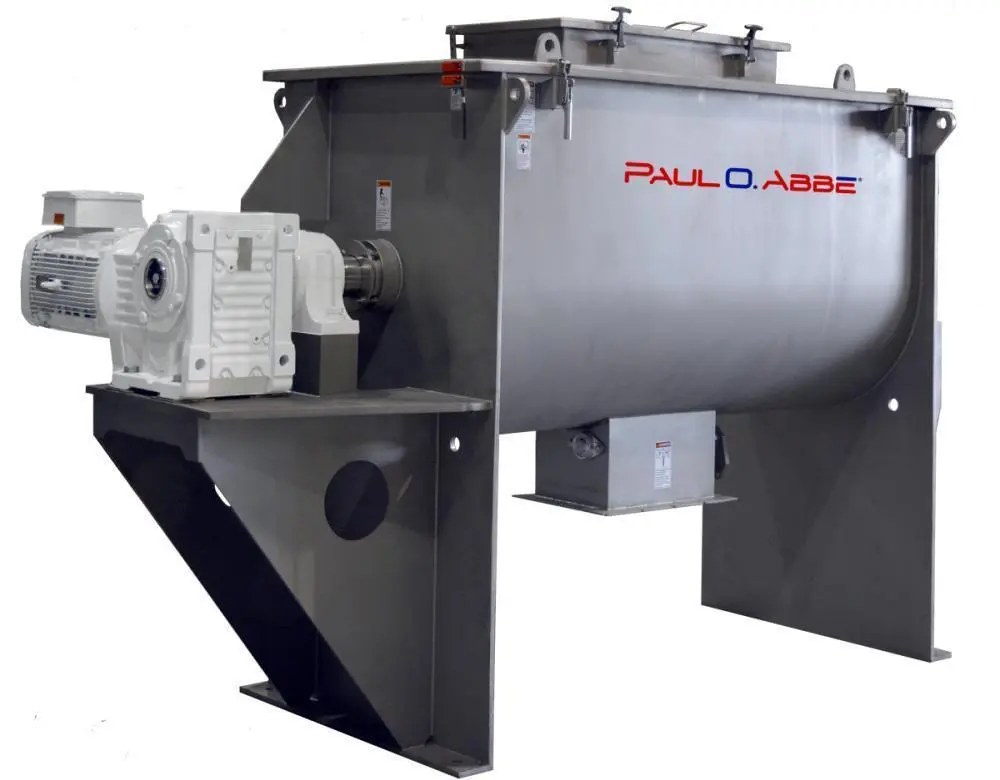

NEW & IN STOCK! The Paul O. Abbe Model RB-100 Ribbon Blender is a versatile, industrial-grade mixer built for blending powders, granules, and bulk solids. With a 100 cubic foot working capacity and a 108 cubic foot total volume, this ribbon blender is well-suited for mid-size batch processing in food, pharmaceutical, chemical, and nutraceutical industries.
Crafted from Type 304 polished stainless steel, this food-grade blender ensures sanitary operation, corrosion resistance, and long-lasting durability. The internal double spiral ribbon provides efficient, uniform mixing. The trough dimensions are approximately 44.9" wide x 93.8" long x 49.3" deep, designed for seamless blending operations.
Driven by a 30 HP SEW Eurodrive hollow bore motor, operating on 230/460 volt, 1775 RPM, 3-phase / 60 Hz, with an output speed of approximately 31 RPM, this unit delivers dependable and consistent performance. Safety features include a top cover with hold-down clamps and limit switch, and a center loading cover with welded safety grate (30" wide x 50" long) for added safety and efficiency.
The discharge system features a 4.7" wide x 14.2" flush air-operated plug valve, a discharge housing approximately 18.5" wide x 24" long, and an 8" discharge height, providing compatibility with various material handling equipment. The total weight is approximately 7,260 pounds, with overall dimensions of 63.3" wide x 146.4" long x 80.8" high. Controls are available upon request.

Specifications

Manufacturer: Paul O. Abbe

Model: RB-100

Condition: NEW & IN STOCK

Construction: Type 304 Polished Stainless Steel, Food Grade

Working Capacity: 100 Cubic Feet

Total Volume: 108 Cubic Feet

Trough Dimensions: 44.9" Wide x 93.8" Long x 49.3" Deep

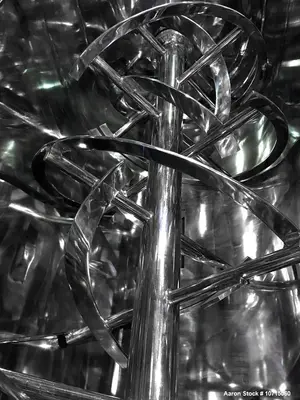

Mixing Element: Internal Double Spiral Ribbon

Bearings: Packing Glands & Pillow Block Bearings

Motor: 30 HP SEW Eurodrive Hollow Bore

Electrical Requirements: 230/460 Volt, 1775 RPM, 3 Phase / 60 Hz

Output Speed: Approximately 31 RPM

Top Cover: Hold-Down Clamps with Limit Switch

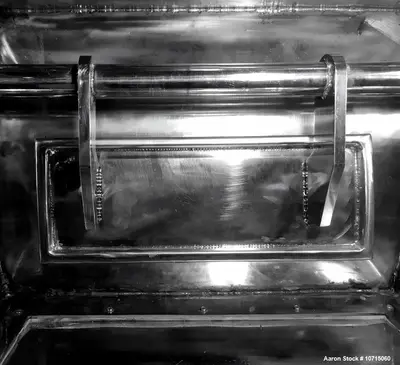

Center Loading Cover: Welded Safety Grate, 30" Wide x 50" Long

Discharge Valve: 4.7" Wide x 14.2" Flush Air-Operated Plug Valve

Discharge Housing: 18.5" Wide x 24" Long

Discharge Height: Approximately 8"

Weight: Approximately 7,260 lbs

Overall Dimensions: 63.3" Wide x 146.4" Long x 80.8" High

Controls: Available Upon Request

Applications

Food processing and powder blending
Nutraceutical ingredient mixing
Pharmaceutical powder processing
Chemical blending applications
Plastic pellets and resin mixing
Fertilizer blending
Animal feed production
Cosmetic powder processing
Bulk material blending
Industrial dry mixing

Products This Blender Can Be Used For

Protein powders
Nutraceutical and dietary supplements
Pharmaceutical powders and granules
Spices and seasoning blends
Chemicals and resins
Fertilizers and soil amendments
Plastic pellets and compounds
Pet food and animal feed
Cosmetic powders
Agricultural seed coatings
