USED PAUL O ABBE RB-65

Manufacturer Information

Manufacturer: Paul O. Abbe

Model: RB-65

Condition: NEW & IN STOCK

Country of Origin: USA

Availability: Immediate

Description

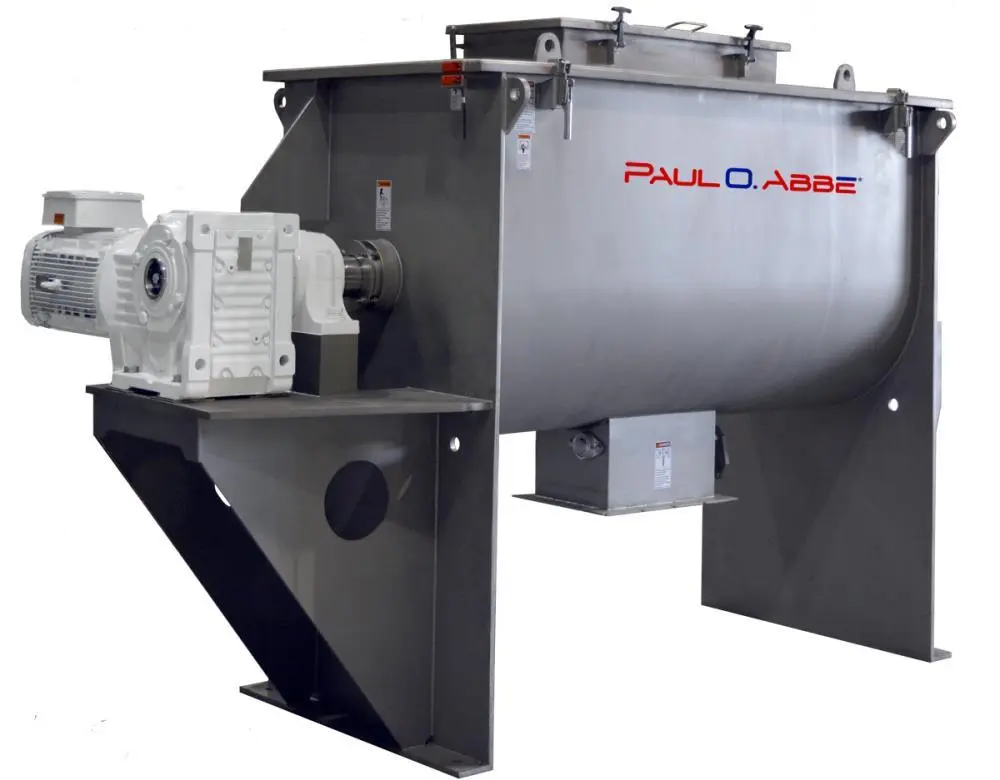

NEW & IN STOCK! The Paul O. Abbe Model RB-65 Ribbon Blender is a versatile and durable industrial mixer designed for consistent blending of powders, granules, and bulk solids. With a 65 cubic foot working capacity and a 72 cubic foot total volume, this mid-sized ribbon blender is perfect for food, chemical, pharmaceutical, nutraceutical, and industrial applications.

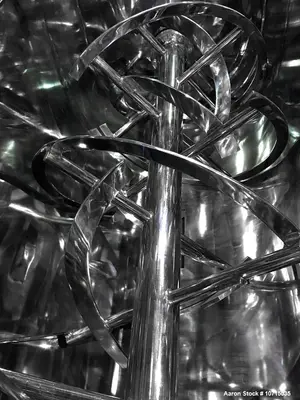

This blender is constructed from Type 304 polished stainless steel, ensuring food-grade sanitation and corrosion resistance. The internal double spiral ribbon guarantees uniform and efficient blending, reducing mix times and improving batch consistency. The trough dimensions are approximately 39.4" wide x 78.8" long x 44.1" deep, providing optimal volume for medium-scale processing.

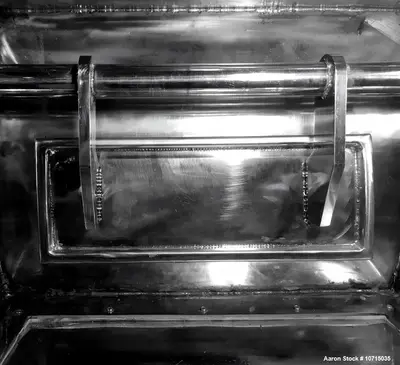

Powered by a 30 HP SEW Eurodrive hollow bore motor, operating at 230/460 volts, 1775 RPM, 3 phase / 60 Hz, with an approximate output speed of 36 RPM, this unit offers powerful performance and reliability. It includes a top cover with hold-down clamps and limit switch for safety, and a center loading cover with a welded safety grate (30" wide x 50" long) for safe and efficient loading.
The discharge system includes a 4.7" wide x 14.2" flush air-operated plug valve, with a discharge housing approximately 18.5" wide x 24" long, and an approximately 23" discharge height, allowing for easy product discharge and integration with downstream equipment. The blender weighs approximately 5,060 pounds, with overall dimensions of 60.6" wide x 131.4" long x 90.3" high. Controls are available upon request.

Specifications

Manufacturer: Paul O. Abbe

Model: RB-65

Condition: NEW & IN STOCK

Construction: Type 304 Polished Stainless Steel, Food Grade

Working Capacity: 65 Cubic Feet

Total Volume: 72 Cubic Feet

Trough Dimensions: 39.4" Wide x 78.8" Long x 44.1" Deep

Mixing Element: Internal Double Spiral Ribbon

Bearings: Packing Glands & Pillow Block Bearings

Motor: 30 HP SEW Eurodrive Hollow Bore

Electrical Requirements: 230/460 Volt, 1775 RPM, 3 Phase / 60 Hz

Output Speed: Approximately 36 RPM

Top Cover: Hold-Down Clamps with Limit Switch

Center Loading Cover: Welded Safety Grate, 30" Wide x 50" Long

Discharge Valve: 4.7" Wide x 14.2" Flush Air-Operated Plug Valve

Discharge Housing: 18.5" Wide x 24" Long

Discharge Height: Approximately 23"

Weight: Approximately 5,060 lbs

Overall Dimensions: 60.6" Wide x 131.4" Long x 90.3" High

Controls: Available Upon Request

Applications

Food powder blending
Nutraceutical ingredient mixing
Pharmaceutical powder processing
Dry chemical blending
Plastic pellet and resin mixing
Fertilizer blending
Animal feed production
Cosmetic powder blending
Industrial dry blending
Construction material mixing

Products This Blender Can Be Used For

Protein powders
Nutraceutical and dietary supplements
Pharmaceutical powders and intermediates
Spices and seasoning blends
Dry chemicals and resins
Fertilizers and soil amendments
Plastic pellets and compounds
Animal feed and pet food
Cosmetic powders
Agricultural seed coatings
