USED S HOWES M-368

Manufacturer: S. Howes

Model: Mixall M-368

Condition: Used / Excellent Condition

Availability: Immediate

Description

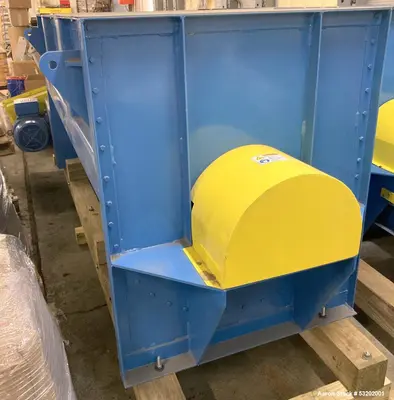

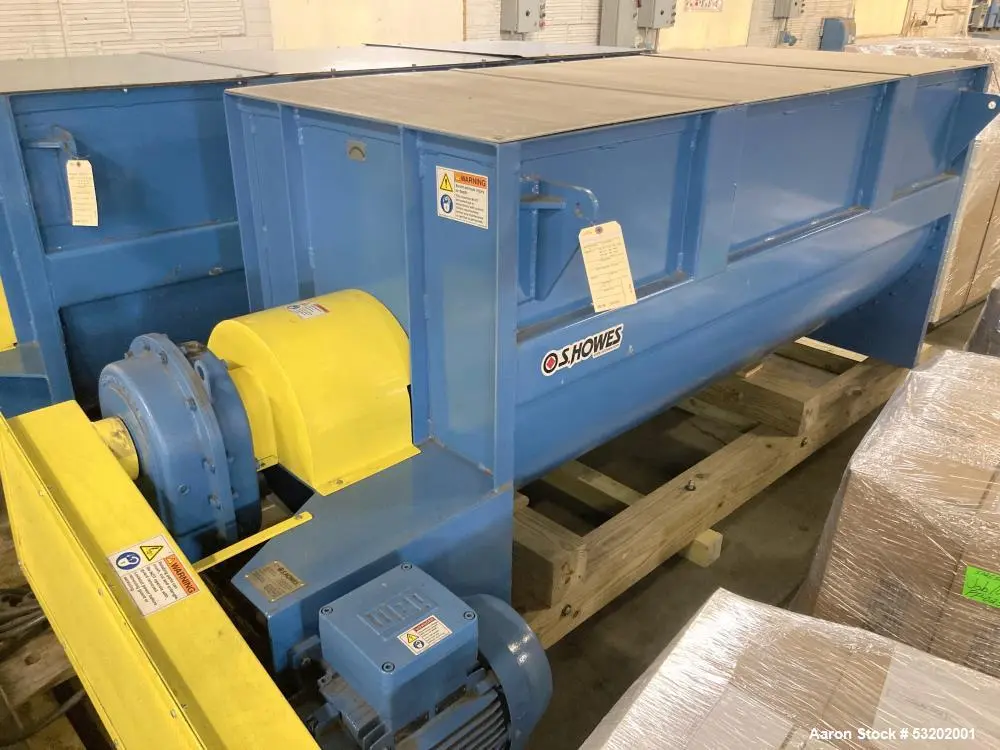

Used S. Howes Horizontal Mixall Double Ribbon Blender, Model M-368, engineered for consistent and efficient mixing of dry powders, granules, and other bulk solids. This heavy-duty industrial blender is ideal for food, chemical, pharmaceutical, and industrial applications.
This unit has a total capacity of 63.6 cubic feet (approx. 2862 lbs capacity), with a recommended batch size of 40 cubic feet or 2000 lbs, based on a product density of 50 lbs/ft³. The blender is constructed from carbon steel, offering durability for demanding industrial environments.

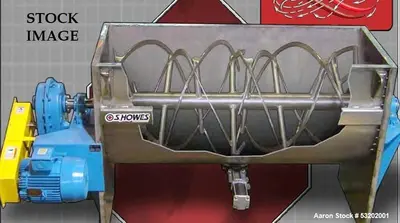

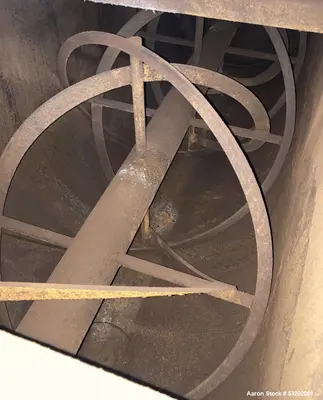

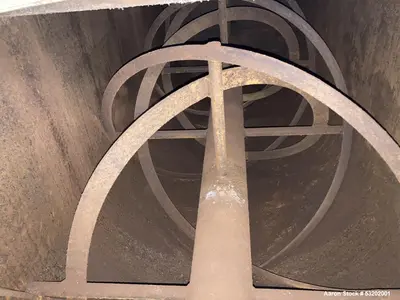

It features a reverse spiral double ribbon design, ensuring fast and uniform mixing with thorough axial and radial blending. The product is discharged via an end-bottom outlet, providing easy material flow and efficient unloading.

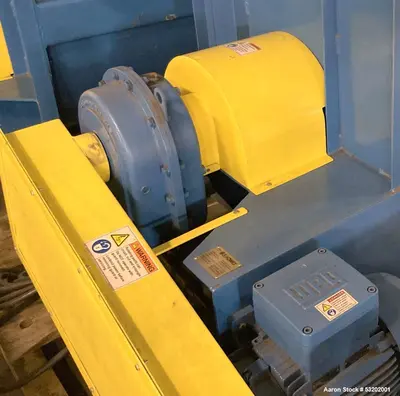

The blender is powered by a 20 HP motor, rated for 3-phase, 60 Hz, 230/460V, operating at 37 RPM. The mixing chamber dimensions are 36" diameter x 8' length. Previously used in testing applications, this unit is in excellent condition and ready for immediate deployment.

Specifications

Manufacturer: S. Howes

Model: Mixall M-368

Condition: Used / Excellent

Construction: Carbon Steel

Total Capacity: 63.6 Cubic Feet

Weight Capacity: 2862 lbs

Recommended Batch Size:

40 Cubic Feet
2000 lbs (for 50 lbs/ft³ product density)

Design: Reverse Spiral Double Ribbon

Outlet: End-Bottom Discharge

Chamber Dimensions:

Diameter: 36"
Length: 8'

Motor:

Power: 20 HP
Voltage: 230/460V
Frequency: 60 Hz
Phase: 3 Phase
RPM: 37

Previous Use: Testing Applications

Location: In Stock

Applications

Dry powder mixing
Granular product blending
Animal feed production
Fertilizer blending
Chemical powder processing
Plastic pellets and resin mixing
Cement and dry mix materials
Nutraceutical and pharmaceutical powder blending
Food ingredient blending
Cosmetic powder production

Products This Blender Can Be Used For

Flour and baking mixes
Protein and nutritional powders
Animal feed formulations
Fertilizer blends
Chemical additives
Plastic pellets and resins
Industrial dry powders
Spices and seasoning mixes
Nutraceutical formulations
Dry cement or construction materials
