USED KARL SCHNELL 740 SCHRAUBENWELLEN

Manufacturer Information

Manufacturer: Karl Schnell

Model/Type: 740 Schraubenwellen

Condition: Used / Excellent Condition

Availability: Immediate

Location: In Stock

Description

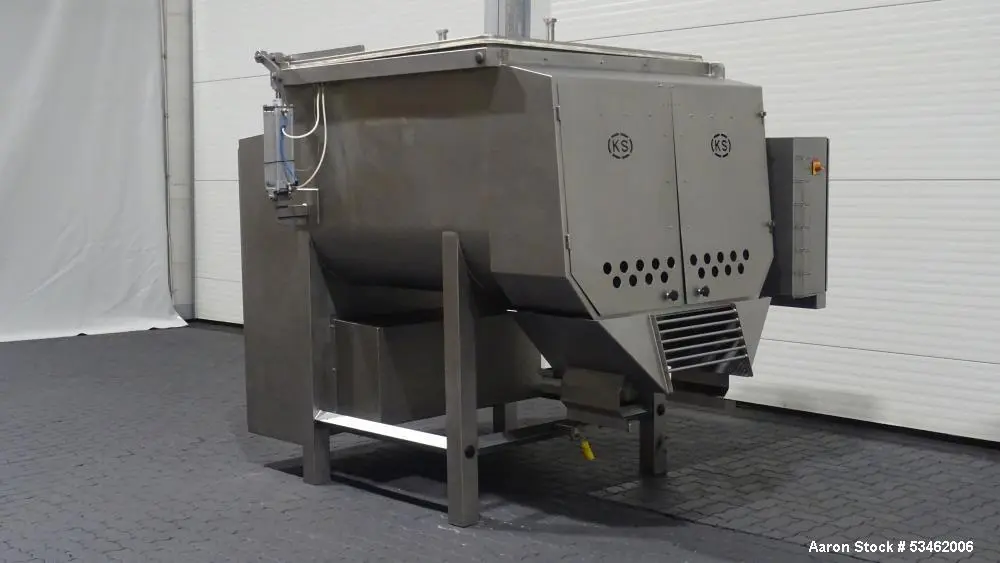

Used Karl Schnell Dual Ribbon Blender, Type 740 Schraubenwellen, constructed entirely from stainless steel for food-grade applications. This high-capacity blender is ideal for mixing viscous or semi-solid products such as cheese, pastes, and other food products.
The blender has a total capacity of approximately 1000 liters (35.3 cubic feet) and a working capacity of 750 liters (26.48 cubic feet), dependent on the product density. Featuring two double ribbons, this dual-shaft design ensures efficient and thorough mixing, blending, and homogenization.
Equipped with two end outlets, product discharge is quick and streamlined. The hydraulically operated top cover provides safe and easy access for loading and maintenance. Powered by two 4.4 / 5.5 kW motors, rated at 400 Volt / 50 Hz, with dual-speed operation (n1: 1420 / n2: 39 RPM and n1: 2860 / n2: 78 RPM), the machine delivers torque values of 1090 Nm / 675 Nm, offering versatility and control over the mixing process.
This unit comes complete with a mounted control panel, allowing for easy operation and monitoring. Previously used in a cheese processing application, this mixer is suitable for a wide range of food processing and industrial mixing applications.

Specifications

Manufacturer: Karl Schnell

Model/Type: 740 Schraubenwellen

Condition: Used / Excellent

Construction: Stainless Steel (Food Grade)

Total Capacity: 1000 Liters (35.3 Cu. Ft.)

Working Capacity: 750 Liters (26.48 Cu. Ft.)

Mixing System:

Dual Ribbon Shafts
Two Double Ribbons

Discharge:

Two End Outlets

Cover:

Hydraulic Operated Top Cover

Motors:

Power: 4.4 / 5.5 kW
Voltage: 400 Volt
Frequency: 50 Hz
Speeds: n1: 1420 RPM / n2: 39 RPM and n1: 2860 RPM / n2: 78 RPM
Torque: 1090 Nm / 675 Nm

Control Panel: Included and Mounted on Mixer

Previous Use: Cheese Processing

Location: In Stock

Applications

Cheese mixing and blending
Dairy product processing
Meat and sausage mixtures
Viscous food product blending
Dough and batter mixing
Paste and puree preparation
Condiment and sauce manufacturing
Pet food mixing
Cosmetic and pharmaceutical paste blending
Industrial adhesives and sealants (if appropriate)

Products This Blender Can Be Used For

Processed cheese
Soft cheeses and spreads
Dairy-based pastes
Meat emulsions and mixes
Sauces, condiments, and dressings
Thick batters and doughs
Nutritional and protein pastes
Cosmetic creams and gels
Pharmaceutical ointments
Industrial pastes and compounds
