USED PAUL O ABBE RB-35

Manufacturer Information

Manufacturer: Paul O. Abbe

Model: RB-35

Condition: NEW & IN STOCK

Country of Origin: USA

Availability: Immediate

Description

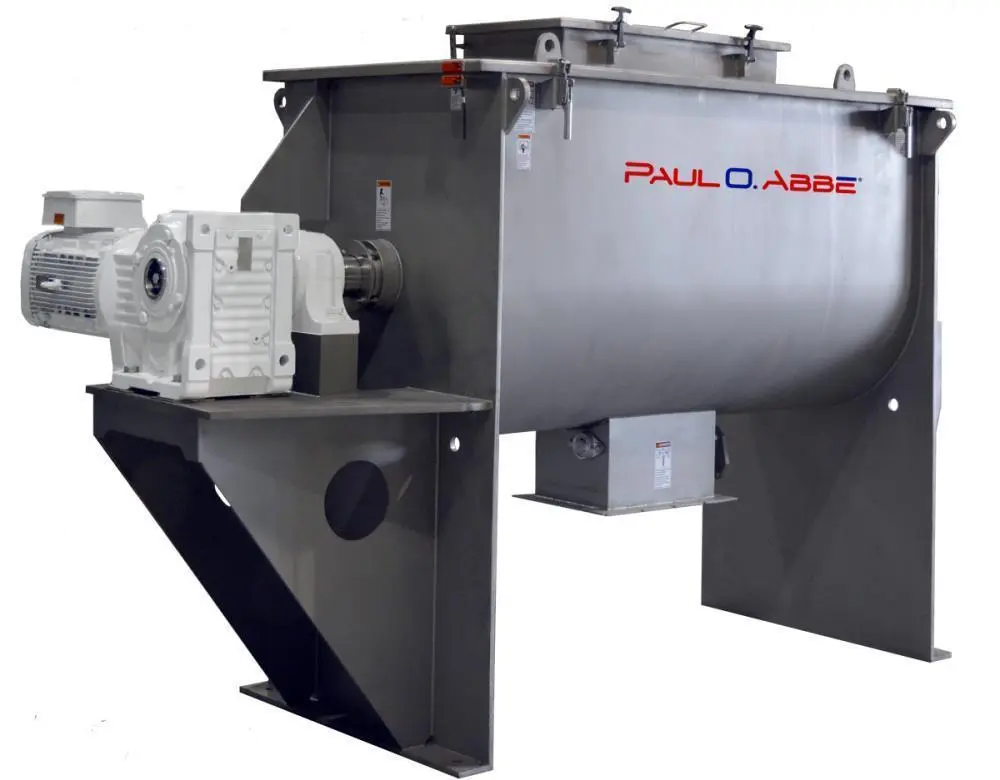

NEW & IN STOCK! The Paul O. Abbe Model RB-35 Ribbon Blender is a compact, high-performance industrial mixer designed for precision blending of powders, granules, and bulk solids. With a 35 cubic foot working capacity and 39 cubic foot total volume, this mid-sized blender is ideal for applications in food, pharmaceutical, chemical, and nutraceutical industries.

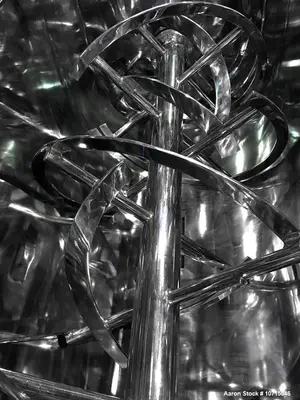

This ribbon blender features Type 304 polished stainless steel construction, ensuring food-grade compliance, sanitary operation, and resistance to corrosion. The internal double spiral ribbon offers efficient, consistent blending, reducing batch times and improving mix quality. The trough dimensions are approximately 33.4" wide x 59.1" long x 37.4" deep.

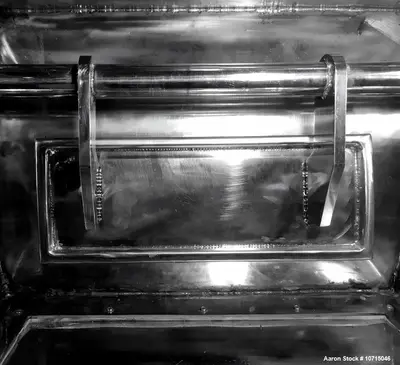

The system is powered by a 25 HP SEW Eurodrive hollow bore motor, operating at 230/460 volt, 1775 RPM, 3-phase / 60 Hz, with an output speed of approximately 42 RPM, delivering robust mixing power. It includes a top cover with hold-down clamps and a limit switch, plus a center loading cover with a welded safety grate (19.7" wide x 31.5" long) to ensure safe and efficient loading.
The discharge features a 4.7" wide x 14.2" flush air-operated plug valve, with a discharge housing approximately 18.5" wide x 24" long, and a 24" discharge height, making it easy to connect to downstream processing or packaging equipment. Weighing approximately 2,860 pounds, the unit has overall dimensions of 52.7" wide x 107.5" long x 84.3" high. Controls are available upon request.

Specifications

Manufacturer: Paul O. Abbe

Model: RB-35

Condition: NEW & IN STOCK

Construction: Type 304 Polished Stainless Steel, Food Grade

Working Capacity: 35 Cubic Feet

Total Volume: 39 Cubic Feet

Trough Dimensions: 33.4" Wide x 59.1" Long x 37.4" Deep

Mixing Element: Internal Double Spiral Ribbon

Bearings: Packing Glands & Pillow Block Bearings

Motor: 25 HP SEW Eurodrive Hollow Bore

Electrical Requirements: 230/460 Volt, 1775 RPM, 3 Phase / 60 Hz

Output Speed: Approximately 42 RPM

Top Cover: Hold-Down Clamps with Limit Switch

Center Loading Cover: Welded Safety Grate, 19.7" Wide x 31.5" Long

Discharge Valve: 4.7" Wide x 14.2" Flush Air-Operated Plug Valve

Discharge Housing: 18.5" Wide x 24" Long

Discharge Height: Approximately 24"

Weight: Approximately 2,860 lbs

Overall Dimensions: 52.7" Wide x 107.5" Long x 84.3" High

Controls: Available Upon Request

Applications

Food processing and powder blending
Nutraceutical ingredient mixing
Pharmaceutical powder production
Dry chemical blending
Fertilizer production
Animal feed production
Cosmetic powder processing
Plastic pellet mixing
Industrial bulk material blending
Pilot plant or small batch production

Products This Blender Can Be Used For

Protein powders
Nutraceutical and dietary supplements
Pharmaceutical powders
Spices and seasoning blends
Chemicals and resins
Fertilizers and soil amendments
Plastic pellets and compounds
Animal and pet feed
Cosmetic powders
Agricultural seed coatings
