USED PAUL O ABBE RB-15

Manufacturer Information

Manufacturer: Paul O. Abbe

Model: RB-15

Condition: NEW & IN STOCK

Country of Origin: USA

Availability: Immediate

Description

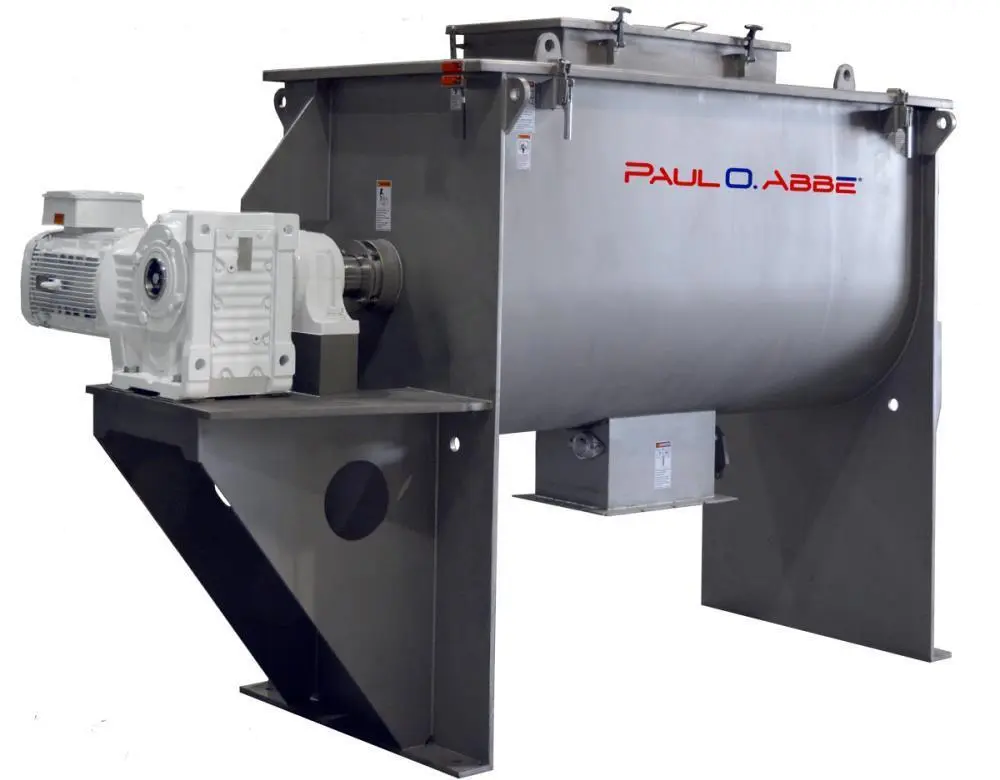

NEW & IN STOCK! The Paul O. Abbe Model RB-15 Ribbon Blender is a compact, precision-engineered industrial mixer, perfect for small-batch blending applications. With a 15 cubic foot working capacity and 18 cubic foot total volume, it’s ideal for pilot plants, laboratories, or small-scale production in food, pharmaceutical, nutraceutical, and chemical industries.

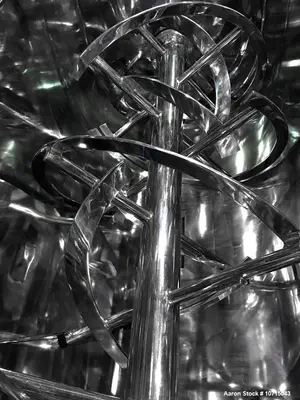

Built from Type 304 polished stainless steel, this food-grade blender ensures sanitary processing, excellent corrosion resistance, and durability. It features an internal double spiral ribbon for fast and uniform mixing, reducing blending time and increasing efficiency.
The trough dimensions measure approximately 24.4" wide x 48.9" long x 28.8" deep. It is powered by a 10 HP SEW Eurodrive hollow bore motor, operating at 230/460 volts, 1775 RPM, 3 phase / 60 Hz, with an output speed of approximately 60 RPM, delivering reliable, consistent performance.

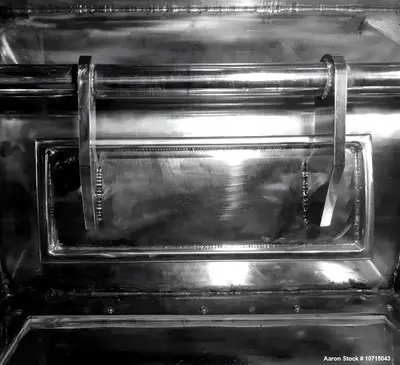

For safety and ease of operation, the blender comes equipped with a top cover with hold-down clamps and a limit switch. The center loading cover, with a welded safety grate measuring 11.8" wide x 19.7" long, allows for secure material loading.
The discharge system includes a 4.7" wide x 14.2" flush air-operated plug valve, paired with a discharge housing approximately 18.5" wide x 24" long, and a discharge height of 35.5", providing flexibility for downstream handling. This ribbon blender weighs approximately 1,870 pounds, with overall dimensions of 41.1" wide x 86.6" long x 86.6" high. Controls are available upon request.

Specifications

Manufacturer: Paul O. Abbe

Model: RB-15

Condition: NEW & IN STOCK

Construction: Type 304 Polished Stainless Steel, Food Grade

Working Capacity: 15 Cubic Feet

Total Volume: 18 Cubic Feet

Trough Dimensions: 24.4" Wide x 48.9" Long x 28.8" Deep

Mixing Element: Internal Double Spiral Ribbon

Bearings: Packing Glands & Pillow Block Bearings

Motor: 10 HP SEW Eurodrive Hollow Bore

Electrical Requirements: 230/460 Volt, 1775 RPM, 3 Phase / 60 Hz

Output Speed: Approximately 60 RPM

Top Cover: Hold-Down Clamps with Limit Switch

Center Loading Cover: Welded Safety Grate, 11.8" Wide x 19.7" Long

Discharge Valve: 4.7" Wide x 14.2" Flush Air-Operated Plug Valve

Discharge Housing: 18.5" Wide x 24" Long

Discharge Height: Approximately 35.5"

Weight: Approximately 1,870 lbs

Overall Dimensions: 41.1" Wide x 86.6" Long x 86.6" High

Controls: Available Upon Request

Applications

Food powder blending
Nutraceutical ingredient mixing
Pharmaceutical powder processing
Small-scale chemical blending
Cosmetic powder blending
Pilot plant production
Laboratory-scale powder mixing
Specialty ingredient processing
Custom batch formulation
Industrial research and development blending

Products This Blender Can Be Used For

Protein powders
Nutraceutical and dietary supplements
Pharmaceutical powders and granules
Spices and seasoning blends
Cosmetic powders and additives
Dry chemicals and reagents
Specialty fertilizers
Animal feed samples
Plastic powders and granules
