USED PAUL O ABBE RB-10

Manufacturer Information

Manufacturer: Paul O. Abbe

Model: RB-10

Condition: NEW & IN STOCK

Country of Origin: USA

Availability: Immediate

Description

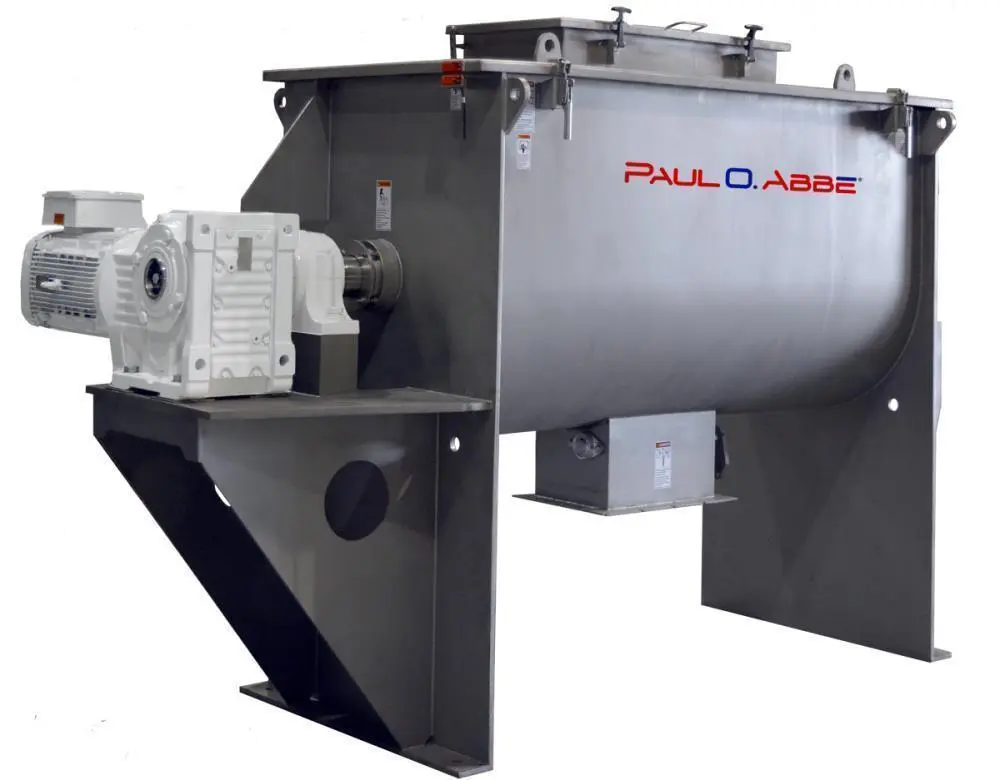

NEW & IN STOCK! The Paul O. Abbe Model RB-10 Ribbon Blender is a compact, high-efficiency industrial mixer designed for precision blending of small batches. With a 10 cubic foot working capacity and 11 cubic foot total volume, this ribbon blender is perfect for laboratory use, pilot plants, or small-scale production in food, pharmaceutical, chemical, and nutraceutical industries.
Constructed from Type 304 polished stainless steel, the RB-10 offers food-grade quality, corrosion resistance, and long-lasting durability. The internal double spiral ribbon ensures quick, uniform mixing with minimal energy consumption. The trough dimensions are approximately 22.1" wide x 38.6" long x 25" deep, optimized for small batch operations.

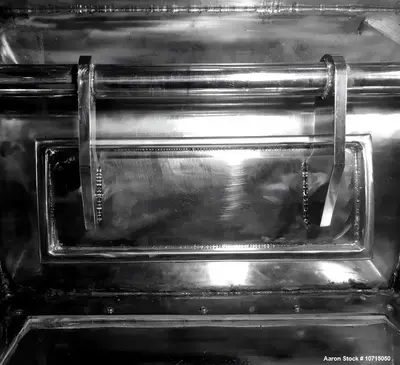

Powered by a 5 HP SEW Eurodrive hollow bore motor, running at 230/460 volts, 1775 RPM, 3 phase / 60 Hz, with an output speed of approximately 66 RPM, this unit provides consistent, reliable performance. It features a top cover with hold-down clamps and a limit switch, ensuring operator safety, and a center loading cover with a welded safety grate (11.8" wide x 19.7" long) for safe material loading.
The discharge includes a 3.2" wide x 9.9" flush air-operated plug valve, with a discharge housing approximately 15.4" wide x 19.3" long, and a 35.5" discharge height, making it compatible with various discharge and packaging systems. Weighing approximately 1,320 pounds, the blender’s overall dimensions are 36.4" wide x 76.4" long x 81.4" high. Controls are available upon request.

Specifications

Manufacturer: Paul O. Abbe

Model: RB-10

Condition: NEW & IN STOCK

Construction: Type 304 Polished Stainless Steel, Food Grade

Working Capacity: 10 Cubic Feet

Total Volume: 11 Cubic Feet

Trough Dimensions: 22.1" Wide x 38.6" Long x 25" Deep

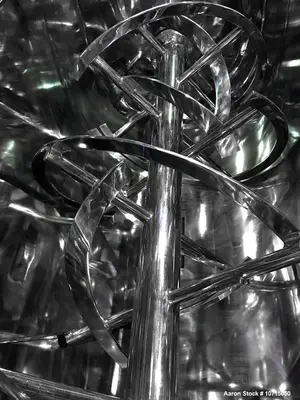

Mixing Element: Internal Double Spiral Ribbon

Bearings: Packing Glands & Pillow Block Bearings

Motor: 5 HP SEW Eurodrive Hollow Bore

Electrical Requirements: 230/460 Volt, 1775 RPM, 3 Phase / 60 Hz

Output Speed: Approximately 66 RPM

Top Cover: Hold-Down Clamps with Limit Switch

Center Loading Cover: Welded Safety Grate, 11.8" Wide x 19.7" Long

Discharge Valve: 3.2" Wide x 9.9" Flush Air-Operated Plug Valve

Discharge Housing: 15.4" Wide x 19.3" Long

Discharge Height: Approximately 35.5"

Weight: Approximately 1,320 lbs

Overall Dimensions: 36.4" Wide x 76.4" Long x 81.4" High

Controls: Available Upon Request

Applications

Food powder blending
Nutraceutical ingredient mixing
Pharmaceutical powder processing
Small-scale chemical blending
Cosmetic powder mixing
Pilot plant or laboratory-scale production
Custom small-batch formulation
Specialty ingredient blending
Dry chemical mixing
Agricultural seed coating processing
