USED LODIGE FKM600D

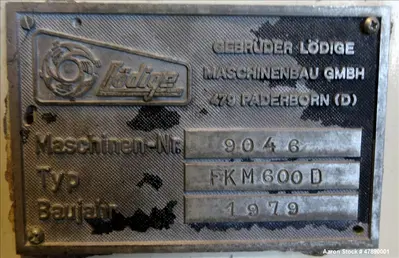

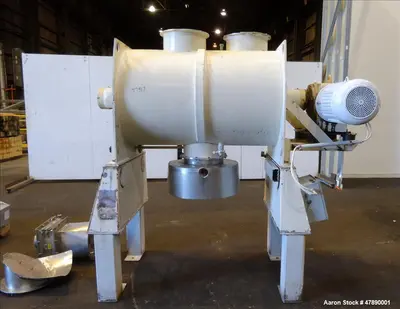

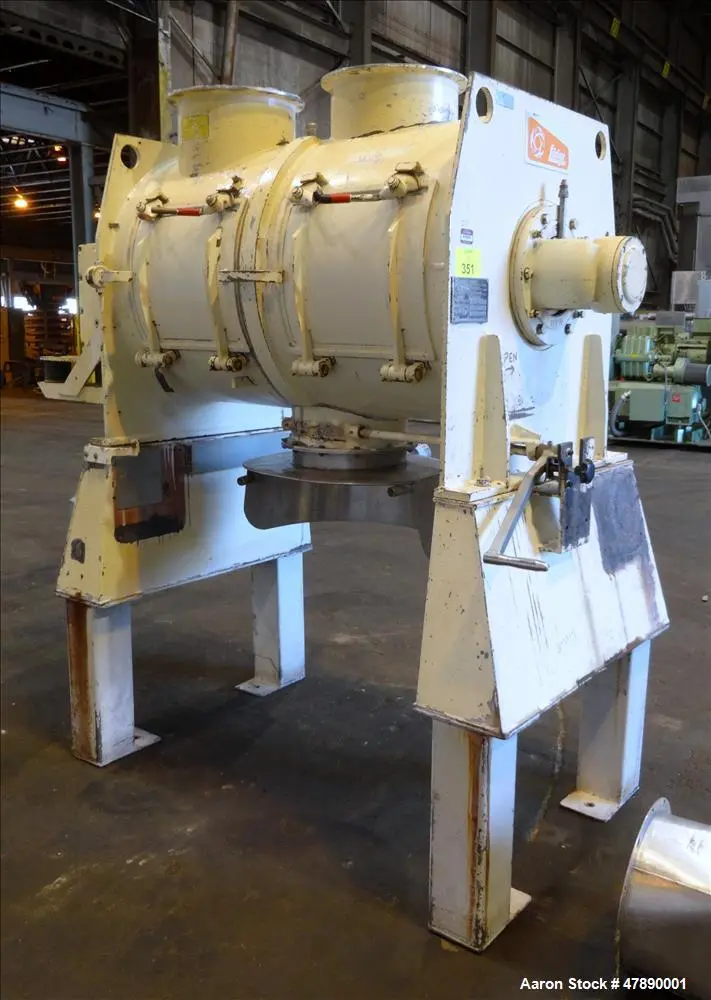

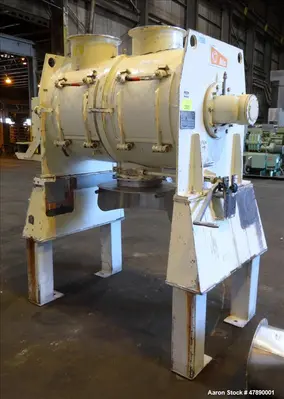

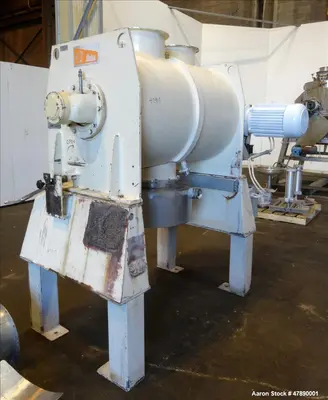

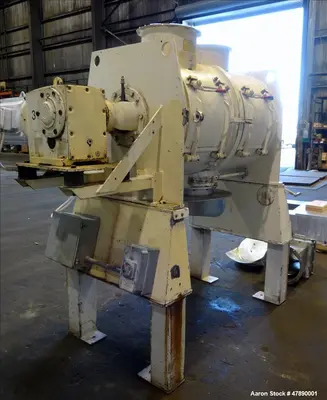

Used Lodige Batch Type Plow Mixer, Model FKM600D. 6 Cubic Feet Working Capacity (10 Total), 304 Stainless Steel. Non-jacketed mixing chamber approximate 32" diameter x 50" long. 4" Diameter shaft with (3) bolt on plows and (2) bolt on end scrappers. (2) Approximate 18" x 15-1/2" side access doors. Top openings (2) 12". 9" x 7" Bottom outlet with a manual operated door, air purge seals. Driven by an approximate 10 hp motor thru Falk reducer. Includes a control panel with an Allen-Bradley PanelView 600 and a SLC 5/04 CPU. Mounted on a carbon steel stand. Serial # 9046.

Used Equipment Facts About This Machine

Manufacturer: Lodige

Model: FKM600D

Category: Batch Type Plow Mixer

Description
The Used Lodige FKM600D Batch Type Plow Mixer is a high-performance industrial mixing system, designed for efficient blending of powders, granules, and other bulk materials. Constructed from 304 stainless steel, this unit ensures corrosion resistance, durability, and hygienic processing for food, pharmaceutical, and chemical industries.

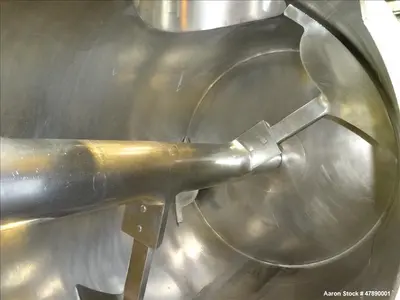

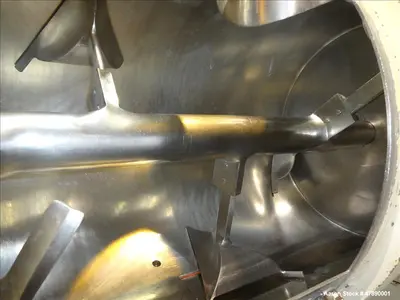

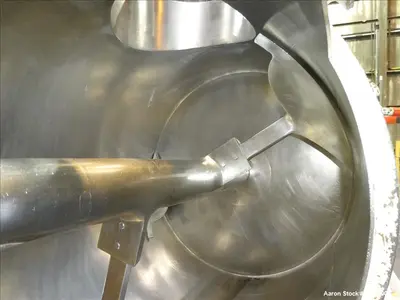

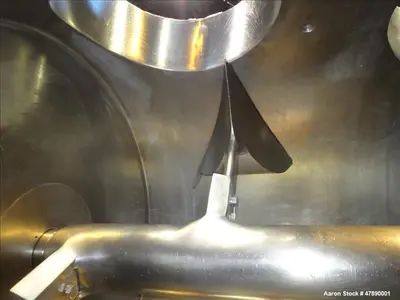

The mixer features a 6 cubic foot working capacity (10 cubic foot total) within a non-jacketed mixing chamber measuring 32" in diameter x 50" in length. The 4" diameter shaft is equipped with (3) bolt-on plows and (2) bolt-on end scrapers, ensuring uniform mixing and minimal material buildup.
Access points include (2) side doors measuring 18" x 15.5", along with (2) 12" top openings for ingredient loading. The 9" x 7" bottom outlet is fitted with a manual-operated door and air purge seals for controlled discharge. The unit is powered by a 10 HP motor through a Falk reducer and comes with a control panel featuring an Allen-Bradley PanelView HMI for precise operation control.
Specifications

Type: Batch Type Plow Mixer

Model: FKM600D

Capacity: 6 Cu. Ft. working (10 Cu. Ft. total)

Construction: 304 Stainless Steel

Mixing Chamber Dimensions: 32" diameter x 50" length

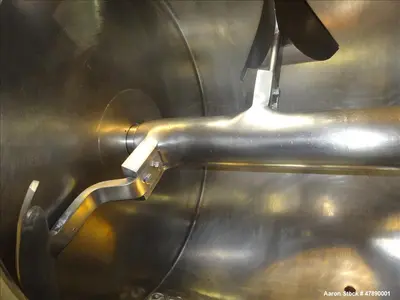

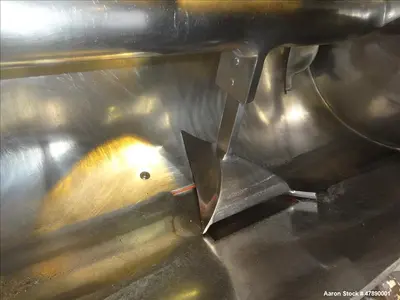

Shaft: 4" diameter with (3) bolt-on plows & (2) bolt-on end scrapers

Access Openings:

(2) Side access doors: 18" x 15.5"
(2) Top openings: 12"

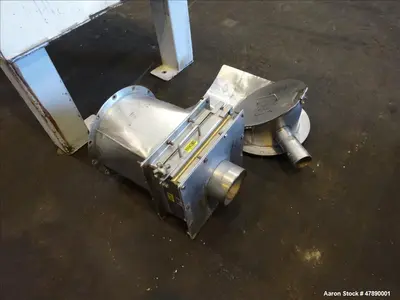

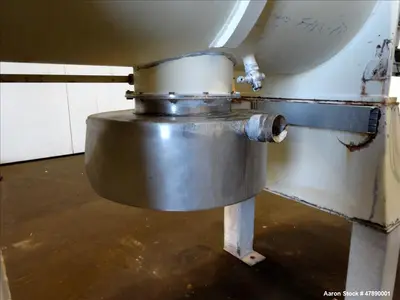

Outlet: 9" x 7" bottom discharge with manual-operated door & air purge seals

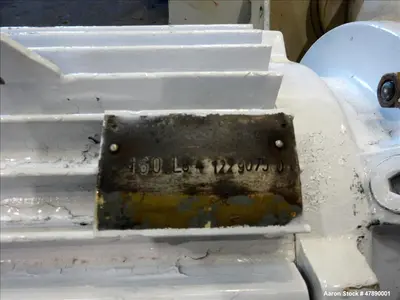

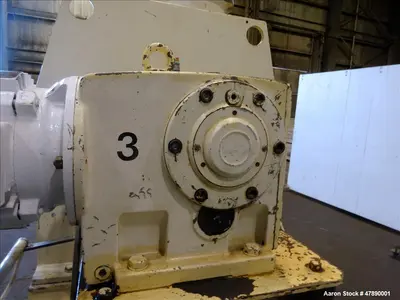

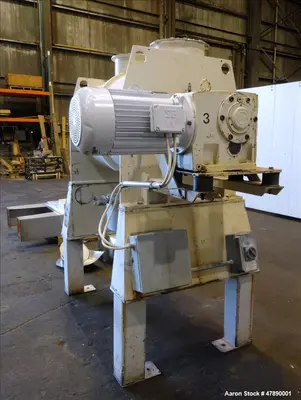

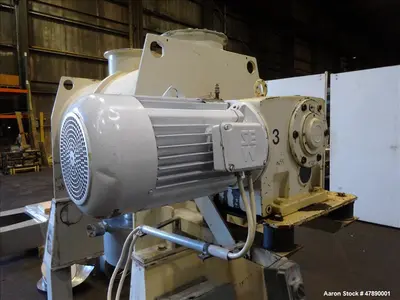

Drive System: 10 HP motor through Falk reducer

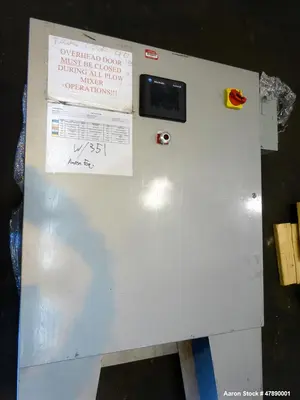

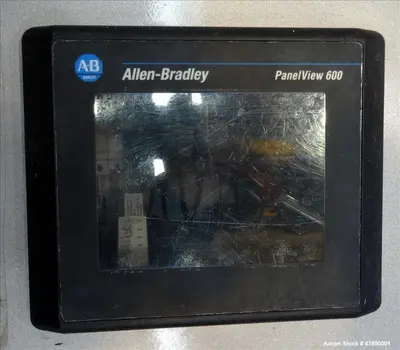

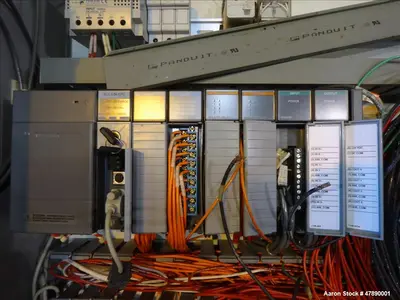

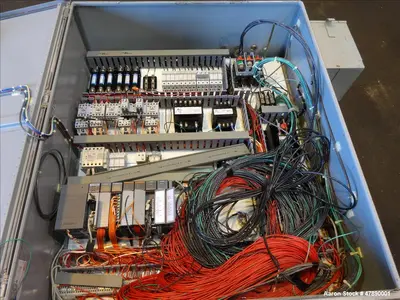

Control System: Allen-Bradley PanelView HMI control panel

Applications

Food & Beverage Processing (spices, dry mixes, baking ingredients)

Pharmaceutical & Nutraceuticals (powders, supplements, API blending)

Chemical Processing (powdered chemicals, industrial additives)

Cosmetics & Personal Care (powdered formulations, dry mixtures)

Industrial Dry Material Processing (powders, granules, and bulk solids)

Compatible Products & Systems

Bulk material handling and storage systems
Pneumatic and vacuum conveying systems
Downstream packaging and filling equipment
Powder drying and granulation systems
PRODUCT DETAILS

Plow mixer
Lodige mixer
Batch type blender
Industrial powder mixer
Used Lodige FKM600D stainless steel plow mixer
6 cu. ft. batch plow mixer with Allen-Bradley controls
Stainless steel industrial plow mixer for dry powders
Lodige batch mixer with 10 HP motor and air purge seals
Used Lodige FKM600D 6 cu. ft. batch plow mixer with stainless steel construction and Allen-Bradley controls
Industrial stainless steel plow mixer with 10 HP motor, Falk reducer, and bolt-on plows for efficient blending
High-performance batch-type plow mixer for pharmaceutical, food, and chemical processing applications
