USED J H DAY 4

Manufacturer:
J.H. Day
Description:

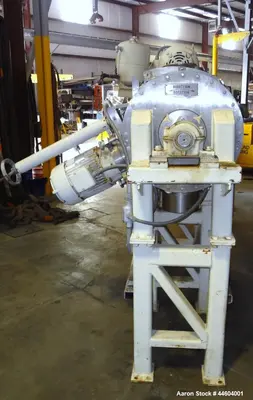

The Used J.H. Day Plow Type Turbulent Mixer is a high-efficiency mixing system designed for industrial applications requiring intense turbulence and uniform blending. Constructed from 304 stainless steel, this mixer has a 3.5 cubic feet total capacity and features a non-jacketed chamber (20” diameter x 22” straight side). Equipped with a 3” diameter shaft with blades and end scrapers, it ensures thorough material agitation.
This unit includes a side-entering pinned disc mill, providing additional processing capability. The mixer is powered by a 7.5 HP Sterling variable Speed-trol motor (1800 RPM), while the disc mill operates with a 10 HP motor (3490 RPM). Additional features include a top access door with a charge port, an 8” center bottom outlet with a manually operated plug valve, and an integrated control panel. The entire system is mounted on a carbon steel frame for stability and durability.
Specifications:

Brand: J.H. Day

Type: Plow Type Turbulent Mixer

Construction Material: 304 Stainless Steel

Total Capacity: 3.5 Cubic Feet

Chamber Dimensions: 20” Diameter x 22” Straight Side (Non-Jacketed)

Shaft Diameter: 3” with Blades & End Scrapers

Mixer Motor: 7.5 HP, 3/60/230/460V, 1800 RPM, Sterling Variable Speed-trol

Pinned Disc Mill Motor: 10 HP, 3/60/230/460V, 3490 RPM

Outlet: 8” Center Bottom with Manual Plug Valve

Frame: Carbon Steel

Additional Features: Top Access Door with Charge Port, Integrated Control Panel

Applications:

Chemical and pharmaceutical mixing
Powder and bulk solid blending
Food processing and ingredient blending
Dry and wet material mixing
Agricultural and feed production
Plastics and resin processing

Compatible Products & Industries:

Chemical processing plants
Pharmaceutical manufacturing
Food and beverage production
Powder coating and pigment blending
Industrial material processing
