USED MORTON FKM600D

🏭 Manufacturer Information

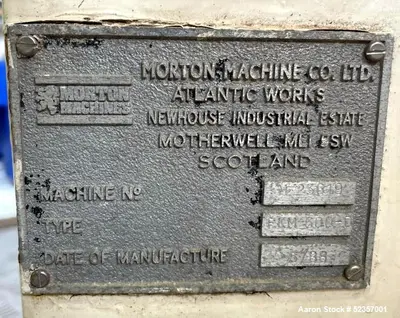

Manufacturer: Morton Machine Company

Model: FKM600D

Type: Plow Mixer / Horizontal Mixer

Condition: Used (Excellent Mechanical Condition)

Construction: 321 Stainless Steel (All Product Contact Surfaces)

Country of Manufacture: United Kingdom

Mounting: Frame Mounted

Drive System: Gearbox Driven (14:1 Ratio)

⚙️ Product Description

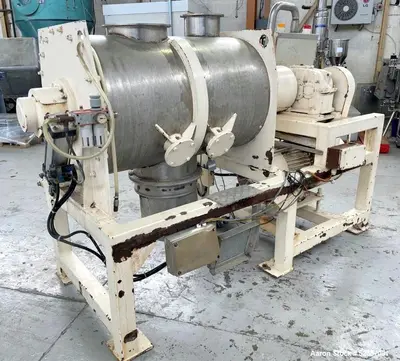

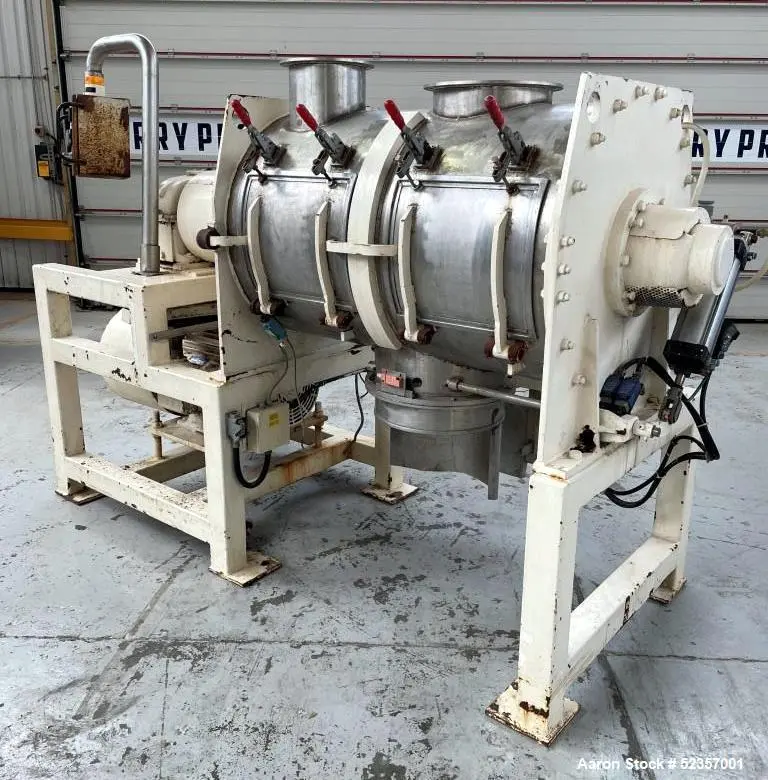

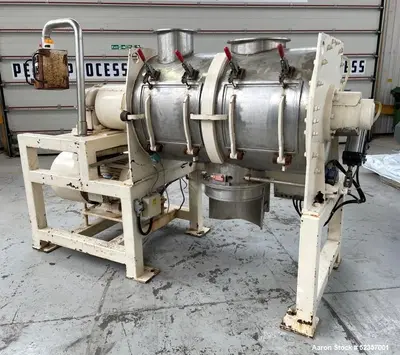

The Morton Machine FKM600D Plow Mixer is a robust, high-intensity horizontal mixer designed for blending powders, granules, and paste-type materials in chemical, food, plastic, and pharmaceutical industries.
Constructed of 321 stainless steel, this plow mixer offers superior corrosion resistance, especially against high-temperature or mildly acidic environments.
It features a total capacity of 600 liters (21.18 cubic feet) and a working capacity of 400 liters (14.13 cubic feet) — ideal for precision batch mixing operations.

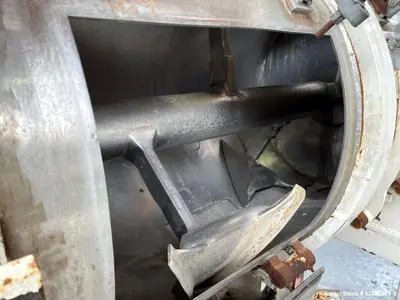

The mixing chamber, measuring approximately 790 mm (31.1”) diameter x 1240 mm (48.8”) long, contains plow-shaped mixing elements designed for intensive product agitation and uniform dispersion.

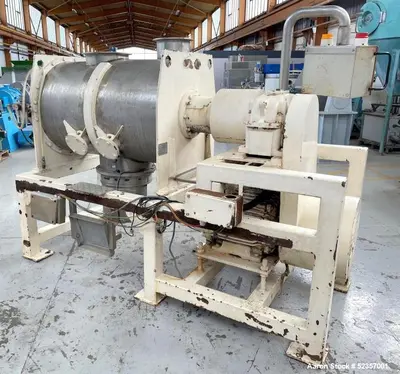

Driven by a 37 kW (50 HP) motor through a 14:1 gearbox, the system provides efficient mixing performance for a variety of materials.
Equipped with two large side access doors, multiple top openings, and a 450 mm (17.7”) center bottom discharge with a pneumatically operated sandwich-type door, the mixer ensures fast loading, easy maintenance, and efficient product discharge.
It also includes provisions for side-mounted choppers, allowing optional installation of high-speed dispersers for breaking agglomerates or achieving finer blending.

📏 Specifications

Model: FKM600D

Type: Plow Mixer / Horizontal Mixer

Total Capacity: 21.18 Cu Ft (600 Liters)

Working Capacity: 14.13 Cu Ft (400 Liters)

Construction Material: 321 Stainless Steel

Mixing Chamber Dimensions:

Diameter: 790 mm (31.1”)

Length: 1240 mm (48.8”)

Motor Power: 37 kW (50 HP)

Gearbox Ratio: 14:1

Access Doors:

(2) × 400 mm (15.75”) × 450 mm (17.7”) side doors

Top Openings:

(1) × 350 mm (13.78”)

(1) × 250 mm (9.84”)

Discharge:

450 mm (17.7”) center bottom outlet

300 mm (11.8”) × 240 mm (9.45”) sandwich-type pneumatically operated discharge door

Chopper Provision: Yes (side-mounted option)

Mounting: Frame Mounted

Condition: Used – Excellent

🧩 Applications

Chemical powder blending

Pharmaceutical granulation and mixing

Food ingredient blending

Plastics and resin compounding

Pigment and coating formulation

Fertilizer mixing

Metal powder or additive mixing

Dry and wet batch blending

Cosmetic powder and paste blending

Homogenizing high-density materials

⚗️ What Might This Be Used For

The Morton FKM600D Plow Mixer is designed for high-intensity mixing where rapid and homogeneous blending is required.
Its plow agitators lift and fluidize the product, ensuring fast and consistent results for powders, granules, and even paste-like substances.
It’s suitable for formulation, coating, granulation, or reaction blending processes in chemical, cosmetic, food, and pharmaceutical facilities.

🧱 Products That Could Use This Mixer

Dry powders and granules

Plastic resins and pellets

Pharmaceutical blends and granules

Flavor and spice mixes

Chemical additives

Pigments, inks, and colorants

Metal powders

Cosmetic creams and pastes

Fertilizers and soil amendments

Food powders and dry ingredients
