USED LITTLEFORD FKM-4000-D

Manufacturer Information:

Manufacturer: Littleford

Model: FKM-4000-D

Serial Number: 40671-3267

Type: Stainless Steel Jacketed Plough (Plow) Mixer

Condition: Reconditioned

Description:

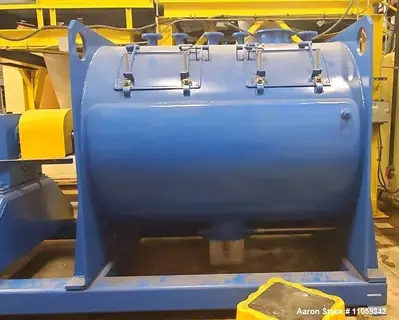

The Littleford Model FKM-4000-D Plough Mixer is a high-performance industrial mixer designed for efficient and homogeneous blending of powders, granules, pastes, and slurries. With a 4000-liter capacity, this stainless steel mixer is ideal for chemical, pharmaceutical, food, and industrial applications requiring precise and uniform mixing.

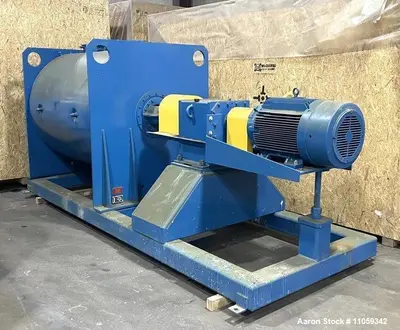

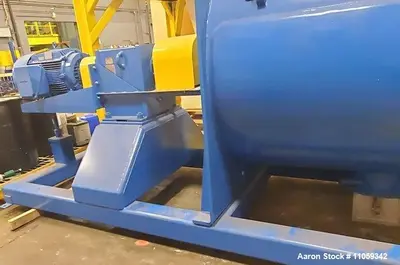

This unit features a jacket rated for 75 PSI at 320°F, allowing for temperature-controlled processing. All product contact surfaces are 316 stainless steel, polished to 120 grit for sanitary and corrosion-resistant performance. The mixer is driven by a powerful 125 HP, 460-volt motor into a gear reducer, ensuring consistent operation for high-viscosity materials.
The unit has an overall approximate footprint of 16' L x 6' W x 8' H, making it suitable for large-scale batch processing.
Key Data:

Capacity: 4000 liters

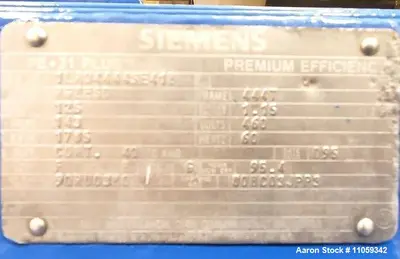

Motor Power: 125 HP

Electrical Specs: 460V

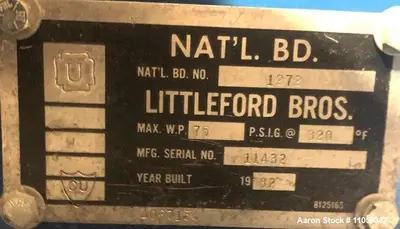

Jacket Pressure Rating: 75 PSI @ 320°F

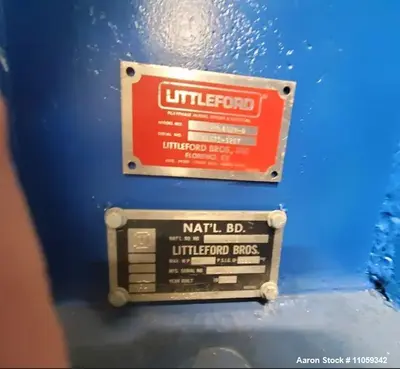

National Board #: 1272

Material: 316 stainless steel (product contact areas)

Surface Finish: Polished to 120 grit

Overall Dimensions: Approx. 16' L x 6' W x 8' H

Condition: Reconditioned

Specifications:

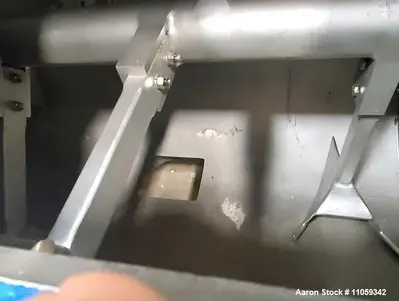

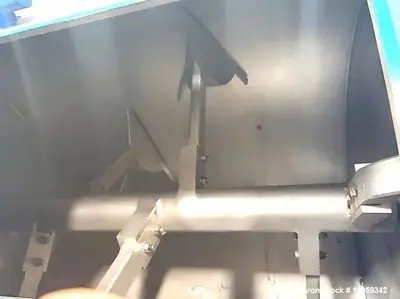

Plough-style mixing technology for optimal blending efficiency

4000L mixing capacity for large-scale batch processing

Jacketed vessel rated for 75 PSI @ 320°F for thermal control

125 HP motor with gear reducer for handling high-viscosity materials

316 stainless steel contact surfaces polished to 120 grit for sanitary applications

Reconditioned for optimal performance and longevity

Large-scale industrial footprint (16’ L x 6’ W x 8’ H) for high-volume production

Applications:

Food Processing – Dry ingredient blending, spice mixing, baking mixes, flavorings

Pharmaceuticals & Nutraceuticals – Blending of active ingredients, excipients, powders

Chemical Industry – Polymer and resin blending, powder coatings, detergents

Industrial Manufacturing – Mixing of adhesives, pastes, and viscous compounds

Agriculture & Animal Feed – Feed production, seed treatment, fertilizer mixing
