USED DRAISWERKE TK 400

Manufacturer Information:

Brand: Drais Mannheim

Type: Plow Mixer/Dryer

Model: TK 400-Turbu Kneter

Material: 321 Stainless Steel (Product Contact Parts)

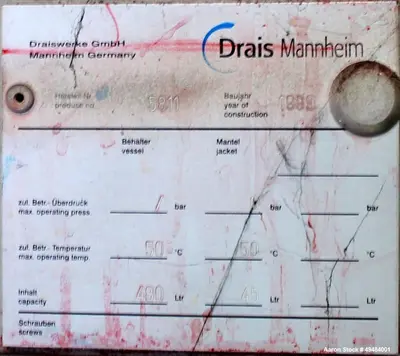

Serial #: 55918

Description:

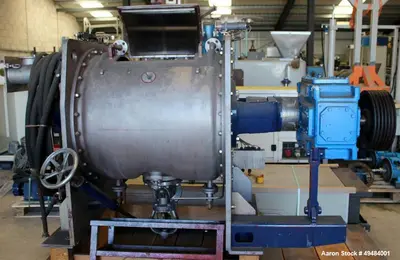

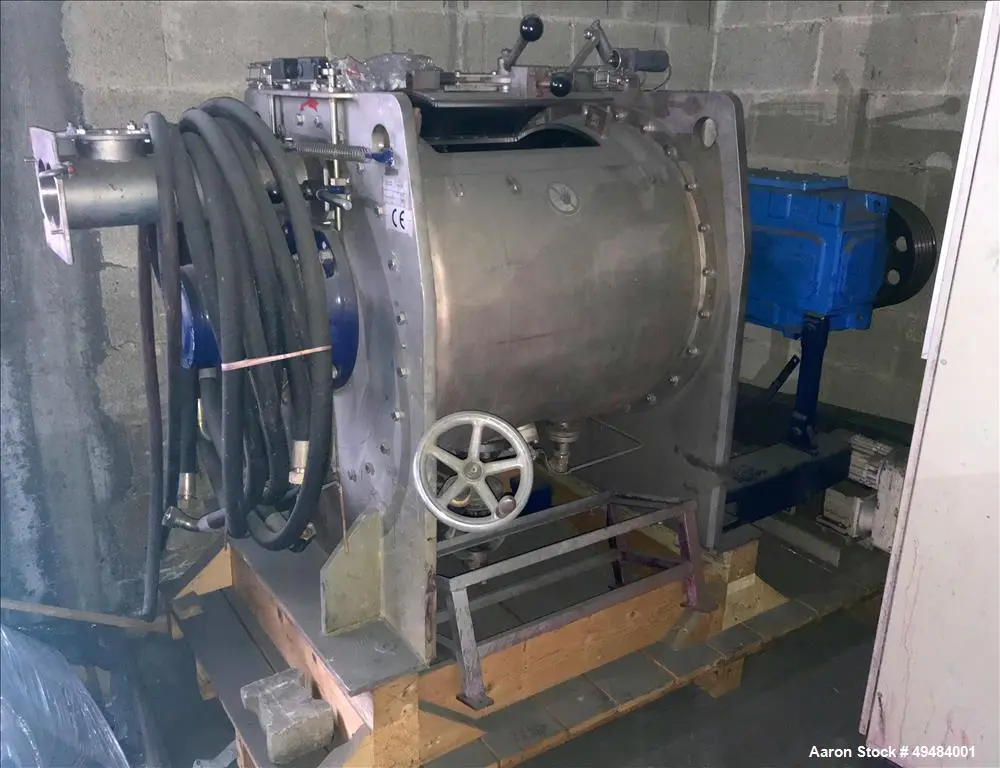

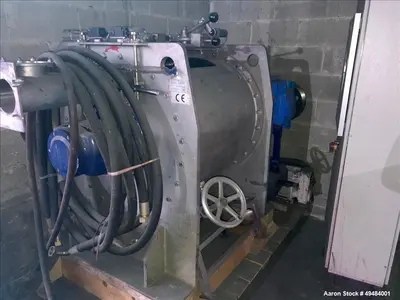

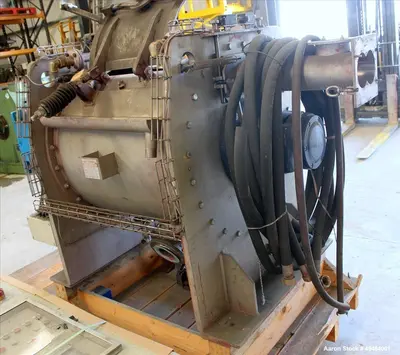

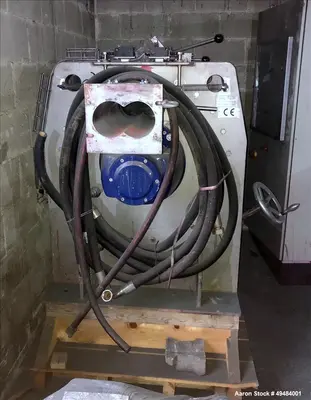

This used Drais Mannheim Plow Mixer/Dryer (Type TK 400-Turbu Kneter) is a high-performance mixing and drying system, built for intensive blending, homogenization, and thermal processing of powders, pastes, and other materials in chemical, pharmaceutical, food, and industrial applications.
Constructed from 321 stainless steel on product contact parts, this stainless steel mixing body has a total capacity of 400 liters (14.12 cubic feet), with a maximum working capacity of 300 liters (10.6 cubic feet) and a minimum working capacity of 120 liters (4.23 cubic feet).
The double-jacketed mixing chamber, rated at 90 psi (6 bar), provides efficient heating or cooling through a 17-square-foot (1.7 m²) heat transfer surface, making it ideal for temperature-sensitive processing. The interior is rated for 0 psi at 122°F (50°C).

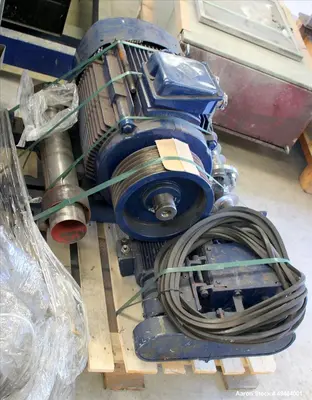

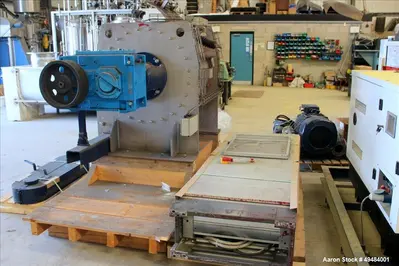

This unit is powered by a high-performance 82.5 HP (55 kW), 400V AC, 50 Hz, 3-phase motor, driving the FM I Becker plows through a Stimrad-Aufsteckgetribe gearbox (Type H 2HH 5A), operating at 175 RPM for consistent mixing performance.

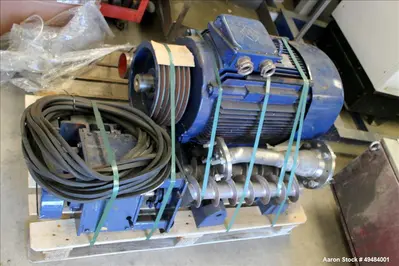

Additionally, a twin screw feeder (0.55 kW / 0.83 HP, 400V AC, 50 Hz, 3-phase motor) ensures controlled material feeding. The 3.9” (100mm) bottom outlet valve allows for efficient discharge, while an inspection door with counterweights provides easy access for cleaning and maintenance.
The unit measures 12’ long x 34” wide x 54” high (3700 mm x 1050 mm x 1650 mm) and weighs 5192 pounds (2360 kg) empty.
Key Features:

400L (14.12 Cu. Ft.) Total Capacity, 300L (10.6 Cu. Ft.) Maximum Working Capacity
321 Stainless Steel Construction for Durability & Corrosion Resistance
Double-Jacketed for Heating & Cooling (90 PSI / 6 Bar Rated)
17 Sq. Ft. (1.7 m²) Heat Transfer Surface for Efficient Thermal Processing
FM I Becker Plows Driven by an 82.5 HP (55 kW), 400V AC, 50 Hz, 3-Phase Motor
Stimrad-Aufsteckgetribe Gearbox (Type H 2HH 5A) for Reliable Mixing
Mixing Speed: 175 RPM for Homogeneous Blending
Twin Screw Feeder (0.55 kW / 0.83 HP) for Controlled Material Input
3.9” (100mm) Bottom Outlet Valve for Efficient Discharge
Inspection Door with Counterweights for Easy Access & Cleaning
Compact Footprint: 12’ L x 34” W x 54” H (3700mm x 1050mm x 1650mm)
Total Empty Weight: 5192 lbs (2360 kg)
Serial #: 55918

Specifications:

Model: TK 400-Turbu Kneter

Material: 321 Stainless Steel (Product Contact Parts)

Total Capacity: 400 Liters (14.12 Cubic Feet)

Maximum Working Capacity: 300 Liters (10.6 Cubic Feet)

Minimum Working Capacity: 120 Liters (4.23 Cubic Feet)

Jacket Pressure Rating: 90 PSI (6 Bar) for Heating/Cooling

Heat Transfer Surface Area: 17 Sq. Ft. (1.7 m²)

Interior Rating: 0 PSI at 122°F (50°C)

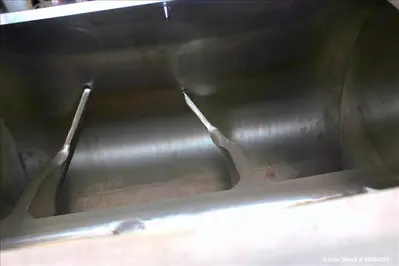

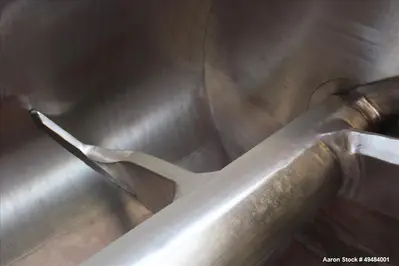

Mixing Mechanism: FM I Becker Plows

Mixing Speed: 175 RPM

Main Drive: 82.5 HP (55 kW), 400V AC, 50 Hz, 3-Phase Motor

Gearbox: Stimrad-Aufsteckgetribe, Type H 2HH 5A

Feeding System: Twin Screw Feeder (0.55 kW / 0.83 HP, 400V AC, 50 Hz, 3-Phase)

Discharge Valve: 3.9” (100mm) Bottom Outlet Valve

Inspection: Counterweighted Inspection Door

Overall Dimensions: 12’ L x 34” W x 54” H (3700 mm x 1050 mm x 1650 mm)

Total Weight: 5192 lbs (2360 kg) (Empty)

Serial #: 55918

Applications:

Chemical Processing – High-intensity mixing and drying of powders and compounds

Pharmaceutical Blending – Homogenization of active ingredients and excipients

Food Industry – Processing of dry and semi-dry food products, seasonings, and nutritional blends

Plastics & Polymers – Mixing and drying of polymer resins and specialty plastics

Powder Metallurgy – Mixing of metal powders and additives

Cosmetics & Personal Care – Blending of powders, creams, and emulsions

What Products Would This Be Used For?

Dry chemical and pharmaceutical powders
Food ingredients and seasoning blends
Polymer resin and plastic additives
Metal powder and alloy mixing
Nutraceutical and supplement formulations
