USED LITTLEFORD VT-4000

Manufacturer Information:

Brand: Littleford

Model: VT-4000

Condition: Used

Type: Vacuum Plow Mixer/Dryer

National Board #: 1260

Serial #: 11363

Description:

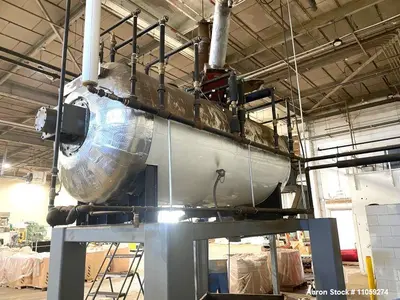

The Littleford VT-4000 Vacuum Plow Mixer/Dryer is a high-performance mixing and drying solution designed for high-efficiency blending, drying, and reaction processing of powders, granules, and pastes. Constructed from 304 stainless steel, this unit is built for durability, corrosion resistance, and sanitary processing.
This mixer features a 4000-liter (approx. 1057-gallon) capacity, with a 54" diameter and 121" straight side. The internal chamber is rated for 15 PSI/vacuum at 250°F, while the stainless steel jacket is rated for 75 PSI at 250°F, allowing for precise thermal processing.

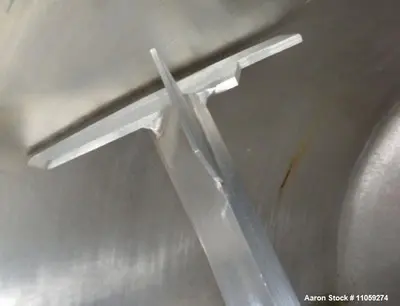

Equipped with a 6" diameter shaft, 8 bolt-on plow blades, and 2 end scrapers, the mixer provides intense material movement and uniform blending. The design also includes a provision for 4 choppers, allowing for additional particle size reduction and high-speed shear mixing. The air-purged main seals ensure long-term performance with minimal contamination risk.
Powered by a 50 HP motor through a gearbox, the mixer operates with high torque efficiency. It includes various top openings for ingredient feeding, monitoring, and process integration. The 6" diameter off-center bottom outlet ensures efficient discharge of materials.
This unit is mounted on a carbon steel frame for structural stability and support. A Variable Frequency Drive (VFD) control panel is included, allowing for adjustable speed control and process optimization.
Specifications:

Capacity: 4000 liters (~1057 gallons)

Material: 304 Stainless Steel

Mixing Chamber Dimensions:

Diameter: 54"

Straight Side: 121"
Dished Ends

Pressure Ratings:

Internal: 15 PSI/Vacuum @ 250°F

Jacket: 75 PSI @ 250°F

Mixing Components:

6" Diameter Shaft
8 Bolt-On Plow Blades
2 End Scrapers
Provision for 4 Choppers

Seals: Air-Purged Main Seals

Discharge: 6" Diameter Off-Center Bottom Outlet

Drive System:

Motor: 50 HP

Gearbox: Yes (Torque-controlled operation)

Control System: Included VFD Control Panel

Mounting: Carbon Steel Frame

National Board #: 1260

Serial #: 11363

Condition: Used

Applications:
The Littleford VT-4000 Vacuum Plow Mixer/Dryer is ideal for high-precision mixing, drying, and reaction processing in industries such as:

Pharmaceuticals (powder blending, granulation, active ingredient drying, excipient processing)
Food Processing (spices, dairy powders, protein powders, instant drink mixes, flavoring blends)
Chemical Processing (catalysts, pigments, fertilizers, fine chemicals, polymers, coatings)
Cosmetics & Personal Care (powdered ingredients, emulsions, skincare formulations, dry blends)
Nutraceuticals & Supplements (vitamin powders, herbal extracts, protein supplements, dietary blends)
Plastics & Polymers (resin mixing, colorant blending, polymer drying, compounding additives)
Battery & Electronics Materials (metal oxides, cathode/anode material blending, fine powder drying)
Mining & Minerals (powdered minerals, talc processing, high-shear material blending)
Biotechnology & Lab Applications (fermentation media preparation, bio-based material blending)
Agriculture & Animal Feed (feedstock processing, fertilizer mixing, agricultural chemical blending)
