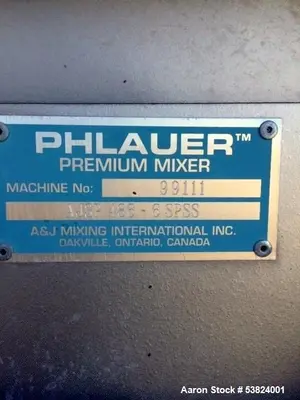

USED PHLAUER AJSP 486-6 SPSS

Description

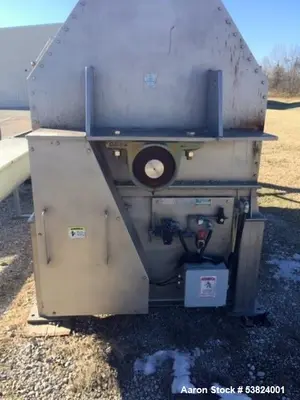

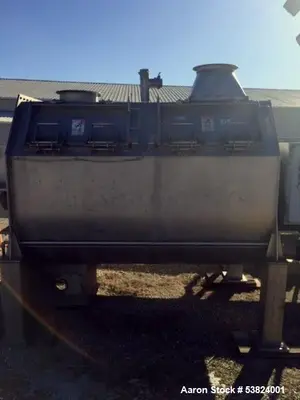

The Used Phlauer / A&J Mixing Modular Paddle Mixer, Model AJSP 486-6 SPSS, is a high-capacity industrial mixer designed for efficient blending of powders, granules, and bulk materials. With a 74 cubic foot capacity, this mixer features a 304 stainless steel non-jacketed trough, measuring 48” wide x 78” long x 44” deep.

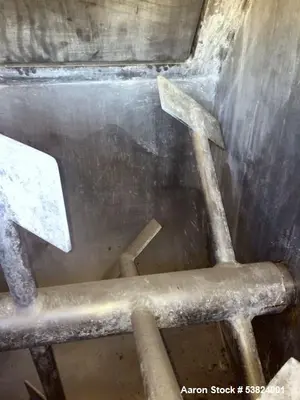

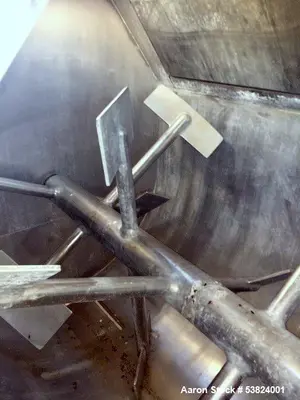

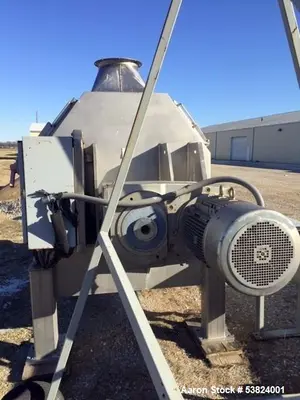

Equipped with a robust 5" diameter shaft and (16) welded 13-3/4" x 6-3/4" paddles on 2" diameter posts, this mixer ensures thorough, uniform mixing. The system is driven by a powerful 22kW (30 HP) gear motor, running at 1770 RPM with a 75.69:1 ratio, final RPM of 23.
Designed for easy operation and maintenance, the unit includes:

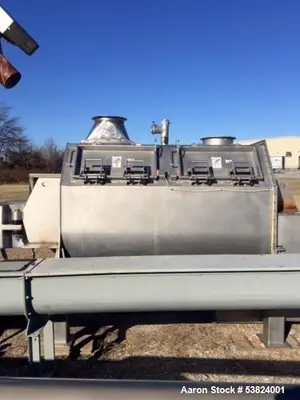

Multiple top and side access openings (4 hinged inspection doors)

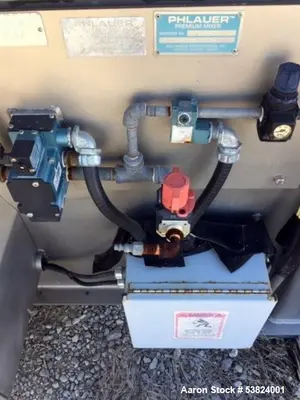

14” x 8” bottom discharge with a pneumatic discharge valve

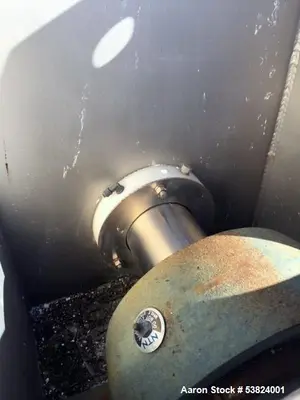

Outboard roller bearings & air seals for durability

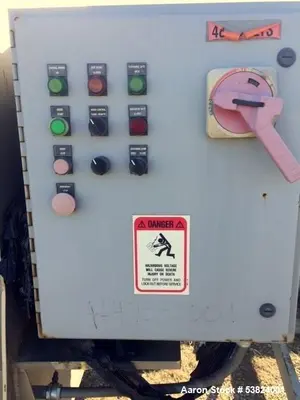

Control panel for efficient operation
Stainless steel legs for sturdy support

This mixer is ideal for high-volume batch mixing in industries like food processing, chemical production, and pharmaceuticals.
Specifications

Capacity: Approx. 74 cubic feet

Construction: 304 Stainless Steel

Trough Dimensions: 48" W x 78" L x 44" D

Shaft: 5" Diameter

Paddles: (16) 13-3/4" x 6-3/4" x 3/8" thick paddles welded on 2" diameter posts

Motor: 22kW (30 HP), 3/60/230/460V, 1770 RPM

Gear Ratio: 75.69:1, final RPM 23

Access Openings:

Top: 12", 2-3/4"

Side: (4) 30" x 15-1/2" hinged inspection doors

Discharge: 14” x 8” end bottom discharge with pneumatic valve

Additional Features:

Outboard roller bearings
Air seals
Control panel
Mounted on (4) stainless steel legs

Applications
This paddle mixer is well-suited for high-capacity batch mixing in industries such as:

Food processing (flour blends, baking ingredients, seasonings)

Chemical mixing (powders, industrial chemicals, detergents)

Pharmaceutical blending (bulk powders, granules, excipients)
Nutritional supplement production
Plastics and composite materials

What Products Would This Be Used For?

Powdered food ingredients and spice blends
Industrial powders and dry chemicals
Pharmaceutical bulk powders
Dry mortar and cement additives
Plastic resin and pellet blending
