USED AMERICAN PROCESS SYSTEMS FZM-35

Manufacturer Information:

Manufacturer: American Process Systems

Model: FZM-35

Condition: Used

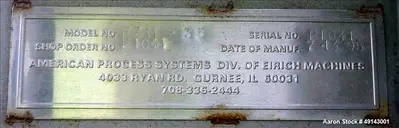

Serial Number: F1041

Description:

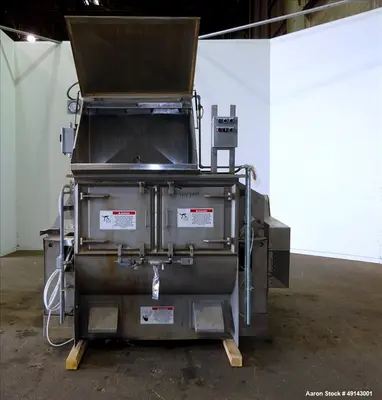

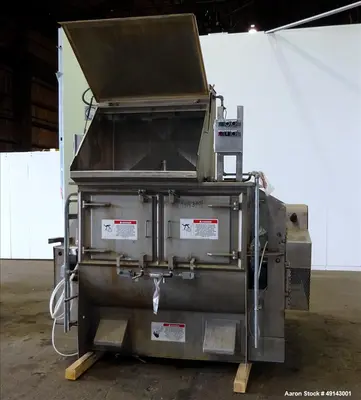

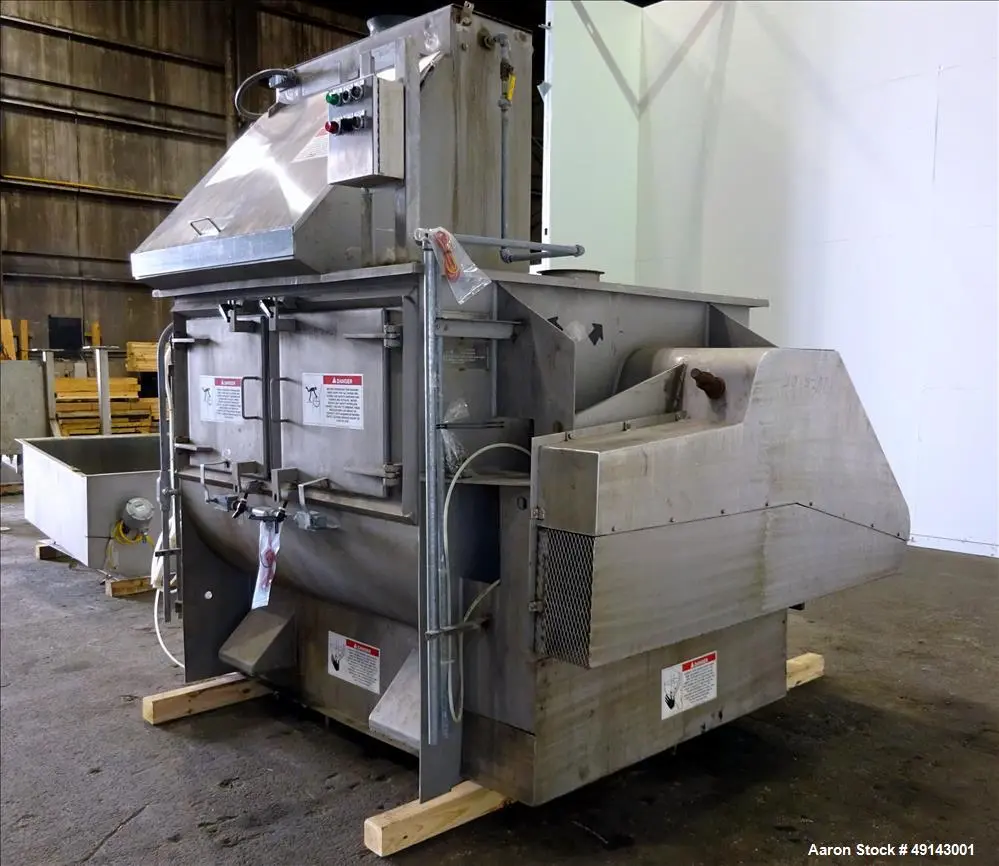

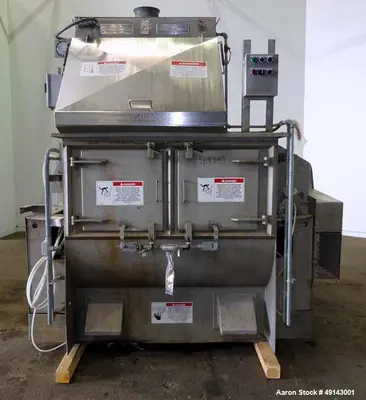

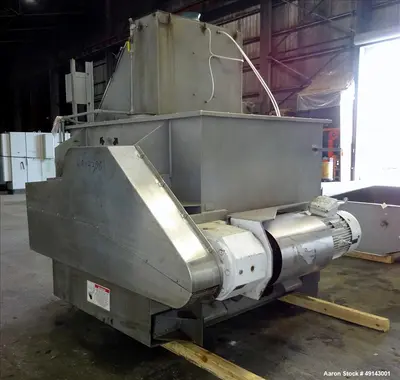

The American Process Systems Forberg FZM-35 Fluidized Zone Mixer is a high-efficiency, 35 cubic foot working capacity mixing system designed for thorough and rapid blending of dry powders, granules, and food ingredients. This 304 stainless steel unit provides uniform mixing through fluidization technology, making it a great alternative to traditional ribbon and paddle mixers.

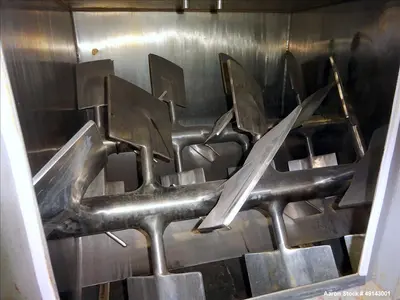

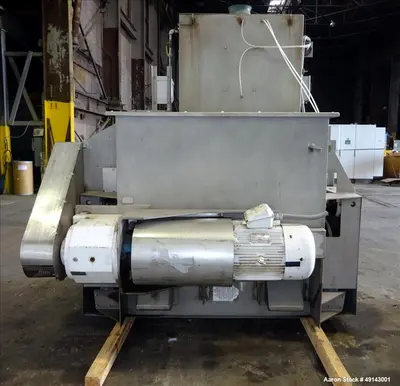

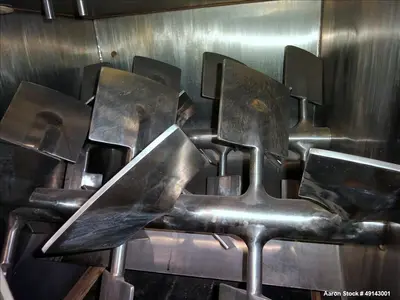

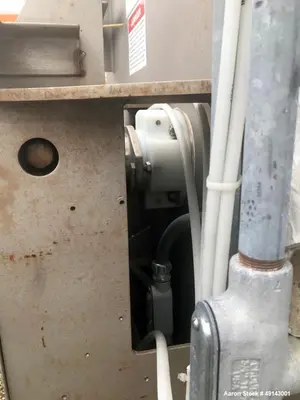

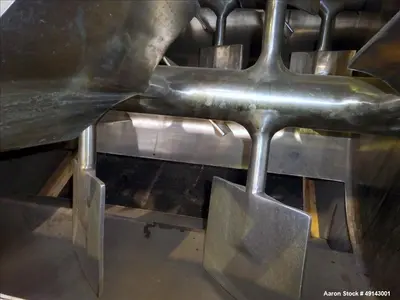

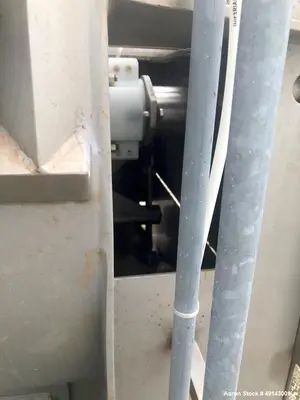

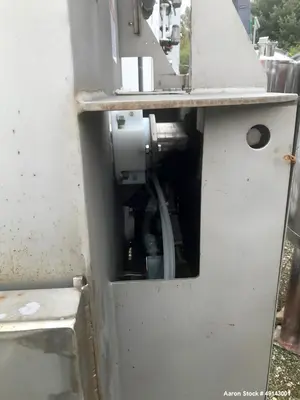

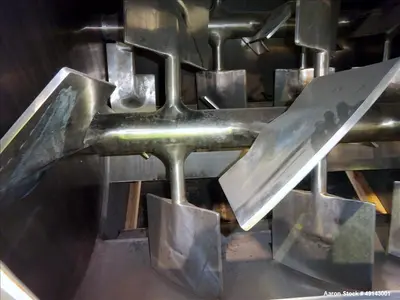

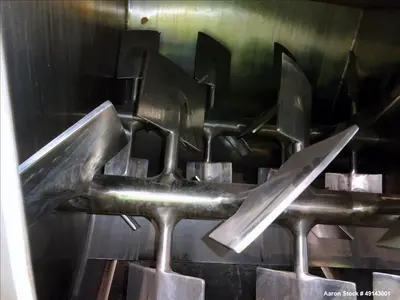

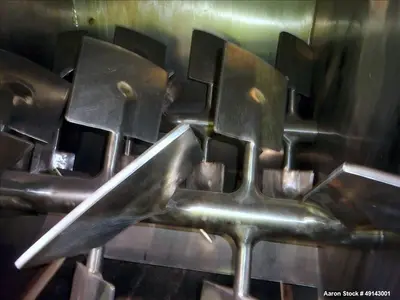

This unit features a non-jacketed chamber (58" L x 67" W) and dual 4" diameter mixing shafts, each equipped with 16 paddles (11-9/16" wide x 3/8" thick) welded to 1-1/2" diameter posts. It is powered by a 30 HP motor (1760 RPM, 3/60/208-230/460V) with a 30.05:1 gearbox ratio, delivering consistent and efficient mixing performance.

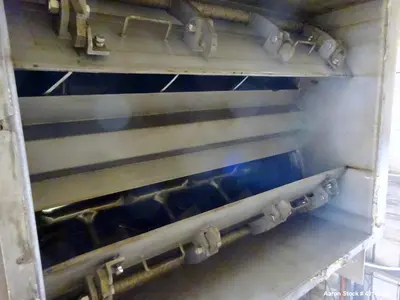

For easy product discharge, the mixer includes two 9" x 57" Bombay door-style outlets and two 20" x 20" side access doors for convenient cleaning and maintenance. It comes with a stainless steel stand and a Bag Dump Station, enhancing usability and process integration.
Previously used in cereal and food production, this high-speed, fluidized zone mixing system ensures superior blending consistency and reduced mixing times.
Specifications:

Working Capacity: 35 Cubic Feet

Construction Material: 304 Stainless Steel

Mixing Chamber Dimensions: 58" L x 67" W (Non-Jacketed)

Mixing System:

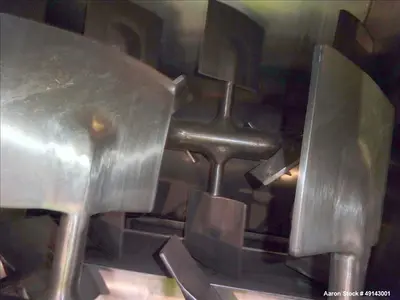

(2) 4" Diameter Shafts
(16) Paddles per Shaft (11-9/16" W x 3/8" Thick)
Welded to 1-1/2" Diameter Posts

Motor & Drive System:

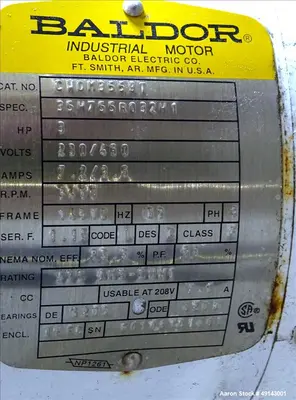

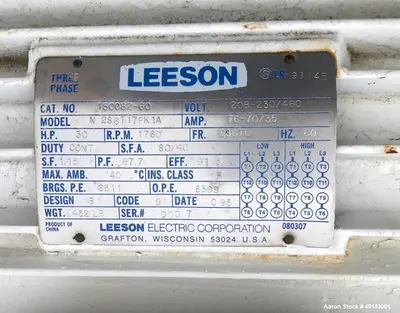

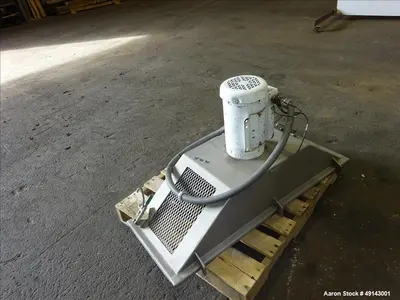

30 HP, 3/60/208-230/460V, 1760 RPM Motor
30.05:1 Gearbox Ratio

Access & Discharge:

(2) 20" x 20" Side Access Doors

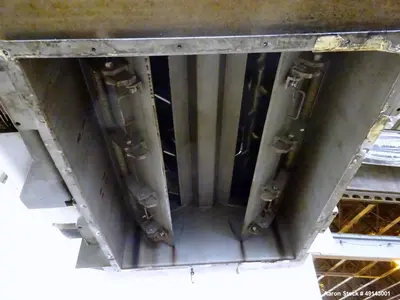

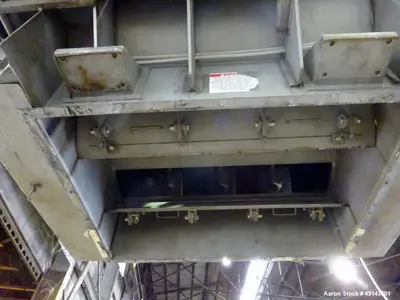

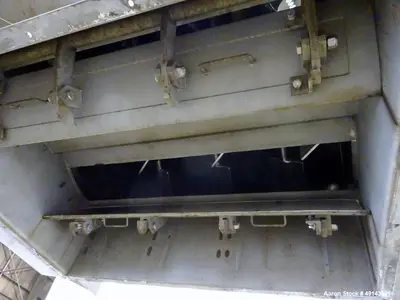

(2) 9" x 57" Bombay Door-Style Outlets

Included Accessories:

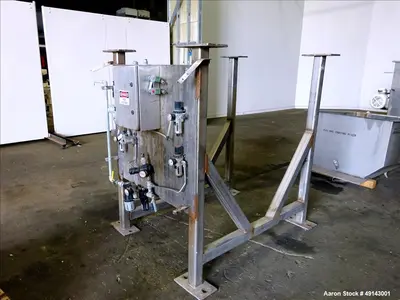

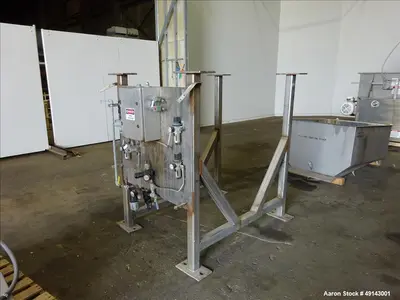

Stainless Steel Stand

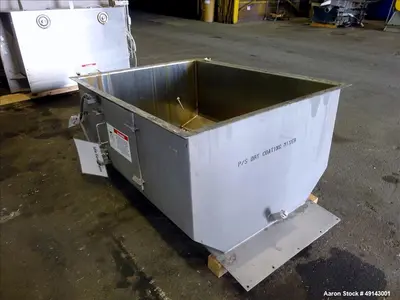

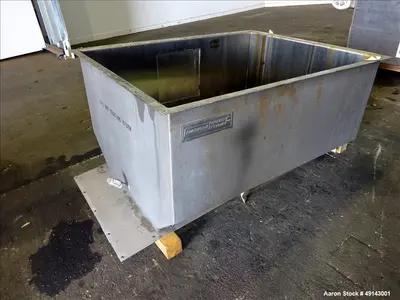

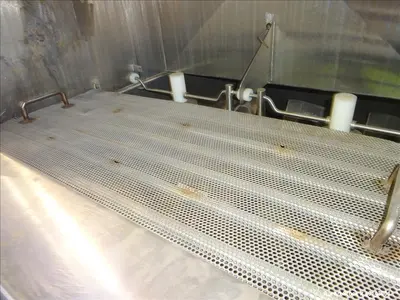

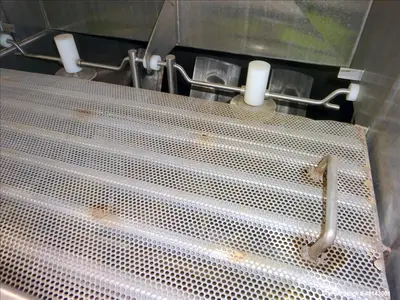

Bag Dump Station

Previous Application: Cereal / Food Product Mixing

Applications:

Food Processing: Cereal, spices, baking mixes, nutritional powders

Pharmaceutical & Nutraceutical: Powdered supplements, vitamin blends

Industrial & Chemical: Powder coatings, resins, plastic additives

Animal Feed & Agriculture: Grain mixing, pet food, specialty feed formulations

Common Product Uses:

High-speed fluidized zone mixing for uniform blending
Alternative to ribbon and paddle mixers for superior efficiency
Rapid, consistent blending of dry powders and granulated ingredients
Food-grade stainless steel mixer for bulk ingredient processing

Applications:
The Forberg FZM-35 Fluidized Zone Mixer is ideal for a variety of industries requiring precise, homogenous mixing of powders and granules, including:

Food & Beverage Processing
Nutraceuticals & Supplements
Chemical Manufacturing
Pharmaceutical Blending
Plastics & Polymers
Agricultural Products

Used For:

High-efficiency powder and granule blending
Homogeneous mixing of dry materials
Fast, fluidized mixing for delicate or cohesive powders
Batch processing in food, chemical, and pharmaceutical industries
Easy material loading and discharge with bag dump station and Bombay doors
