USED WERNER & PFLEIDERER UK17

Manufacturer Information:

Brand: Werner & Pfleiderer

Model: UK17

Type: Double Arm Mixer

Material: Stainless Steel Clad

Capacity: 200 Gallons

Description:

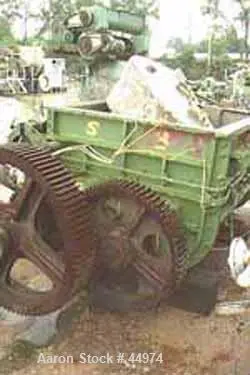

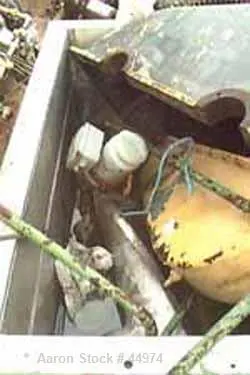

This used Werner & Pfleiderer UK17 double arm mixer is a high-capacity industrial mixing system, ideal for blending high-viscosity materials such as doughs, adhesives, pastes, and chemical compounds.
With a 200-gallon capacity, this unit features sigma tangential blades for thorough and uniform mixing. The jacketed bowl (bottom only) measures 43” front-back x 53” left-right x approximately 36” deep, allowing for precise temperature regulation during processing.
The mixer is geared at both ends and set up for hydraulic tilt, powered by a 7.5 HP, 220/440V, 1750 RPM motor. However, it does not include a base or drive, making it ideal for customization or integration into an existing production setup.
Specifications:

Model: UK17

Capacity: 200 Gallons

Material: Stainless Steel Clad

Bowl Dimensions: 43” F-B x 53” L-R x 36” D

Blades: Sigma Tangential Blades

Jacket: Bottom Only (For Temperature Control)

Geared: Both Ends

Tilt Mechanism: Set Up for Hydraulic Tilt (7.5 HP, 220/440V, 1750 RPM Motor)

Base & Drive: Not Included

Applications:

Food Processing – Large-scale dough mixing, pastes, and emulsions

Chemical Processing – Mixing adhesives, sealants, and industrial compounds

Pharmaceutical & Biotech – Homogenization of high-viscosity materials

Plastics & Polymers – Blending of resins, putties, and composite materials

Cosmetics & Personal Care – Thick lotions, balms, and emulsions

What Products Would This Be Used For?

Doughs, batters, and confectionery pastes
Pharmaceutical creams, gels, and ointments
Adhesives, sealants, and chemical formulations
Cosmetic creams, lotions, and personal care products
Polymer and resin blending
