USED TOSHIN TDS75-100MF

Manufacturer Information:

Brand: Toshin

Model: TDS75-100MF

Type: Double Arm Dispersion Mixer

Material: Stainless Steel

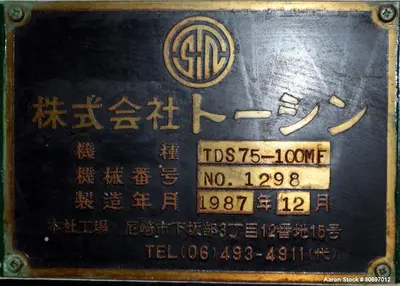

Serial #: 1298

Description:

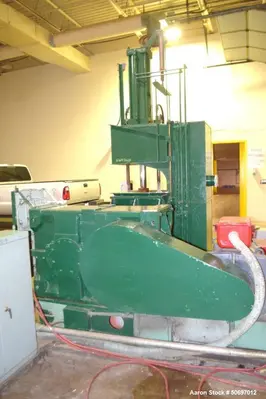

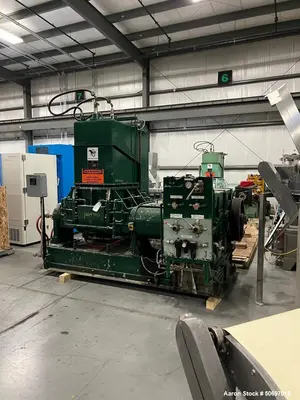

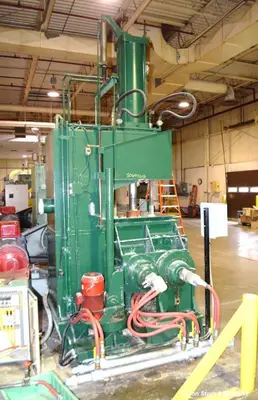

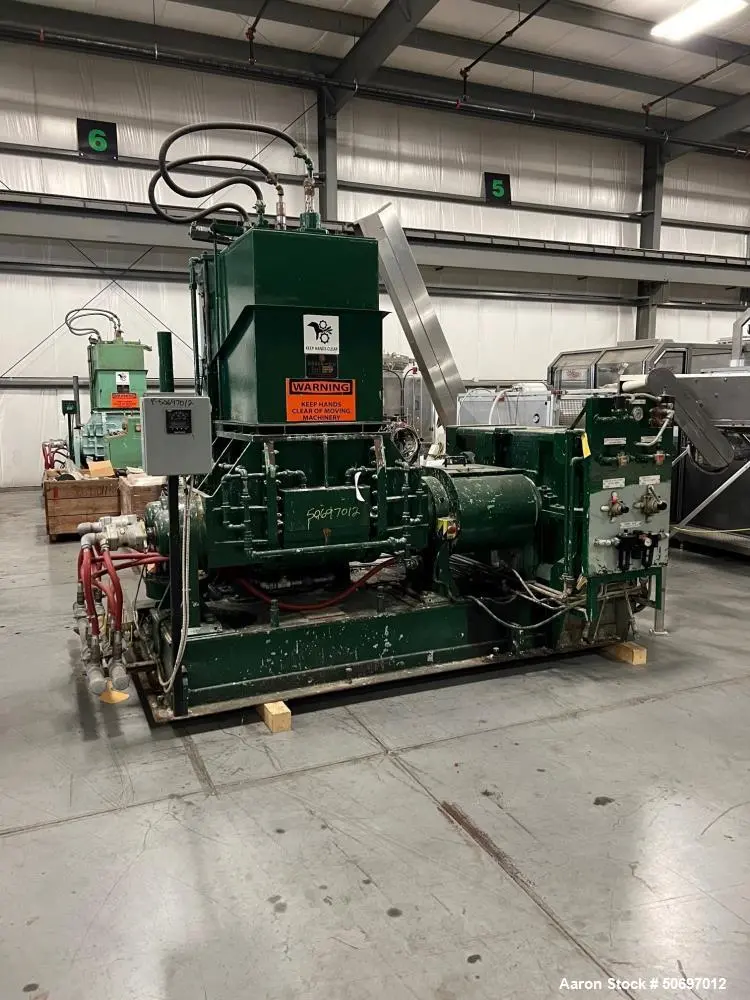

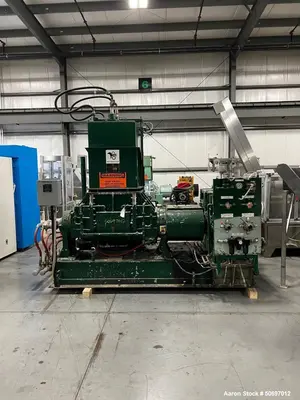

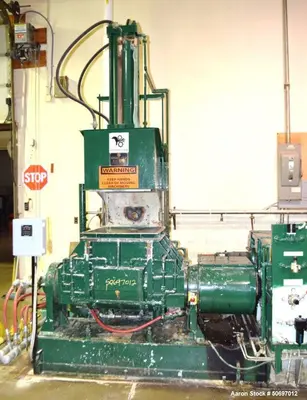

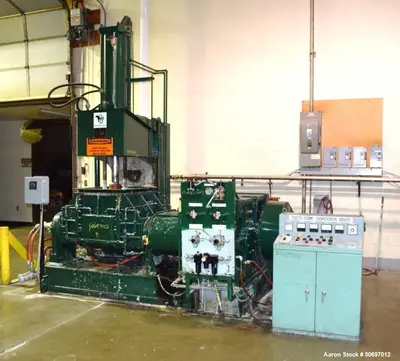

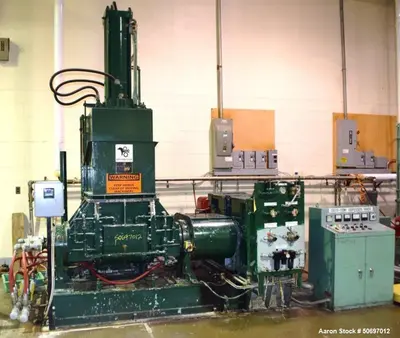

This used Toshin TDS75-100MF double arm dispersion mixer is a heavy-duty industrial mixing system, engineered for high-viscosity material blending, kneading, and dispersion in chemical, food, pharmaceutical, and industrial applications.
With a 75-liter (19.8-gallon) working capacity and a total capacity of 150 liters (39.6 gallons), this unit features a stainless steel jacketed bowl (22” L x 23” W x 20” D) rated for 213 PSI at 302°F, providing precise temperature control for heat-sensitive processes.

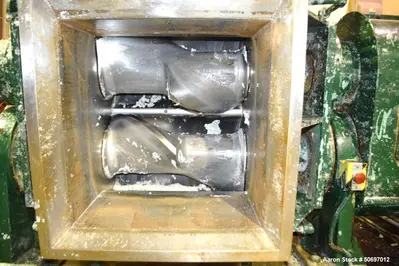

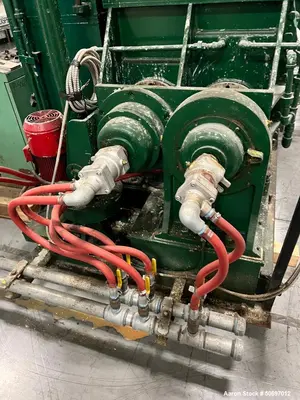

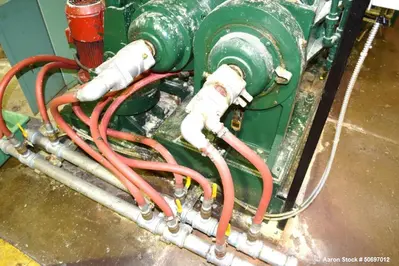

The cored masticator blades ensure high-efficiency mixing, with the front blade operating at 27 RPM and the rear blade at 23 RPM, both geared at one end. It is equipped with a top air-operated pressure cap and an air-operated dust hood, allowing for sealed and controlled processing.
The mixer includes a motorized bowl screw tilt mechanism powered by a 2.2 kW motor, making it easy to discharge processed materials. Driven by a powerful 75 kW (100 HP), 3/60/480V motor at 1760 RPM, it operates through a reducer with a 20.272:1 ratio, ensuring high torque output for demanding applications.

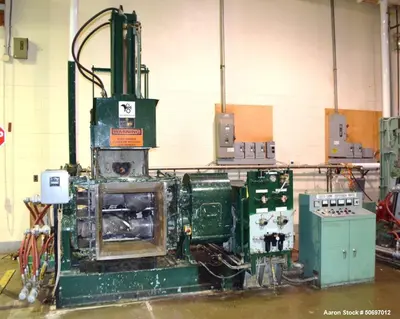

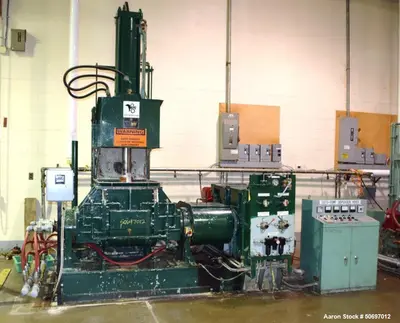

Additionally, the unit comes with a fully integrated operator panel and control panel, allowing for precise speed, pressure, and tilt control. The system is mounted on a stable base, ensuring durability and reliability in industrial environments.
Specifications:

Model: TDS75-100MF

Working Capacity: 75 Liters (19.8 Gallons)

Total Capacity: 150 Liters (39.6 Gallons)

Material: Stainless Steel

Bowl Dimensions: 22” L x 23” W x 20” D (Jacketed)

Jacket Rating: 213 PSI at 302°F

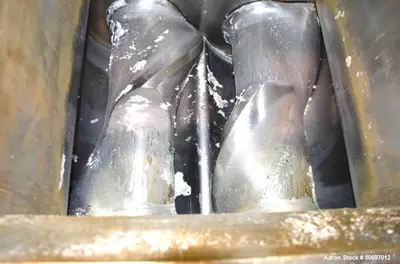

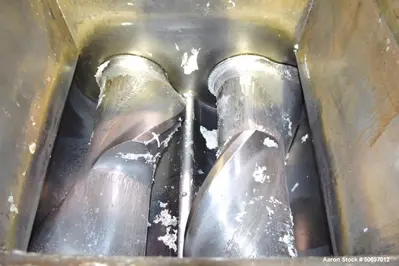

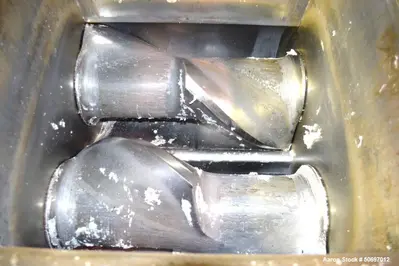

Blades: Cored Masticator Blades

Blade Speeds:

Front Blade: 27 RPM

Rear Blade: 23 RPM

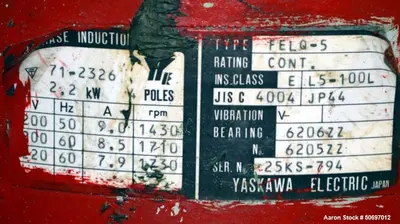

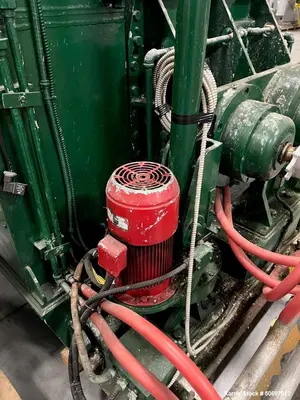

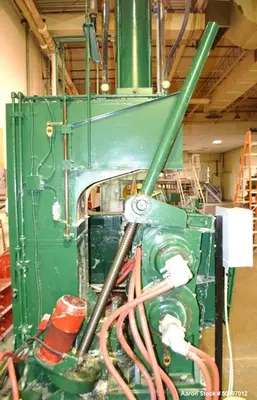

Tilt Mechanism: Motorized Bowl Screw Tilt (2.2 kW Motor)

Lid Features:

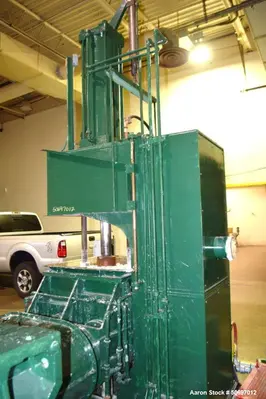

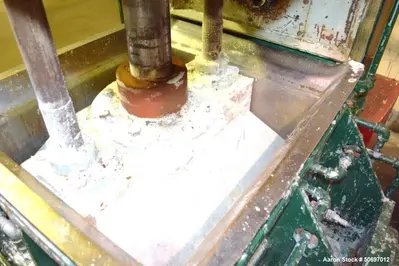

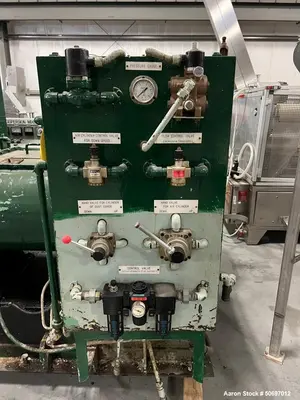

Air-Operated Pressure Cap

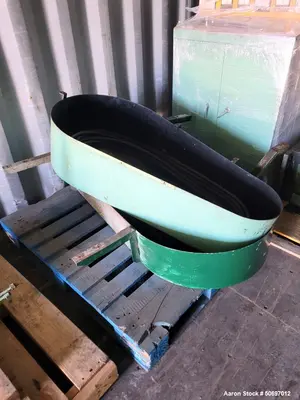

Air-Operated Dust Hood

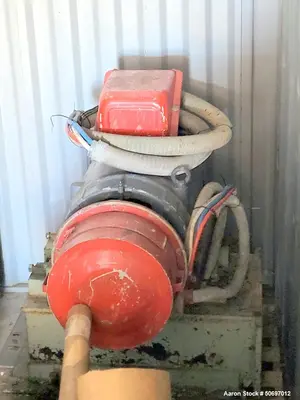

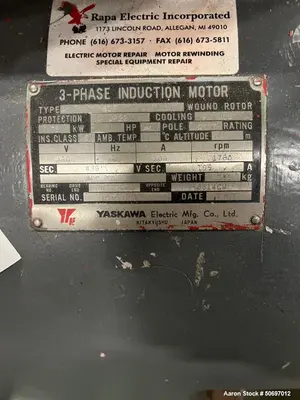

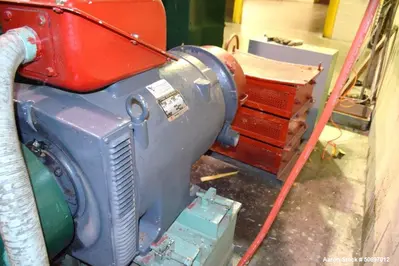

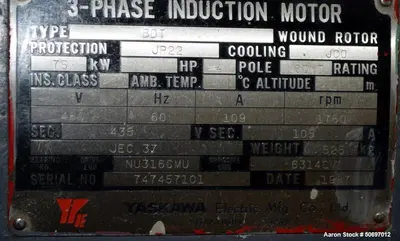

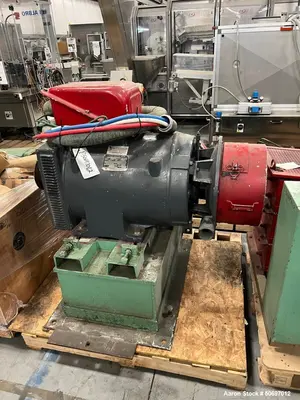

Mixer Motor: 75 kW (100 HP), 3/60/480V, 1760 RPM

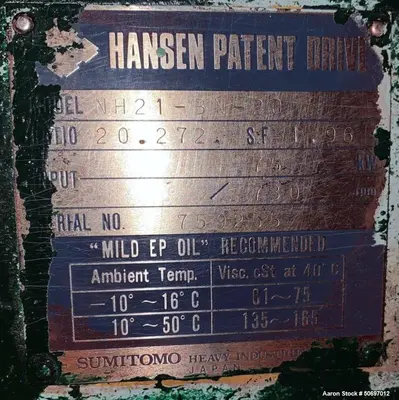

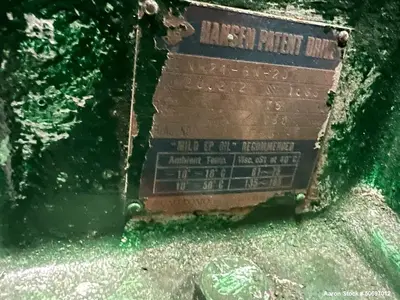

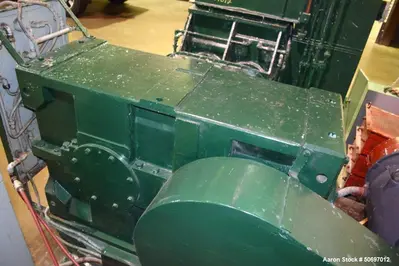

Reducer Ratio: 20.272:1

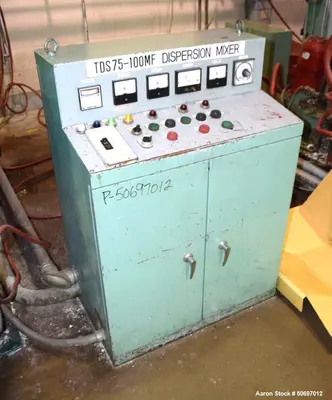

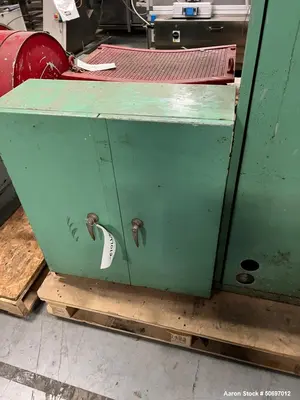

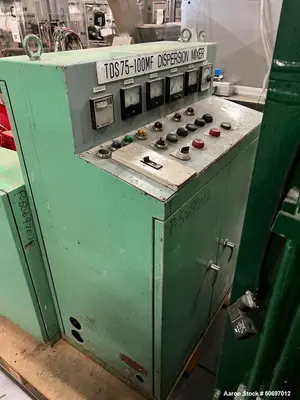

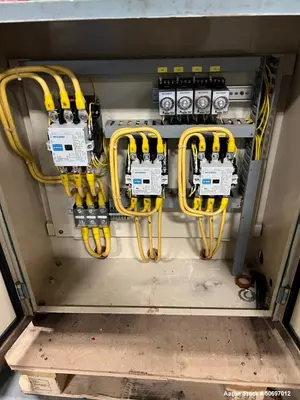

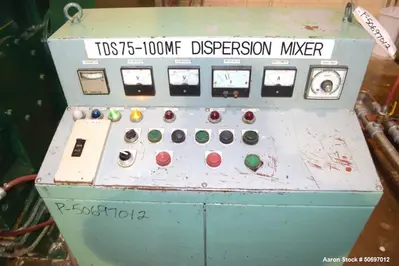

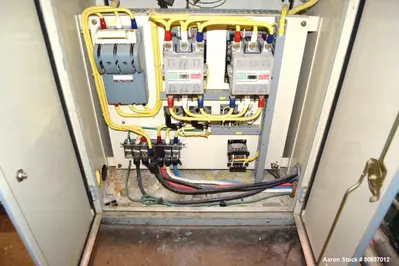

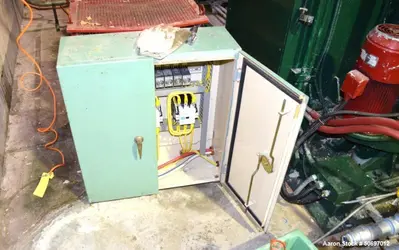

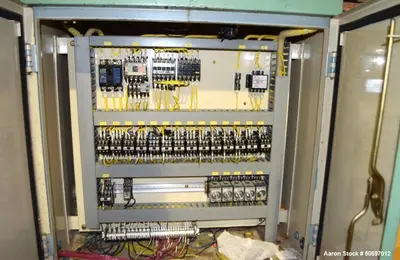

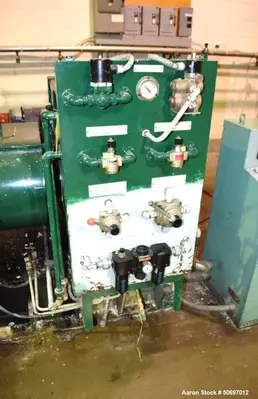

Controls: Operator Panel & Control Panel

Mounting: Base Mounted

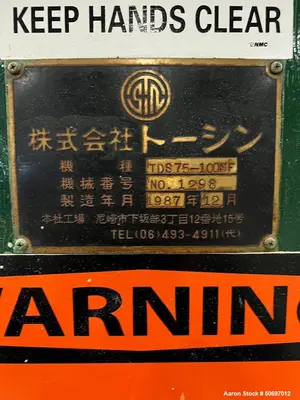

Serial #: 1298

Applications:

Chemical Processing – High-viscosity adhesives, sealants, and coatings

Food Processing – Thick pastes, doughs, and emulsions

Pharmaceutical & Biotech – Creams, ointments, and high-density formulations

Plastics & Polymers – Mixing of resins, putties, and composite materials

Cosmetics & Personal Care – Skincare formulations, balms, and emulsions

What Products Would This Be Used For?

High-viscosity adhesives, resins, and sealants
Pharmaceutical creams, gels, and ointments
Industrial coatings, pigments, and dispersions
Confectionery pastes, doughs, and food emulsions
Cosmetic lotions, balms, and personal care products
Chewing Gum
