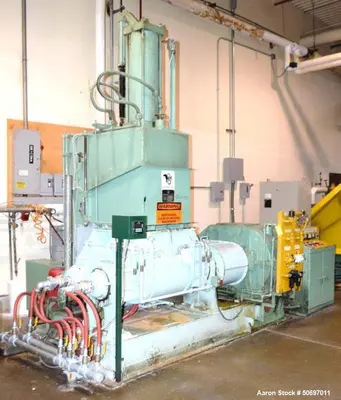

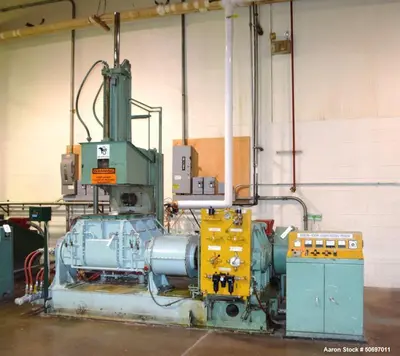

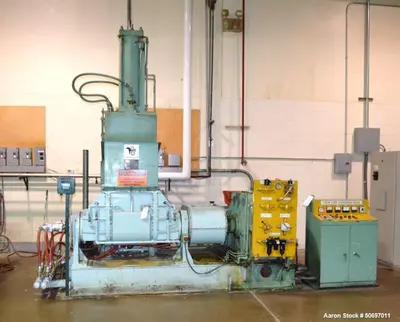

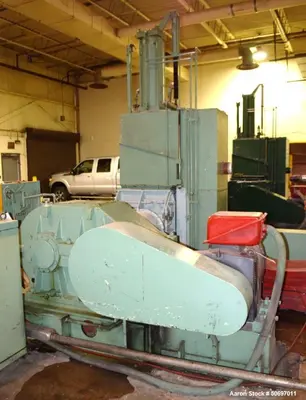

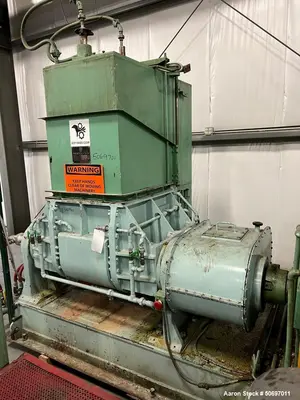

USED TOSHIN TDS75-100

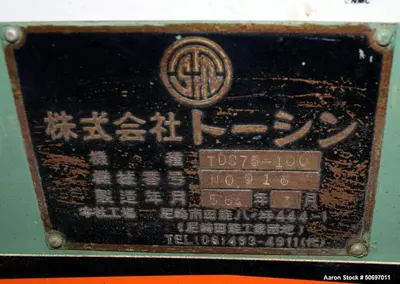

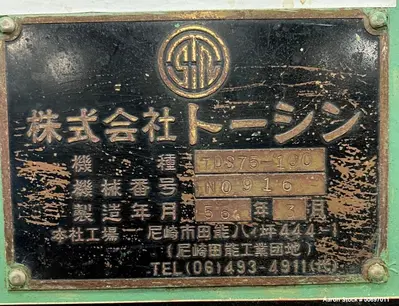

Manufacturer Information:

Brand: Toshin

Model: TDS75-100MF

Type: Double Arm Dispersion Mixer

Material: Stainless Steel

Serial #: 916

Description:

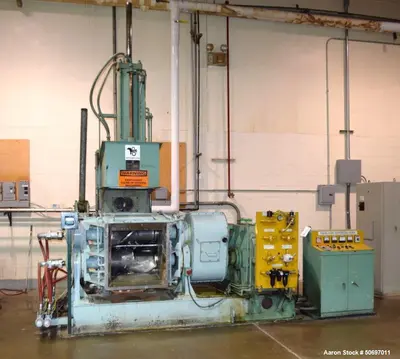

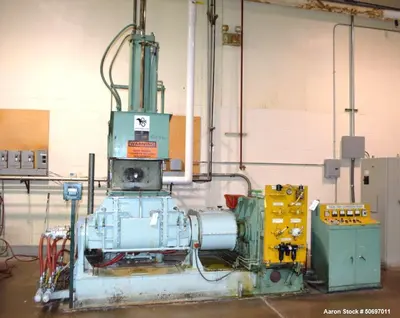

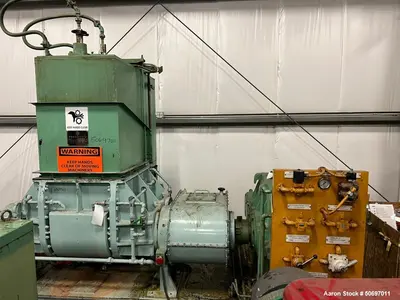

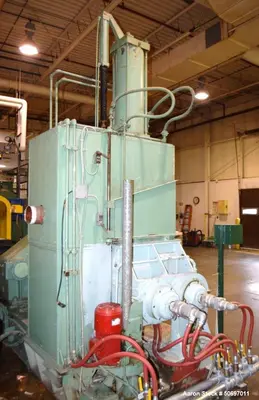

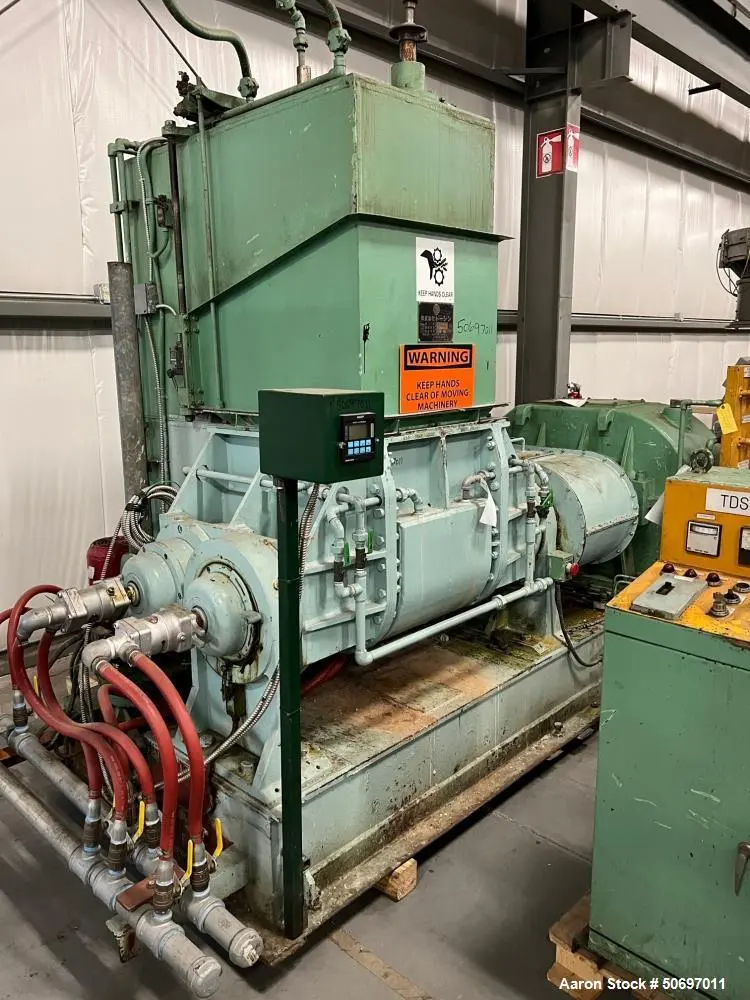

This used Toshin TDS75-100MF double arm dispersion mixer is a high-performance industrial mixing system, designed for heavy-duty dispersion, kneading, and blending of high-viscosity materials in chemical, food, pharmaceutical, and industrial applications.

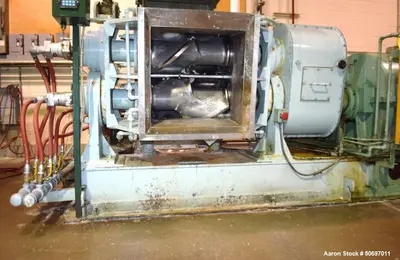

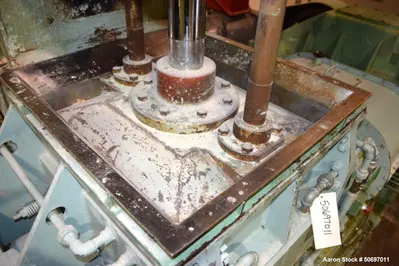

With a working capacity of 75 liters (19.8 gallons) and a total capacity of 150 liters (39.6 gallons), this mixer features a jacketed stainless steel bowl (22” L x 23” W x 20” D), rated for up to 213 PSI at 302°F, ensuring precise temperature control for heat-sensitive materials.

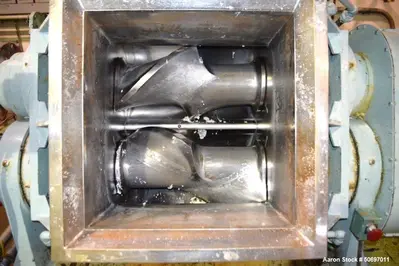

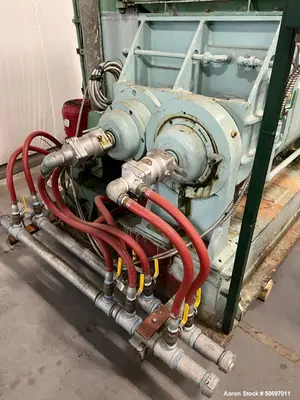

Equipped with cored masticator blades, the front rotor runs at 27 RPM, while the rear rotor operates at 23 RPM, ensuring efficient and uniform mixing. The unit is geared on one end and features an air-operated pressure cap and air-operated dust hood for sealed mixing applications.

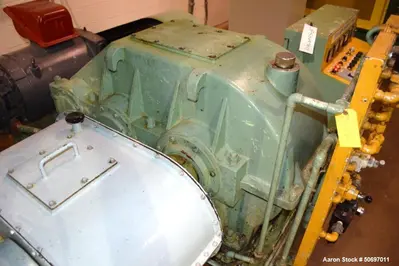

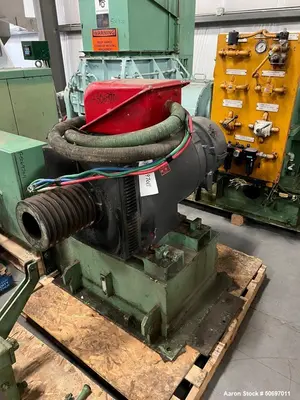

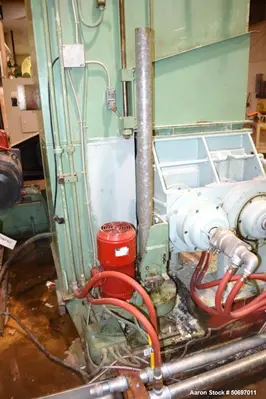

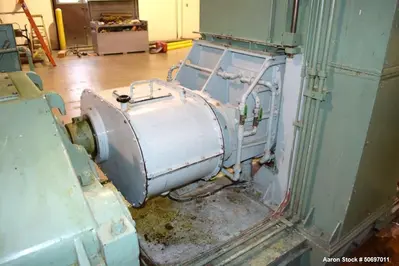

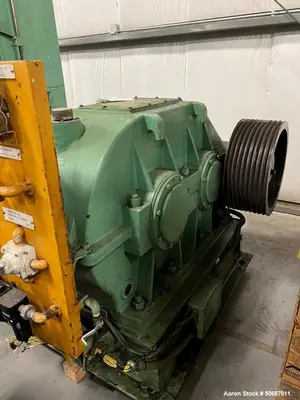

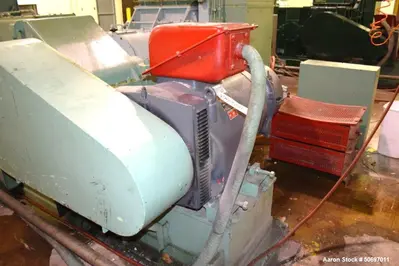

The mixer includes a motorized bowl screw tilt mechanism powered by a 2.2 kW motor, allowing for easy discharge of mixed materials. It is driven by a powerful 75 kW (100 HP), 3/60/480V, 1760 RPM motor through a reducer (no ratio specified), ensuring high-torque mixing for dense, high-viscosity materials.

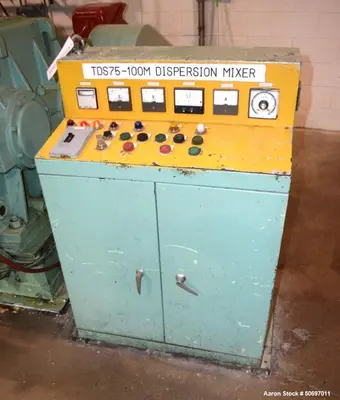

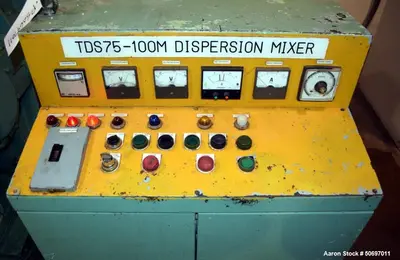

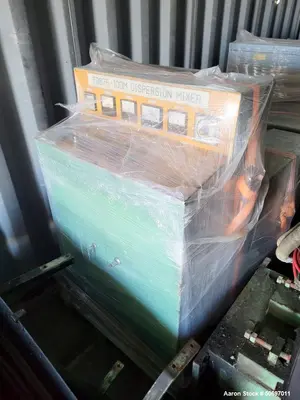

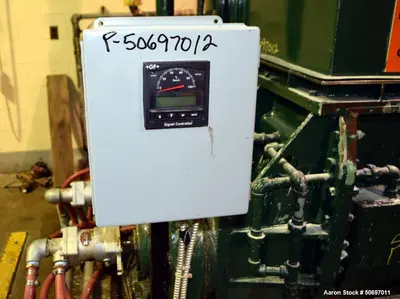

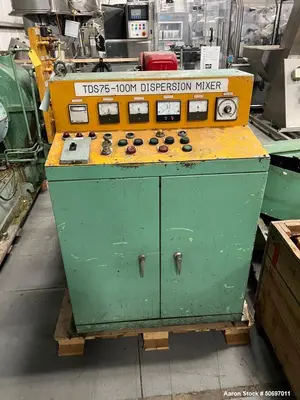

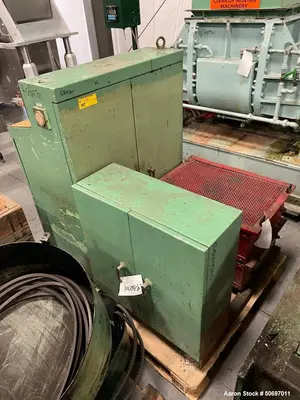

The unit also includes an operator panel and control panel, providing precise control over mixing parameters. Mounted on a durable base, this mixer is built for long-term industrial use.
Specifications:

Model: TDS75-100MF

Working Capacity: 75 Liters (19.8 Gallons)

Total Capacity: 150 Liters (39.6 Gallons)

Material: Stainless Steel

Bowl Dimensions: 22” L x 23” W x 20” D (Jacketed)

Jacket Rating: 213 PSI at 302°F

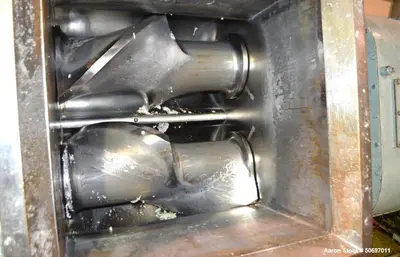

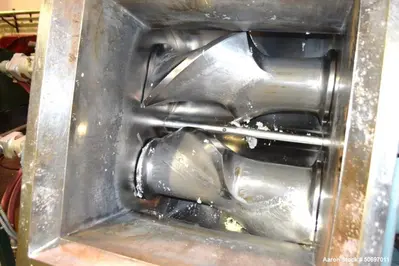

Blades: Cored Masticator Blades

Blade Speeds:

Front Rotor: 27 RPM

Rear Rotor: 23 RPM

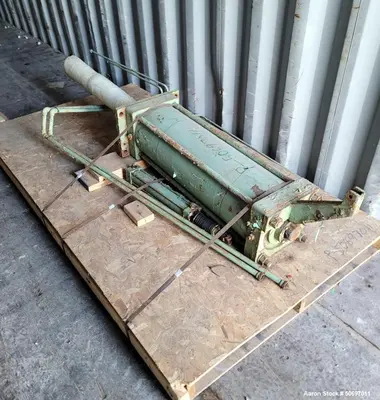

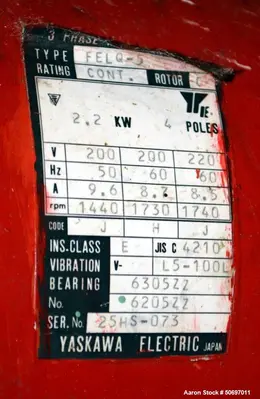

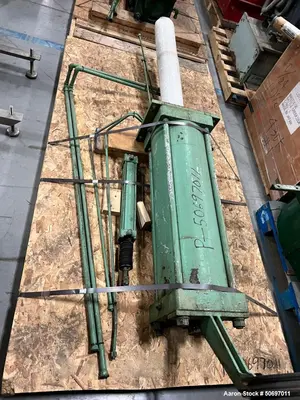

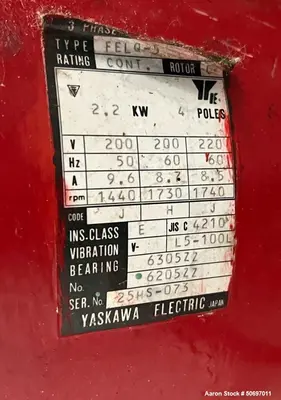

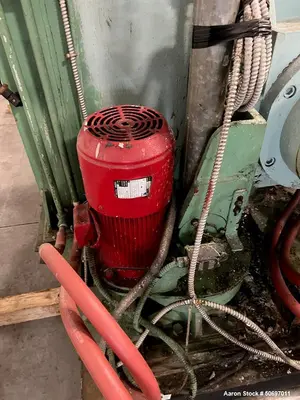

Tilt Mechanism: Motorized Bowl Screw Tilt (2.2 kW Motor)

Lid Features:

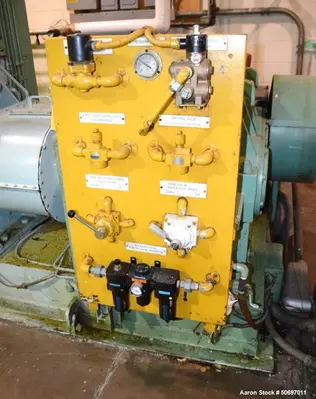

Air-Operated Pressure Cap
Air-Operated Dust Hood

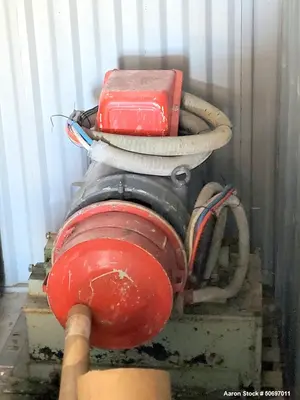

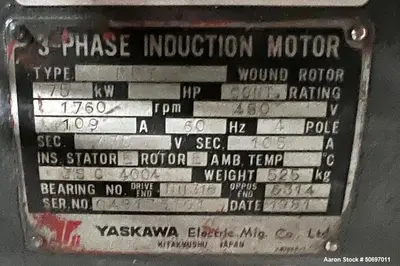

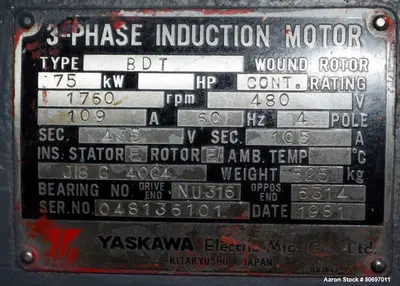

Mixer Motor: 75 kW (100 HP), 3/60/480V, 1760 RPM (through reducer, no ratio)

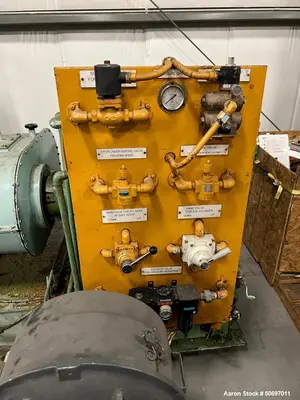

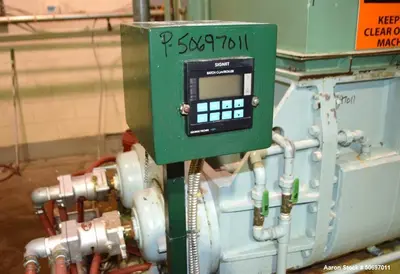

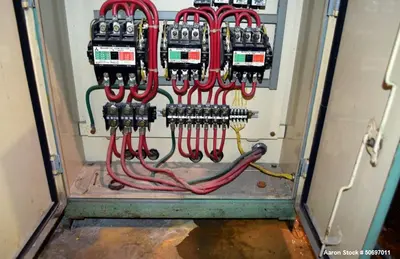

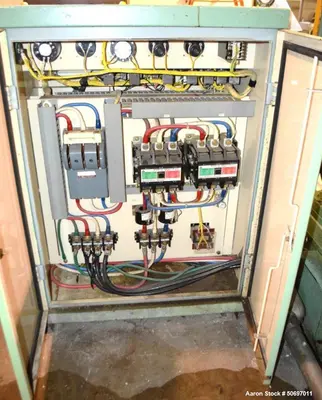

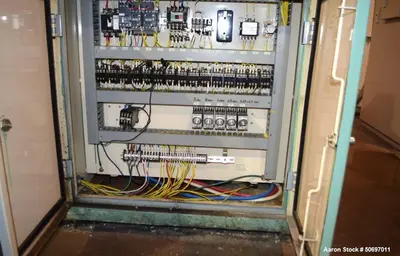

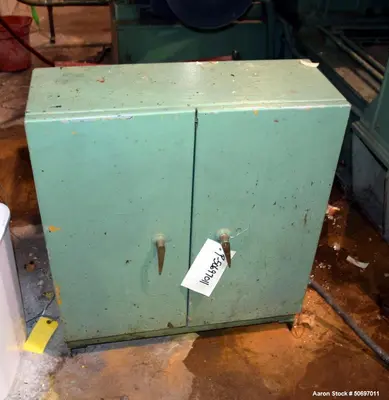

Controls: Operator Panel & Control Panel

Mounting: Base Mounted

Serial #: 916

Applications:

Chemical Processing – High-viscosity adhesives, sealants, and reaction compounds

Food Processing – Thick pastes, doughs, and emulsions

Pharmaceutical & Biotech – Creams, ointments, and high-density formulations

Plastics & Polymers – Mixing of resins, putties, and composite materials

Cosmetics & Personal Care – Skincare formulations, balms, and emulsions

What Products Would This Be Used For?

High-viscosity adhesives, resins, and sealants
Pharmaceutical creams, gels, and ointments
Industrial coatings, pigments, and dispersions
Confectionery pastes, doughs, and food emulsions
Cosmetic lotions, balms, and personal care products
Chewing Gum
