USED AARON PROCESS LNG-1

Manufacturer Info:

Manufacturer: Aaron Process

Model: LNG-1

Condition: Used

Construction: 304 Stainless Steel

Description:

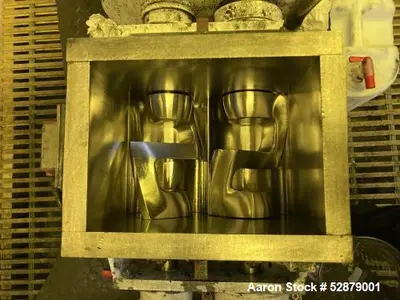

This used Aaron Process 1-gallon sigma blade mixer, model LNG-1, is a lab-scale kneader/mixer designed for heavy-duty mixing and blending of viscous materials such as doughs, polymers, adhesives, or pastes. The 304 stainless steel bowl measures 7" W x 9-3/8" L x 8-3/4" D, with a vacuum-rated chamber and jacketed body for precise thermal control up to 14.7 psig at 400°F.
Equipped with a manual tilt handle, this unit allows for easy product discharge, and includes a top cover with two 2" sight glasses for viewing and sampling during mixing. Driven by a 2 HP DC motor, this machine delivers controlled mixing power through a 25:1 gearbox, providing high torque at low RPMs. A control panel with digital speed control, start/stop, and emergency stop (E-Stop) is included for safe, user-friendly operation.

Specifications:

Model: LNG-1

Bowl Capacity: 1 gallon

Bowl Dimensions: 7" W x 9-3/8" L x 8-3/4" D

Material: 304 Stainless Steel

Vacuum Rated: Yes

Jacket Rating: 14.7 psig @ 400°F

Top Cover: With (2) 2" sight glasses

Tilt: Manual tilt with handle

Motor:

2 HP DC

180 Volt

1750 RPM

9.4 Amps

TEFC (Totally Enclosed Fan Cooled)

Gearbox Ratio: 25:1

Control Panel:

Speed control with digital readout

Start/Stop

Emergency Stop (E-Stop)

Applications:

Adhesives and sealants

Ceramic or metal pastes

Polymer and plastic compounds

Battery slurries

Pigment and dye dispersions

Food and confectionery blends

Lab-scale compounding and R&D

Resin and epoxy mixing

Viscous pharmaceutical products

Rubber, gum, and synthetic formulations

What might this be used for?:
This mixer is perfect for labs, pilot plants, and R&D facilities working with high-viscosity materials in controlled environments. Its vacuum capability, jacketed heating/cooling, and powerful sigma blade action make it ideal for small-batch processing, formulation trials, or specialty production in chemical, food, or pharmaceutical sectors.
